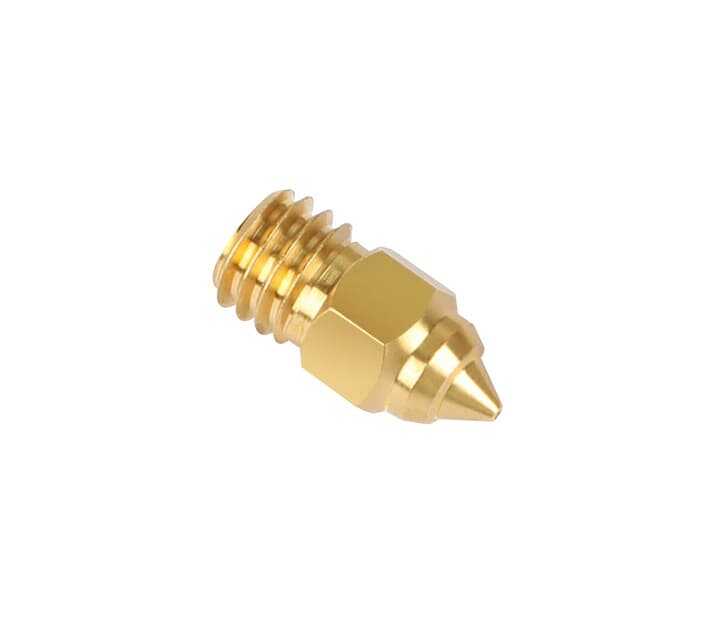

0.8mm MK Nozzle Set (5 PCS)

Brand
Creality 3D
Product Code
20631
Fiyat
: 150.34 TL + VAT
KDV Dahil Fiyat
: 180.41 TL

0.8mm MK Nozzle Set (5 PCS)

The nozzle is the part that directly affects the quality of your 3D prints. The nozzle's contact surface is smooth and flat, effectively solving the problem of material leakage. Thermal conductivity is important to ensure constant and stable nozzle temperature during printing. This improves print speed and print quality. In 3D printing, the material type, maximum printing temperature, thermal conductivity and thermal expansion coefficient of the nozzle are also very important.



0.8mm MK Nozzle Technical Specifications:

  • Material Type: Brass
  • Maximum Printing Temperature: 300°C
  • Inlet Diameter: 1.75mm
  • Output Diameter: 8mm
  • Thread Outer Diameter: M6
  • Thread Length: 13mm
  • Quantity: 5



Why is the nozzle clogged?

Usually, users make mistakes while changing the raw material (filament), and because of this error, nozzle clogging occurs. The heat settings are changed when passing from an ABS filament to a PLA filament. However, some ABS filament remaining inside cannot keep up with that heat and the flow is interrupted. This causes congestion.

What are ABS and PLA filament grades?

It is very suitable for the table temperature of PLA filament between 200 and 220°C, and the nozzle between 50 and 70°C. ABS is used between 240 and 270°C, and if the nozzle temperature is between 80 and 110°C, the table temperature is used.



0.8mm MK Nozzle Package Contents:

  • 1 x 0.8mm MK Nozzle Set (5 PCS)
