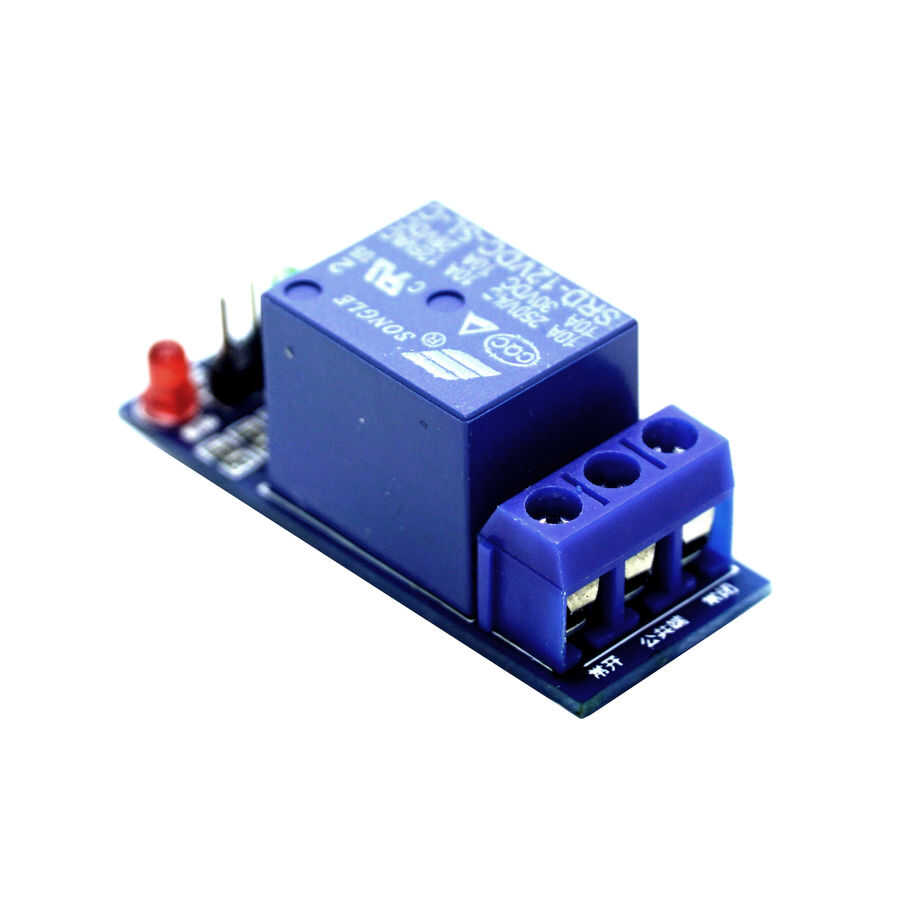

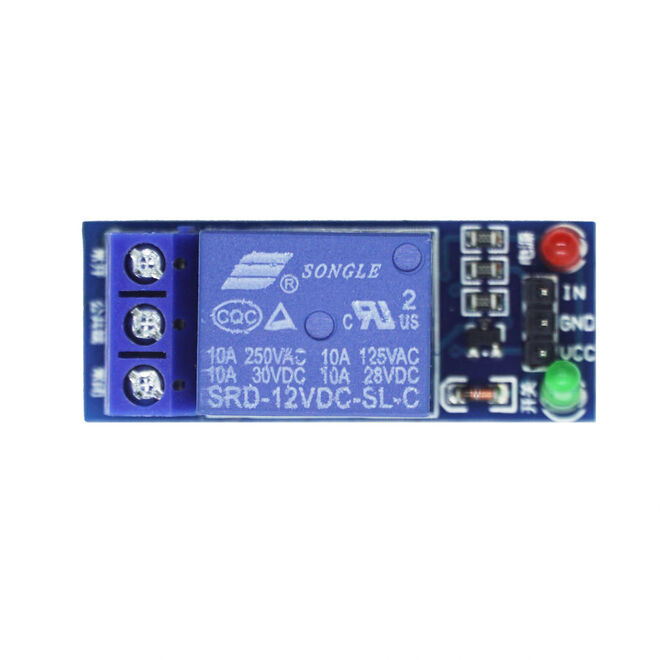

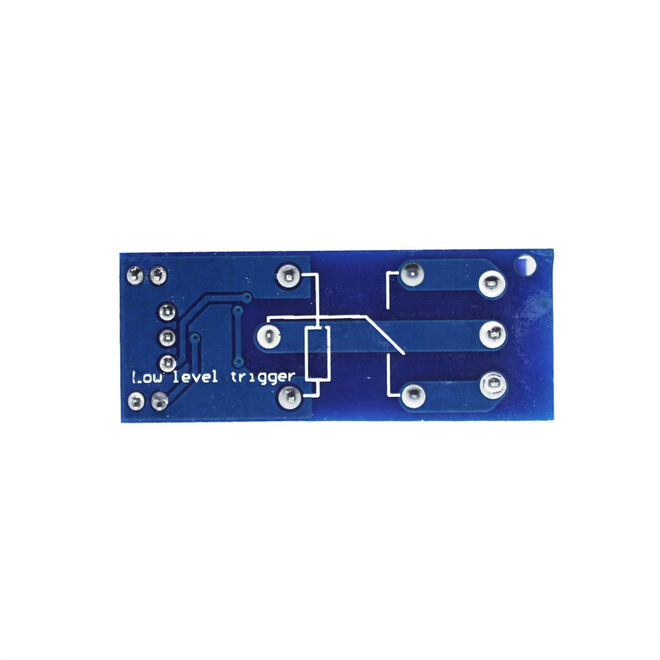

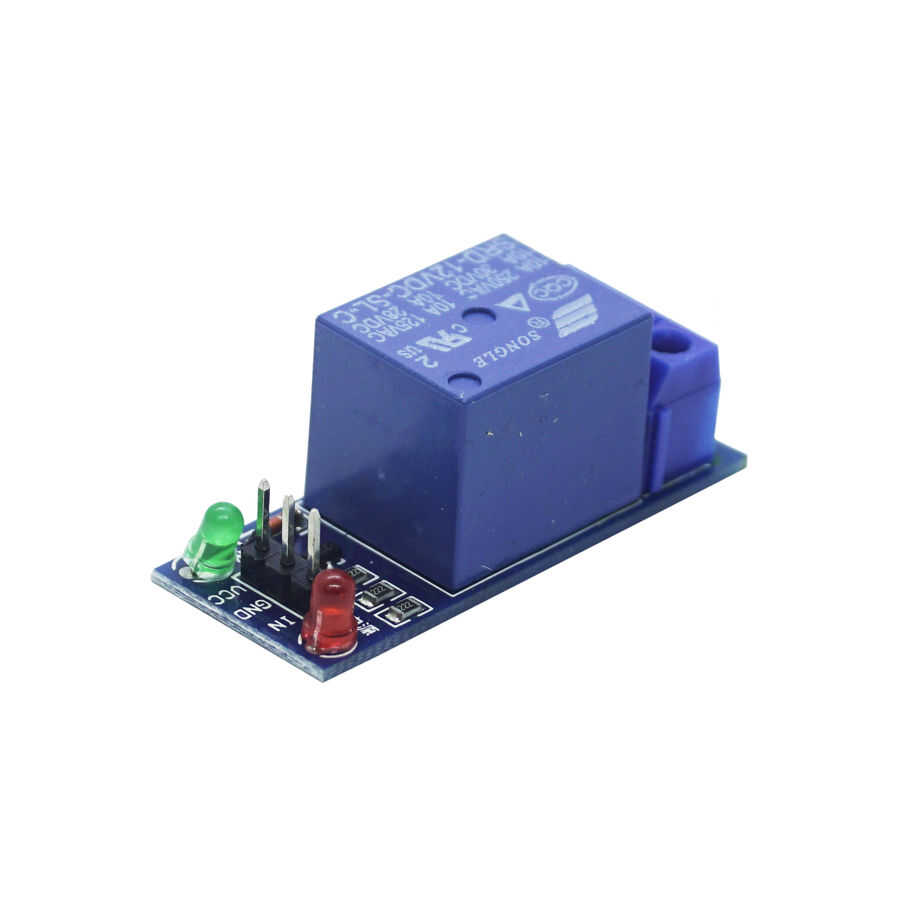

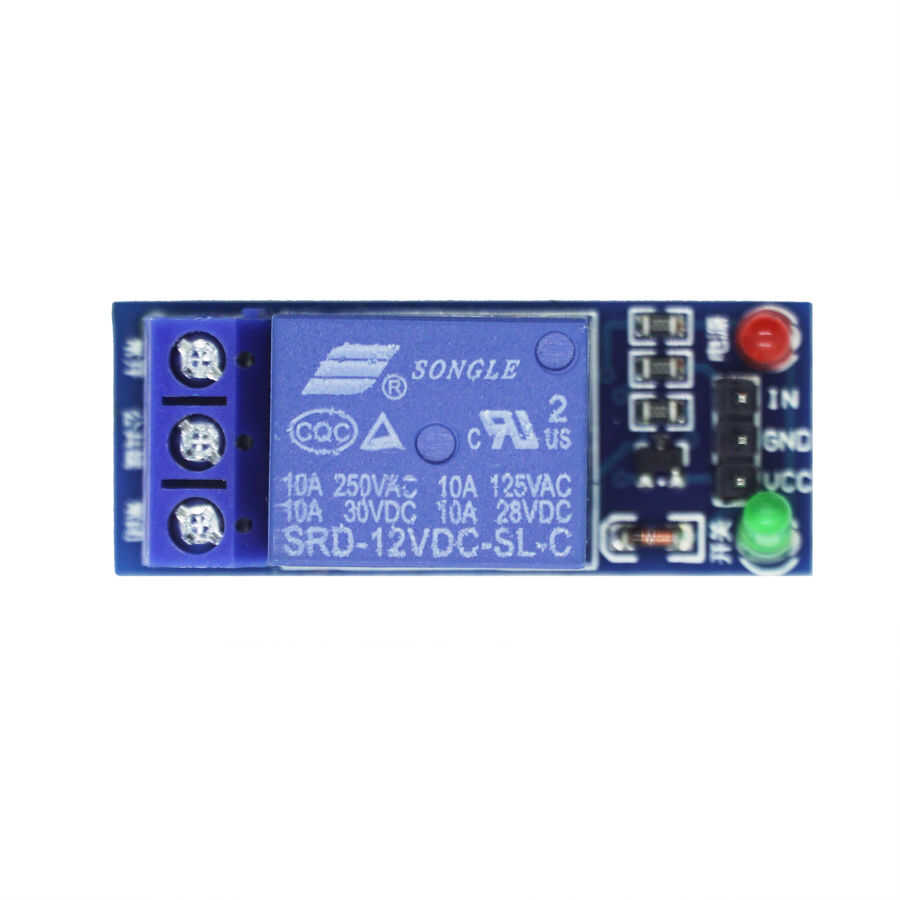

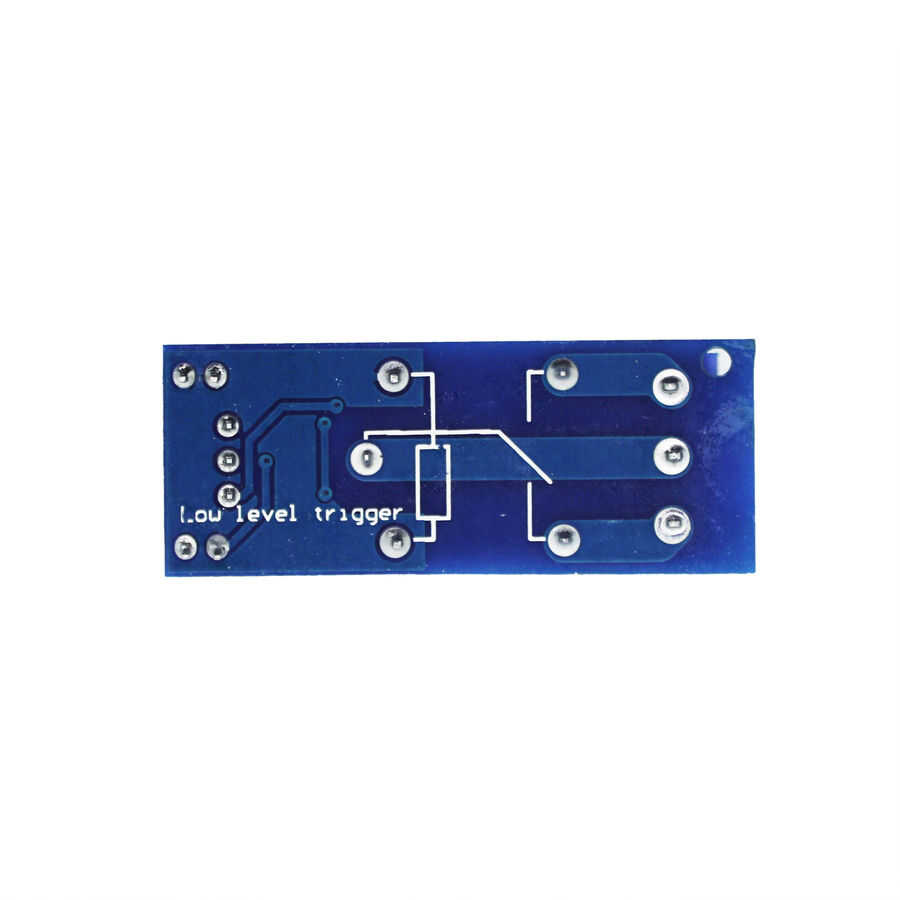

1 Channel 12 V Relay Board - Low Level Trigger

1 Channel 12V Relay Board - Low Level Trigger

1 Channel 12V Relay Board - Low Level Trigger, It is a relay card that has the ability to control high voltages together with 5VDC voltage. With this relay card, you can easily switch AC and DC currents, and you can easily see the supply and signal conditions on the card thanks to the two indicator LEDs on it. You can also adjust the status of the relay card thanks to the signal you will apply. You can easily use it with development boards such as Arduino Uno. You can easily use a lamp, motor, fan and in an application that requires high voltage or current.

1 Channel 12V Relay Board - Low Level Trigger Features;

• Dimension: 41 x 16 x 16 mm
• Weight: 12g
• Supply Voltage: 5V
• Coil driving current: 20mA
• Maximum switching voltage: 250VAC / 30VDC
• Switching time: 10 ms
• Low Level Trigger
• Operating temperature: -25°C ~ 70°C
