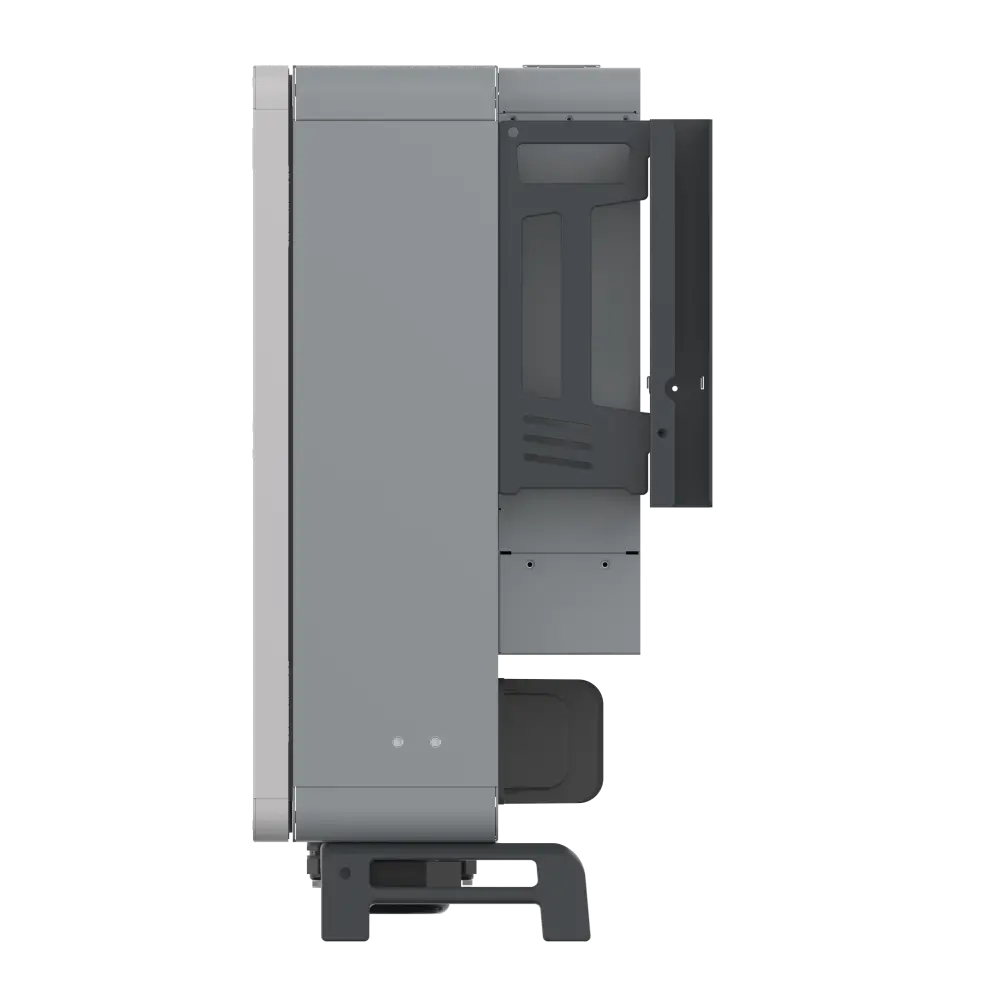

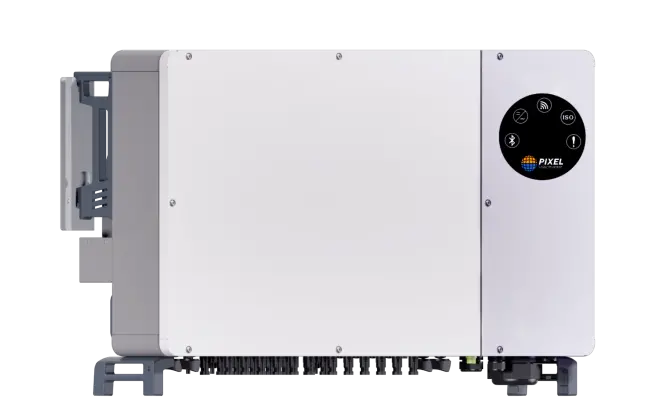

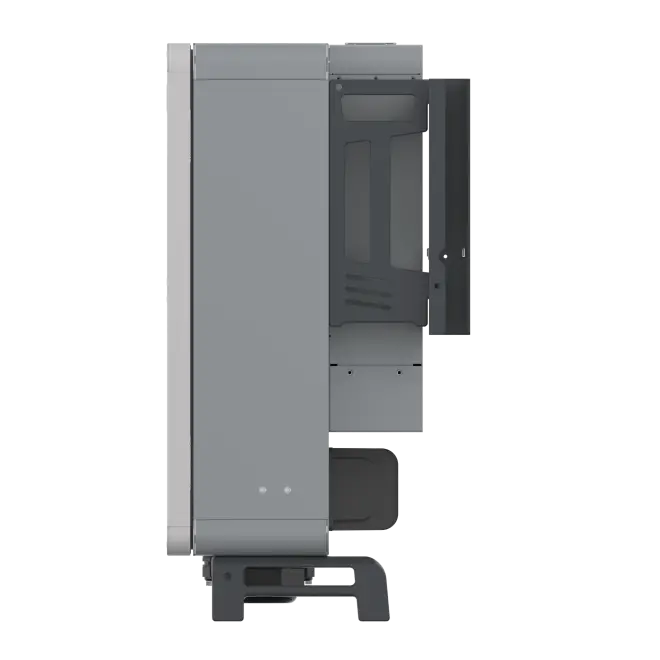

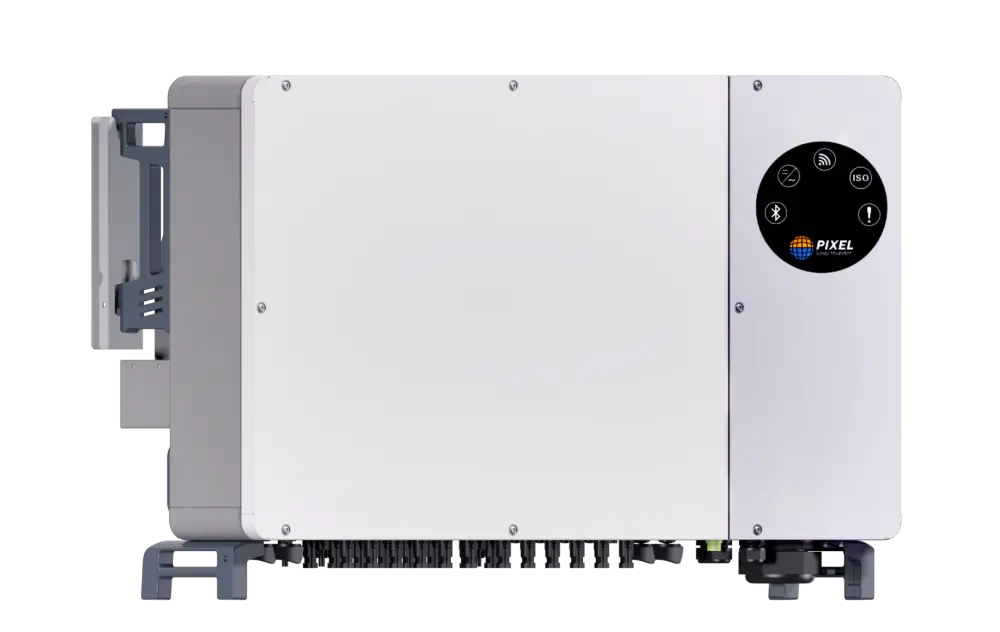

125KW Pixel Solar Inverter On Grid Three Phase Model PXL-125KM12T

Pixel Solar Inverter 125 kW Three Phase On-grid model is designed for your large-scale solar energy projects. With its high capacity and reliable performance, this inverter provides an ideal solution for sustainable energy production.

With 125kVA nominal AC output power, it offers a large energy production capacity. It achieves maximum efficiency rates of 98.70% and European Efficiency of 98.30%, ensuring the most effective use of energy. It features 10 MPPT inputs and the ability to connect 2 strings per input, allowing for maximum energy harvesting from solar panels. Comprehensive protection features include DC switch, output overcurrent protection, anti-islanding protection, DC reverse polarity protection, string fault detection, DC/AC overvoltage protection (Type II), leakage current protection, AC short circuit protection, and arc protection.

Featuring transformerless topology, low THDi value, and durable IP66 protection rating, it offers an environmentally friendly energy solution. With a 320-480V AC operating range, it adapts to varying grid conditions. It provides remote monitoring and control options with LCD display and communication options such as RS485, Wi-Fi, 4G. Equipped with fan cooling, wide temperature range (-25C-+60C), maximum operating altitude of up to 4000m, and non-condensing 100% maximum operating humidity, it delivers durable and reliable performance.

NOTE: Products will be manufactured on order, delivery within 20 days.
