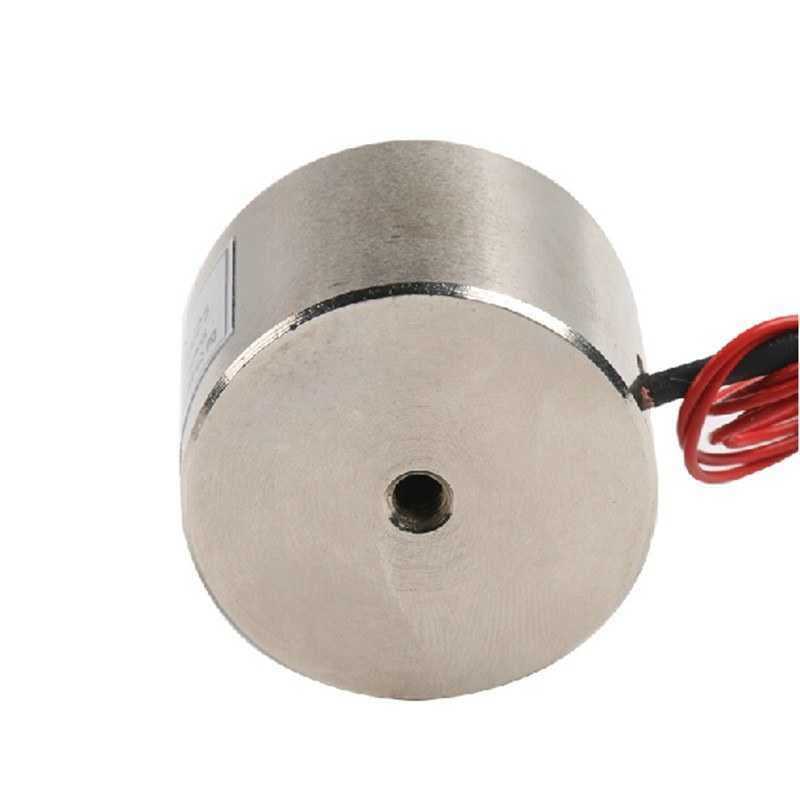

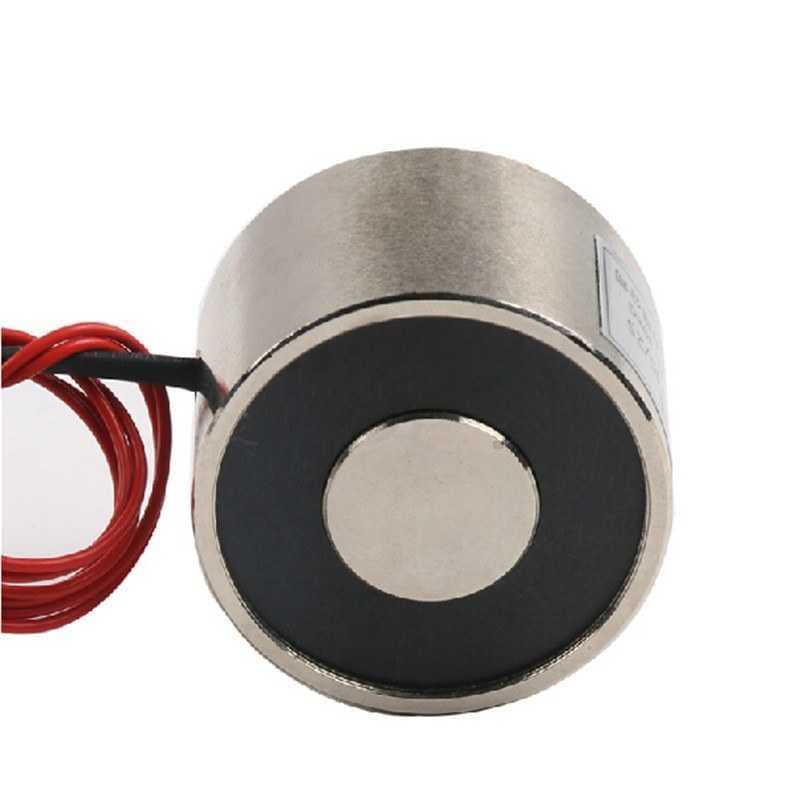

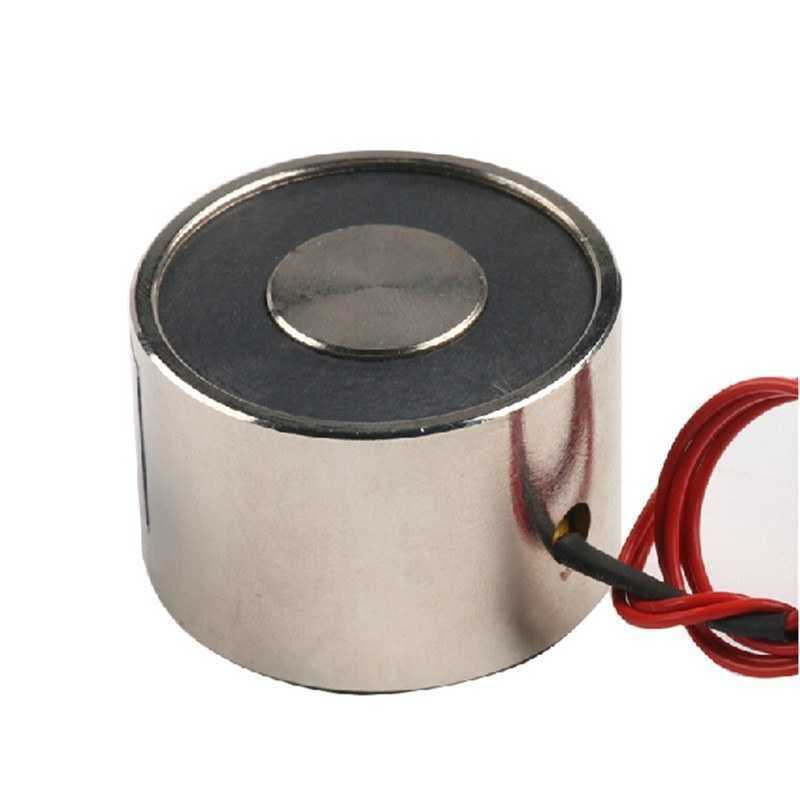

P25 20 12V DC Electromagnet - 8 kg Holding Force

It is an electromagnet with 8 kg holding power working with 12V/DC voltage. Since you will have pulling or repulsion power with this magnet depending on the voltage situation, you can turn the magnet active or passive whenever you want.

Warning:

The weight that the product can lift may vary depending on various factors: The type of metal, the thickness of the metal, whether the metal is coated or painted, whether the magnet is at a right angle to the weight, whether the weight is balanced or not.

Depending on the factors mentioned above, the weight that the magnet can lift is max. It will be 8 kg. In the absence of suitable conditions, this weight value can drop to a few kilograms.


P25 20 12V DC Electromagnet Technical Specifications:

  • Operating voltage: 12V/DC
  • Diameter: 20mm
  • Magnet diameter: 8mm
  • Height: 15mm
  • Cable length: ~20cm
  • Screw hole: M3
  • Color: Chromem

Useful Links:
20225
P25 20 12V DC Electromagnet - 8 kg Holding Force
P25 20 12V DC Electromagnet - 8 kg Holding Force
:
167.56 TL + VAT
:
201.08 TL
