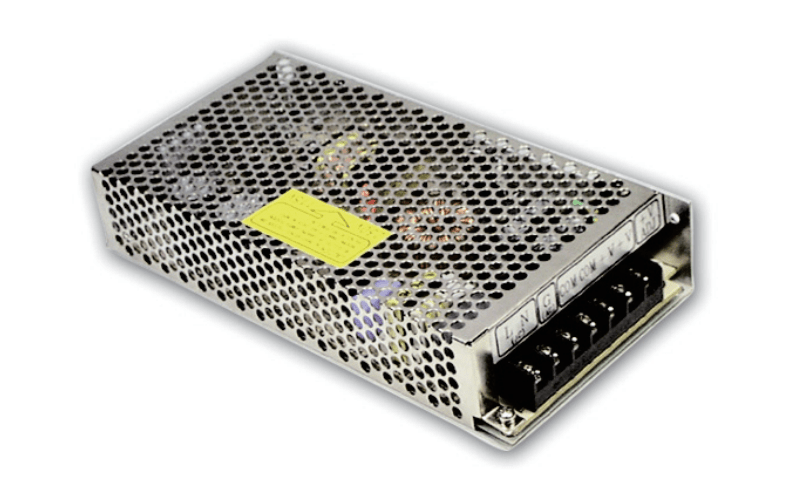

150W 24V 6.5A Power Supply

150W 24V 6.5A Power Supply

You can power industrial devices and products with rail mounted, closed type, perforated switching power supplies. Power supplies are systems that filter the situations such as sudden voltage drops, rises, harmonics, voltage fluctuations and noises in the electrical / electronic devices to which they are connected, and feed them with a constant and clean voltage at the output, and continue to operate for a certain period of time in case of power outages. Thanks to the power supply, the system does not experience problems such as sudden stops and unnecessary loss of power.

• For industrial type Switch Mode Power Supply only
• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Combustion test at 100% full load
• Low Price and High Reliability
• High Efficiency and Low Operating Temperature
• Short Circuit and Overload Protection

Technical Specifications:

Output

• Dc Voltage: 24V
• Current: 6.5A
• Current Range: 0 ~ 6.5A
• Power: 156W
• Compression and Noise (Max.): 120mVp-p
• Voltage Range: 22.8 ~ 27.6V
• Voltage Tolerance: ± 1.0%
• Line Arrangement: ± 0.5%
• Load Regulation: ± 0.5%
• Setup, Rise Time: 800ms, 20ms / 230VAC
• Hold Time: 24ms / 230VAC

Input

• Voltage Range: 90 ~ 132VAC / 180 ~ 264VAC
• Frequency Range: 47 ~ 63Hz
• Efficiency: 86%
• Ac Current: 3A / 115VAC 2A / 230VAC
• Input Current: COLD START 45A
• Leakage Current: <2mA / 240VAC
