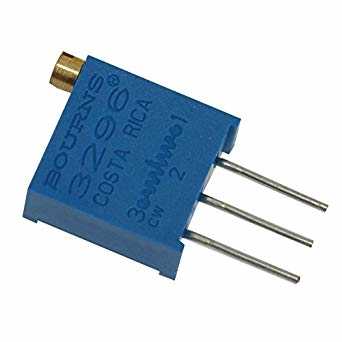

1M Multi-turn Trimpot (Vertical) - 3296W-1-105

Trimpots, voltage divider and contrast adjustment circuits are used in circuits which need to be adjusted precisely and resistance adjustment is not required.

Technical specifications:

• Resistance Value:1M

• Trimpot Type: Multi Turn Vertical

• Number of Turns: 25
• Resistance Change: Linear
• Total Resistance Tolerance:  10％
• Rated Power: 0.5W
• Max Operating Voltage: 300V DC
• Operating Temperature: -55C to +150C
• Stop torque:  >0,21(max)
• Dimensions: 9.53mm x 4.83mm x 10.03mm

Technical Drawing:



Technical Documents:

• Datasheet
