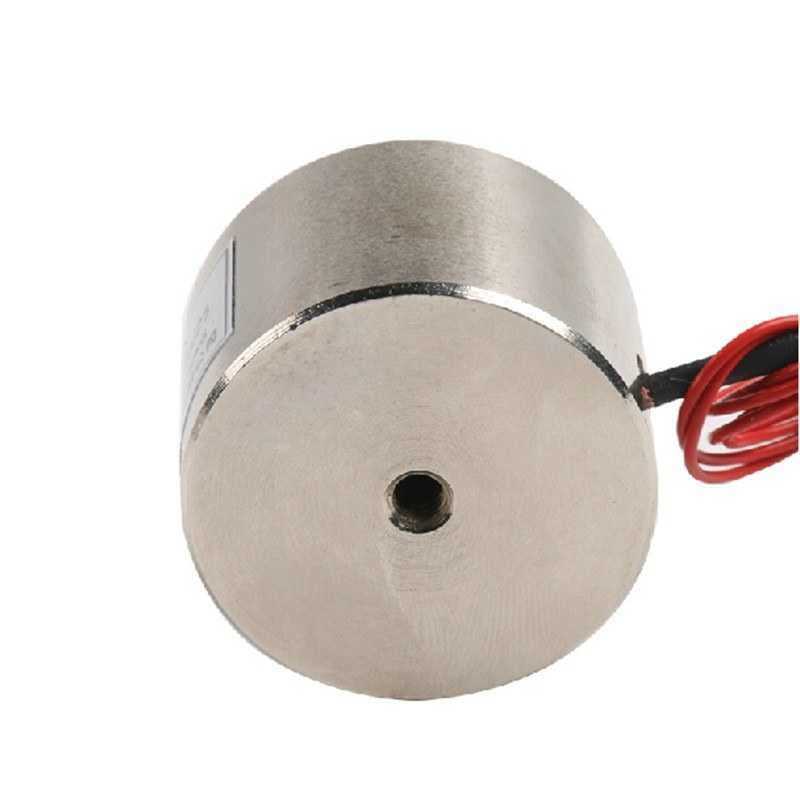

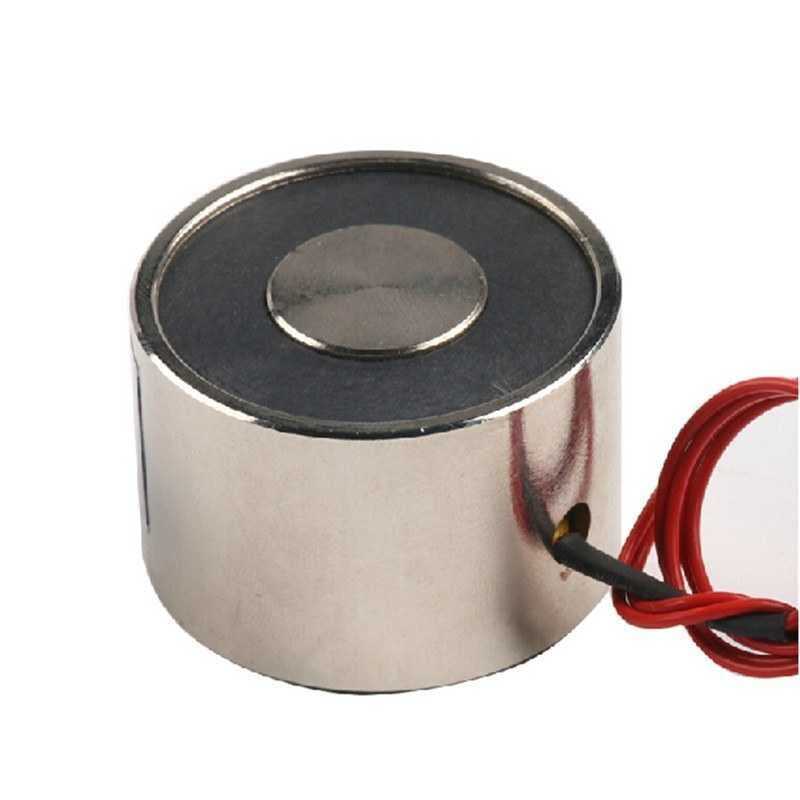

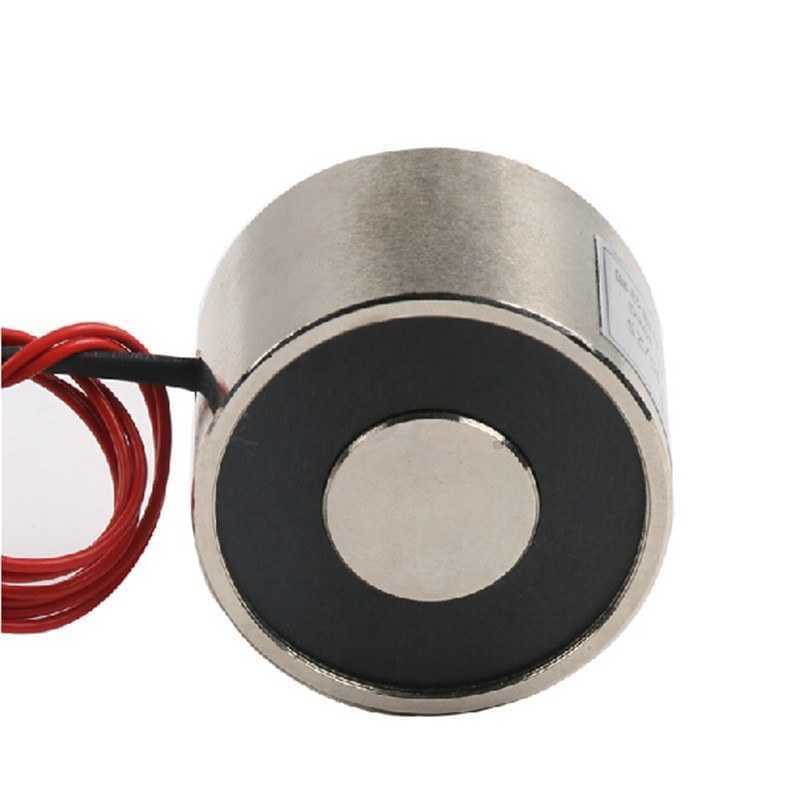

P40 20 24V DC Electromagnet - 30 kg Holding Force

Brand
Robotistan
Product Code
20234
Fiyat
: 356.75 TL + VAT
KDV Dahil Fiyat
: 428.10 TL
PURCHASED TOGETHER

P40 20 24V DC Electromagnet - 30 kg Holding Force

It is an electromagnet with 30 kg holding power working with 24V/DC voltage. Since you will have pulling or repulsion power with this magnet depending on the voltage situation, you can turn the magnet active or passive whenever you want.

Warning:

The weight that the product can lift may vary depending on various factors: The type of metal, the thickness of the metal, whether the metal is coated or painted, whether the magnet is at a right angle to the weight, whether the weight is balanced or not.

Depending on the factors mentioned above, the weight that the magnet can lift is max. It will be 30 kg. In the absence of suitable conditions, this weight value can drop to a few kilograms.


P40 20 24V DC Electromagnet Technical Specifications:

  • Operating voltage: 24V/DC
  • Diameter: 40mm
  • Magnet diameter: 18mm
  • Height: 20mm
  • Cable length: ~20cm
  • Screw hole: M5
  • Color: Chromem
