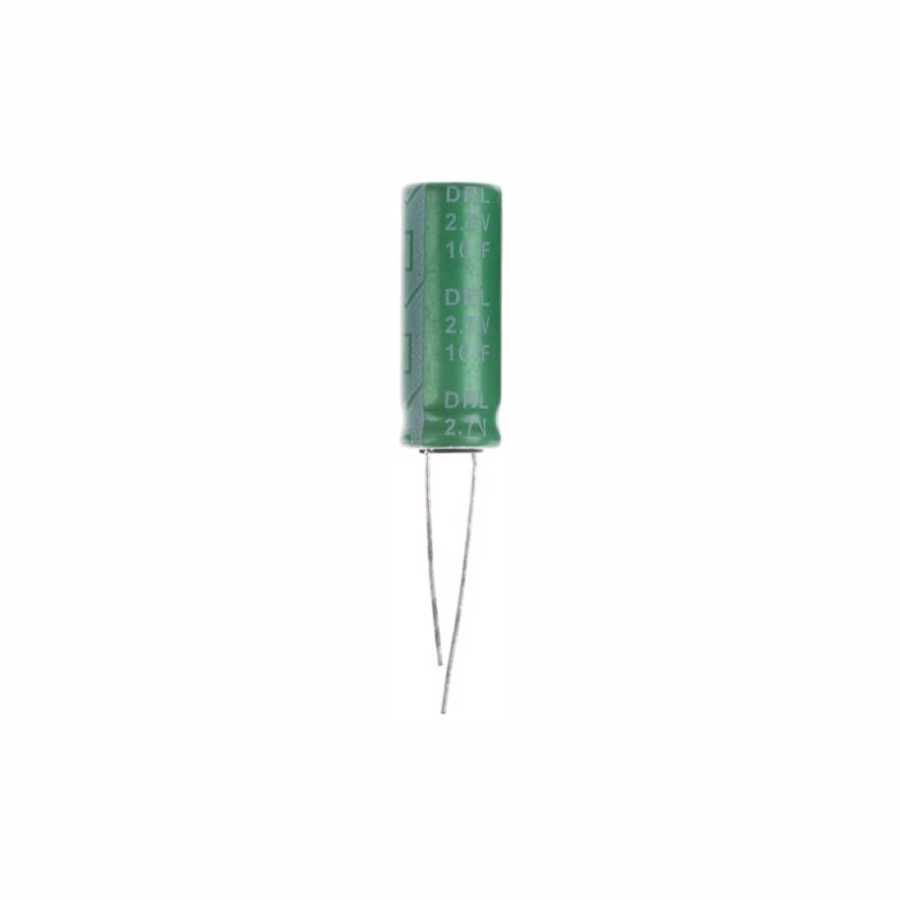

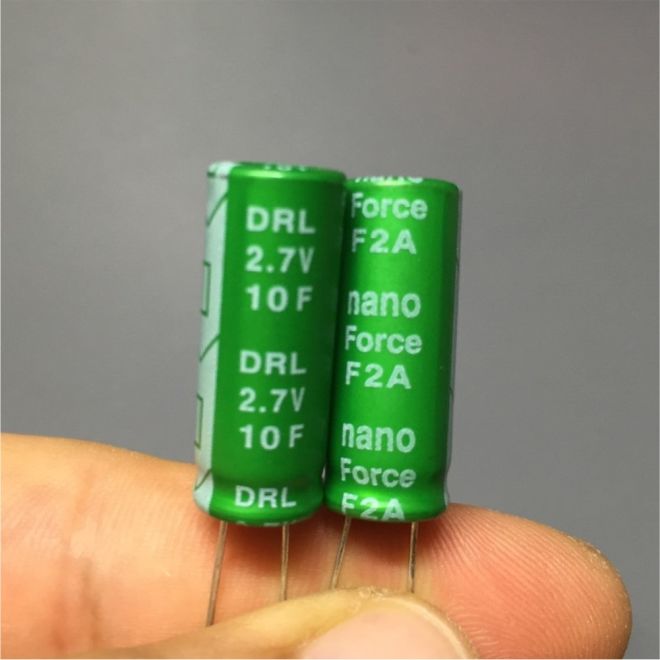

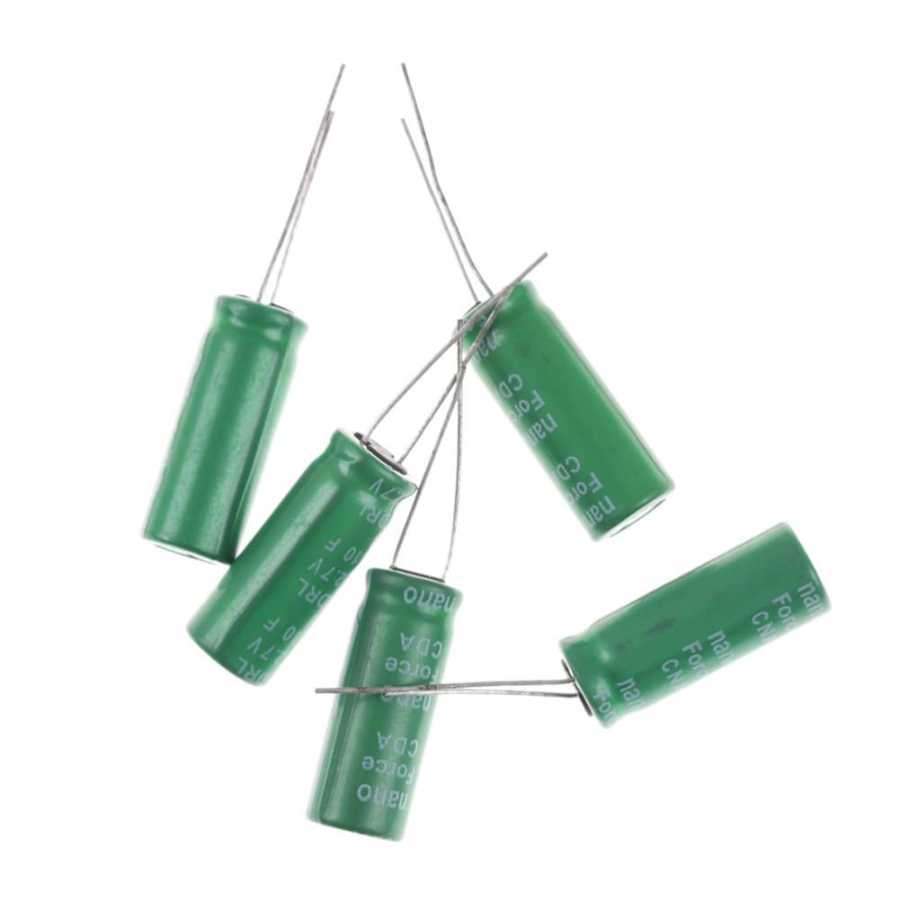

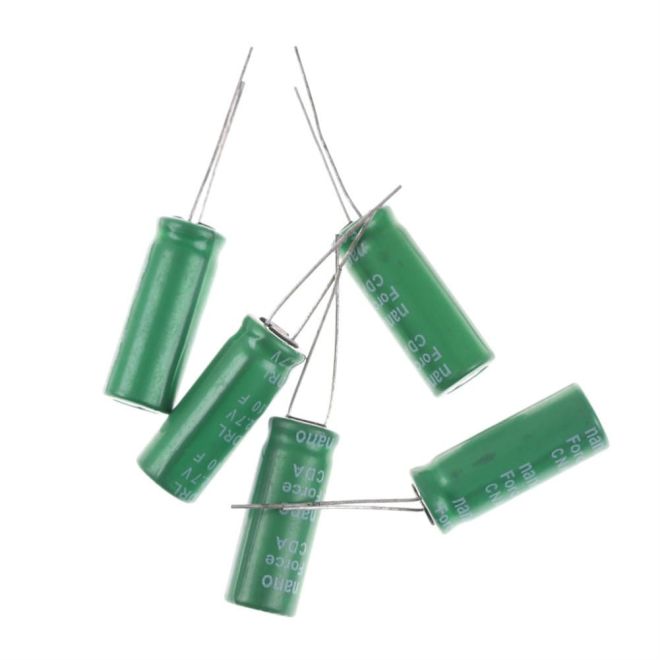

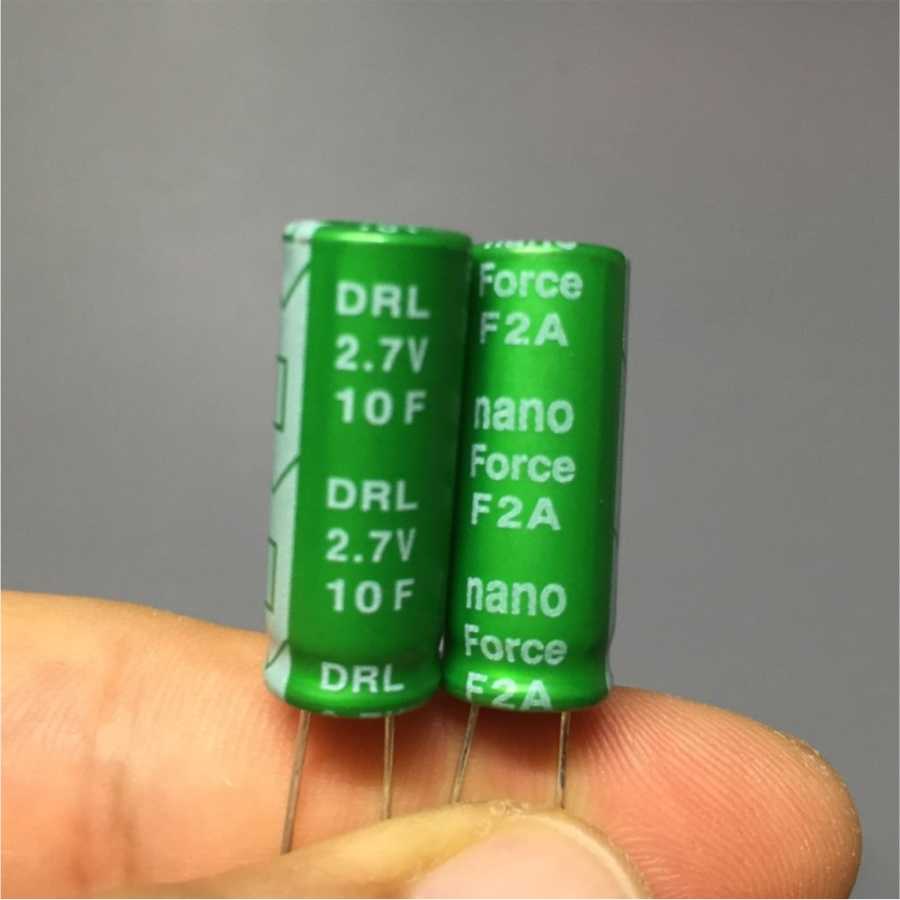

2.7V 10F Farad Super Capacitor

10F 2.7V super/ultra capacitor

A supercapacitor (SC) (also electric double-layer capacitor (EDLC), also called supercap, ultracapacitor or Goldcap) is a high-capacity capacitor with capacitance values much higher than other capacitors (but lower voltage limits) that bridge the gap between electrolytic capacitors and rechargeable batteries. They typically store 10 to 100 times more energy per unit volume or mass than electrolytic capacitors, can accept and deliver charge much faster than batteries, and tolerate many more charge and discharge cycles than rechargeable batteries.

Technical Specs:

• Brand: Nano Force

• Capacitance: 10 Farad

• Voltage: 2.7v

• ESR: 75mohm

• Max Peak Current: 8A

• Max Continuous Current: 2.2A @ 15 degree C rise

• Weight: 3.5g

• Stored Energy: .01Wh

• Radial Leads

• Size: 21mm long x 12.5mm diameter
