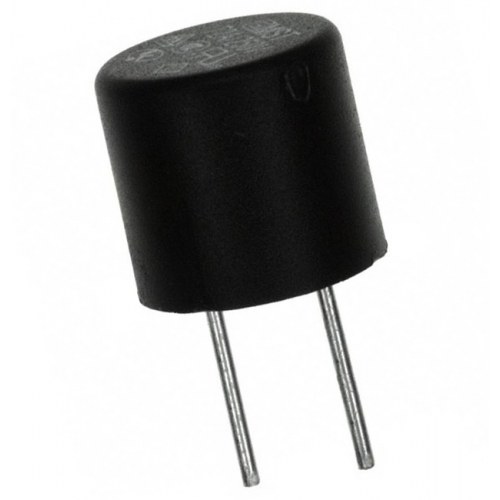

2A Capacitor Type Cylindrical Fuse

2A Capacitor Type Cylindrical Fuse

Capacitor Type Fuses are also known as cylinder type fuses. This fuse with a value of 2A 250V is a capacitor type.

Technical Specifications:

• Fuse Speed: T
• Wire Diameter: 0.64mm
• Body Material: Thermoplastic
• Lead Orientation: Radial
• Maximum Operating Temperature: + 125 ° C
• Minimum Operating Temperature: -55 ° C
• Body Height: 8.5mm
• Body Diameter: 8.5mm
• Current Rating: 2A
• Wire Length: 4.3mm
• Wire Pitch: 5.08mm
• Voltage Rating: 250V ac
• Breaking Capacity (at Maximum Voltage Value): 35 A @ 250 V ac, 50 A @ 125 V dc
