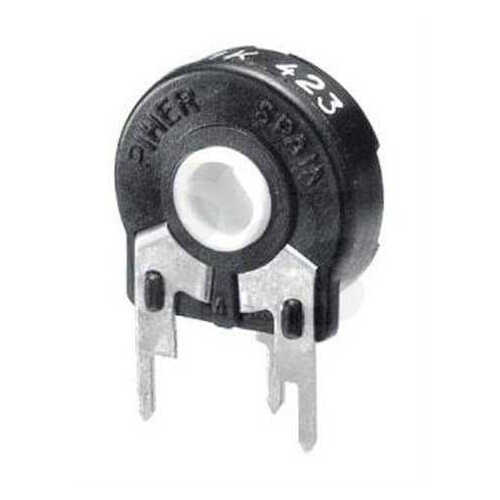

Trimpots, voltage divider and contrast adjustment circuits are used in circuits which need to be adjusted precisely and resistance adjustment is not required.
Technical specifications:
- Resistance Value: 2.2K
- Trimpot Type: Vertical
- Resistance Change: Linear
- Total Resistance Tolerance: ±20％
- Rated Power: 0.15W(50C)
- Max Operating Voltage: 200V DC
- Rotation of Noise(TThe murmur will appear when shaft turn from
terminal 1 to terminal 3 by 30 rounds/minute
equably speed): ≤47mV
- Electrical Rotation angle: 220°±20°
- Rotation torque (Rotational torque when turn the shaft :without special provision, rotational speed is 60°/s in ambient temperature 5-35°C ): 0.3-2.0Ncm
- Stop torque (The force that shaft transfer from terminal 1 to stop point or terminal 3 to stop point after 10 seconds until be break ): >5Ncm
- Rotation life: 10000 Rot.
Technical Drawing:
