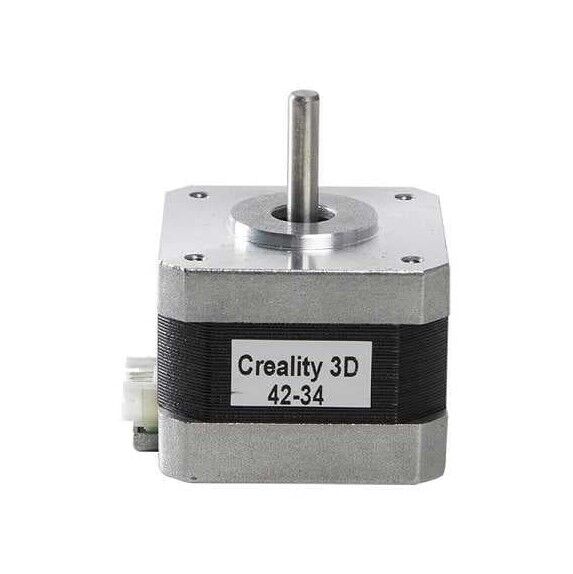

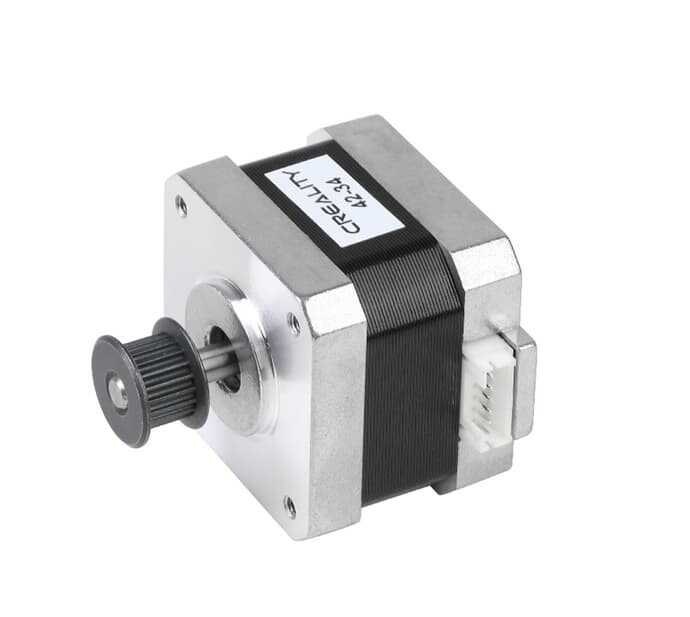

3D Printer Stepper Motor (Ender 3 V2)

3D Printer Stepper Motor (Ender 3 V2)

3D printers have mechanisms such as axis movements, filament pushing and are considered the most important part of 3D printers. Stepper motors have a delicate structure against impact, it is easy to damage the mechanism inside in any impact. However, if used carefully, it is a very long-lasting engine. You can use this stepper motor with the Ender 3 V2 devices produced by the Creality brand.

Stepper Motor Technical Specifications:

• Input Voltage: 12V
• Working Current: 330mA
• Rated Voltage: 4.83V/DC
• Rated Torque: 0.4Nm
• Number of Phases: 2
• Step Angle: 1.8°C
• Size: 42x42x34mm (length excluding shaft)
• Shaft Diameter: 5mm

Stepper Motor Dimensions:

How many revolutions does the stepper motor rotate?

Values ​​given in stepper motors are holding torque. The 21 or 12Nm motor works comfortably at 2000 revs with a good driver.

Stepper Motor Package Contents:

• 1 x 3D Printer Stepper Motor (Ender 3 V2)
