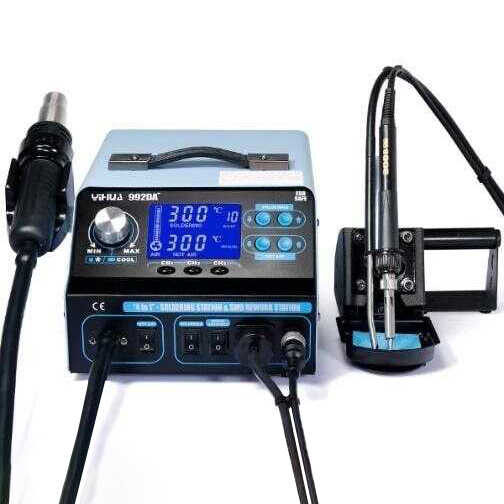

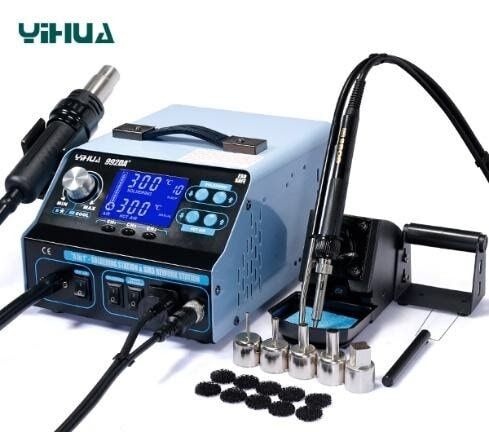

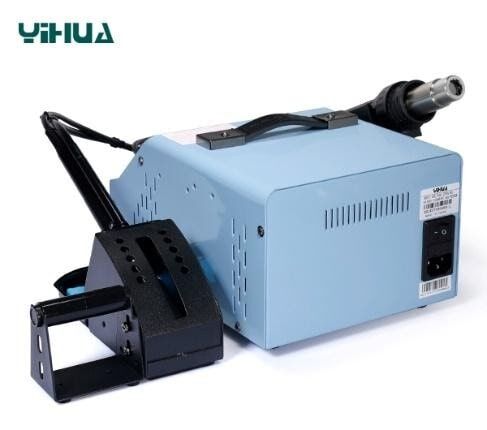

3IN1 FUNCTION YIHUA 992DA + UPGRADE VERSION BGA REWORK STATION

3IN1 FUNCTION YIHUA 992DA + UPGRADE VERSION BGA REWORK STATION

YIHUA 992DA is a soldering station specially designed for professionals and produced for advanced soldering work. With its multi-functional soldering iron, it can see all your works together. There are various modes and options for you to adjust on our product.

1.The air gun/soldering iron features -50ºC to +50ºC temperature compensation.

2.The air gun/soldering iron features ºF/ºC conversion.

3.The air gun features manual/automatic work mode conversion. The soldering iron features a sleep function that can be set from 0-99 minutes.YIHUA992DA+ upgrade version have all above YIHUA992DA basic function,also additional below function :

A)Three section temperature storage mode (able to store hot air gun temperature, soldering iron temperature, air volume, temperature correction, automatic hibernation, automatic and manual mode, etc.

B)Cold air function added, able to switch between hot air and cold air.

• Rated voltage: AC 220V±10% 50Hz
• power : 720W±10％（Max）
• Working environment : 0～40℃ relative humidity＜80％
• Storage environment : 20～80℃ relative humidity＜80％
• Dimensions : 255*188*125mm
• Weight : 5.11KG

Parts Parameters

Hot Air Gun:

• Operating Voltage : AC 220V±10% 50Hz
• Output power : 75W
• Temperature range : 100℃～480℃
• Air Supply Mode : Diaphragm pump
• Air Flow : 28L/min(MAX)
• Temperature Stability : ±1℃ （Static）
• Display Mode : LCD display
• PID Temperature Calibration Cycle : rapidly 20ms
• Heating Core : Ceramic columned heating element.

Soldering Iron:

• Operating Voltage : AC 26V±10% 50Hz
• Output power : 550W
• Temperature range : 200℃～480℃
• Temperature Stability : ±1℃ （Static）
• Display Mode : LCD display
• PID Temperature Calibration Cycle : high-speed 100ms
• Heating Core : Imported heater
