4 Dip Switch

If you need large amount stock , please contact us.

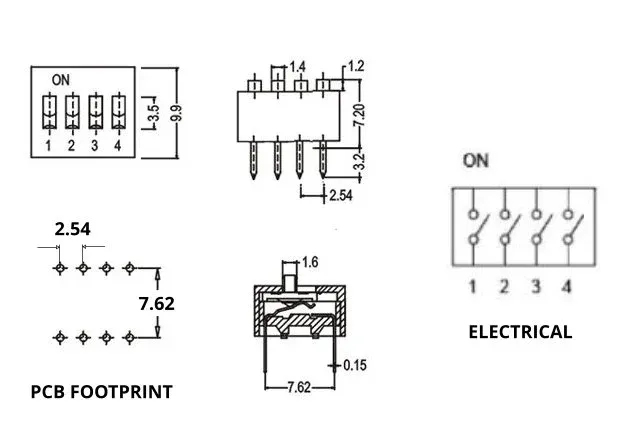

DIP switch with 4 individual switch positions. The pins have 2.54mm spacing - fits great into a breadboard! Works great as general control switches.

Technical Specs:

• Switching rating: 25mA 24V DC
• Non Switching rating: 100mA 50V DC
• Contact resistance: 50mΩ Max. (Initial)
• Insulation resistance: 100MΩ at 500V DC
• Dielectric strength: 500V AC 1 minute
• Mechanical life: 2,000 Cycles
