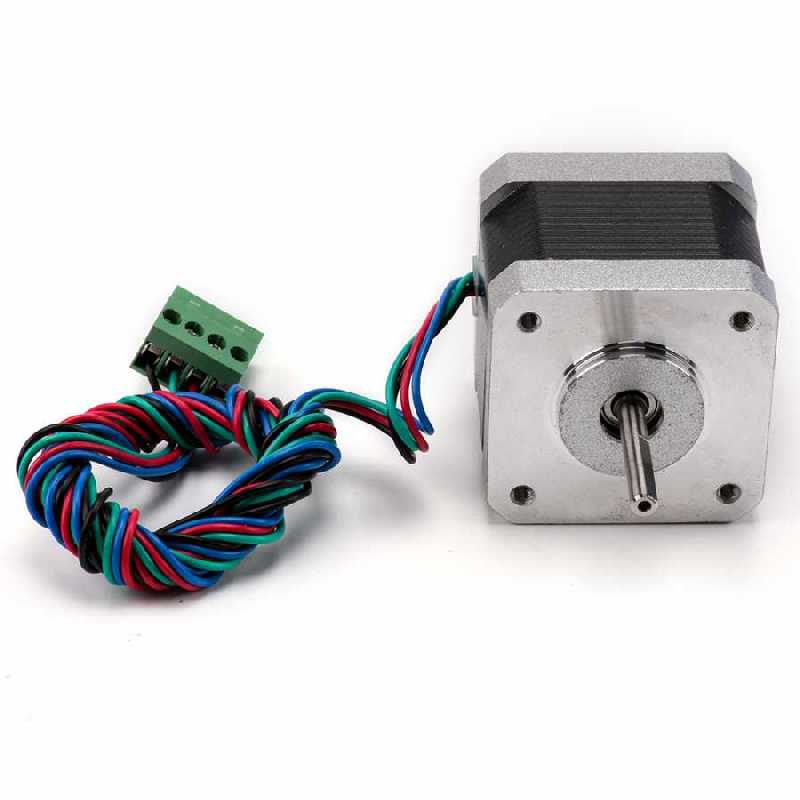

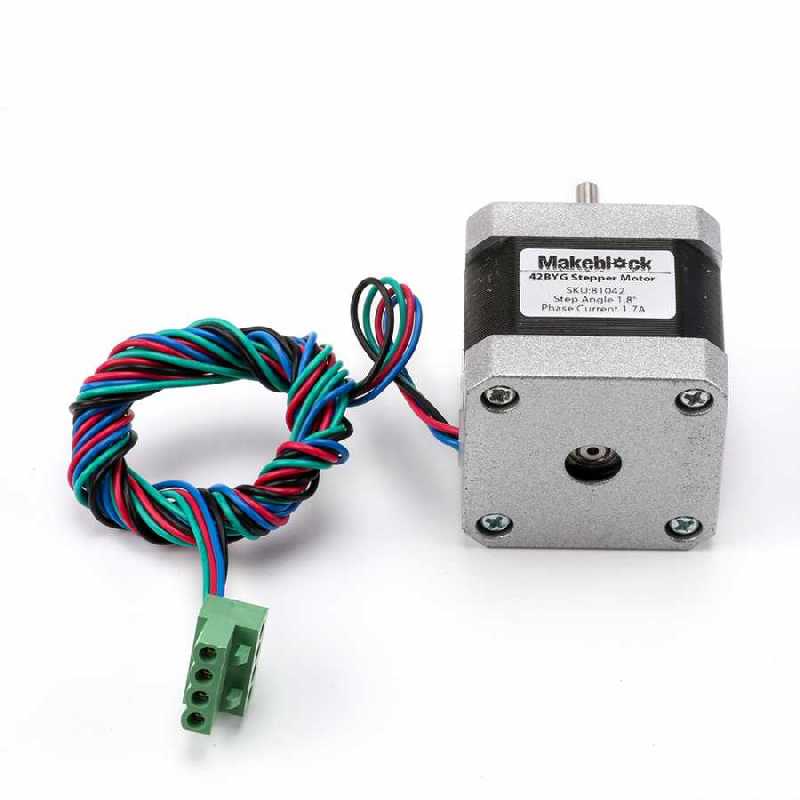

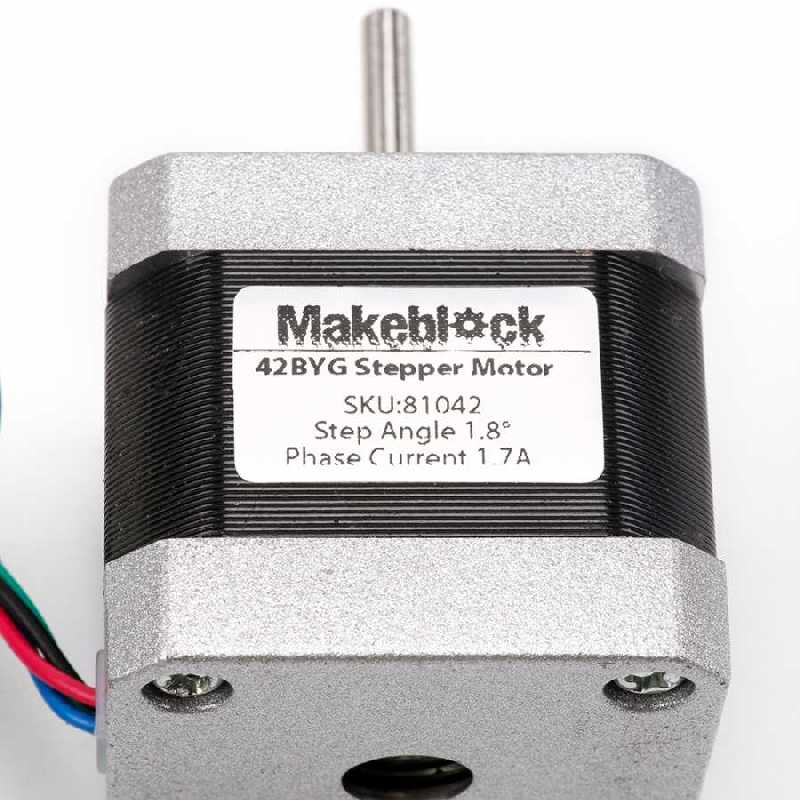

42BYG stepper motor
Features:
- Phase: 2 phase
- Step angle: 1.8 ±5%°/Step
- Operation voltage: 12V
- Operation current: 1.7A/Faz
- Phase resistance: 1.5Ω ±10%/Faz
- Phase enductance: 2.8mH ±20%/Faz
- Hold torque: 40 N.cm min.
- Lock torque: 2.2 N.cm max.
- Izolation class: B
- Cable: AWG26 UL1007
- Rotor torque: 54G.cm2
Dimensions:

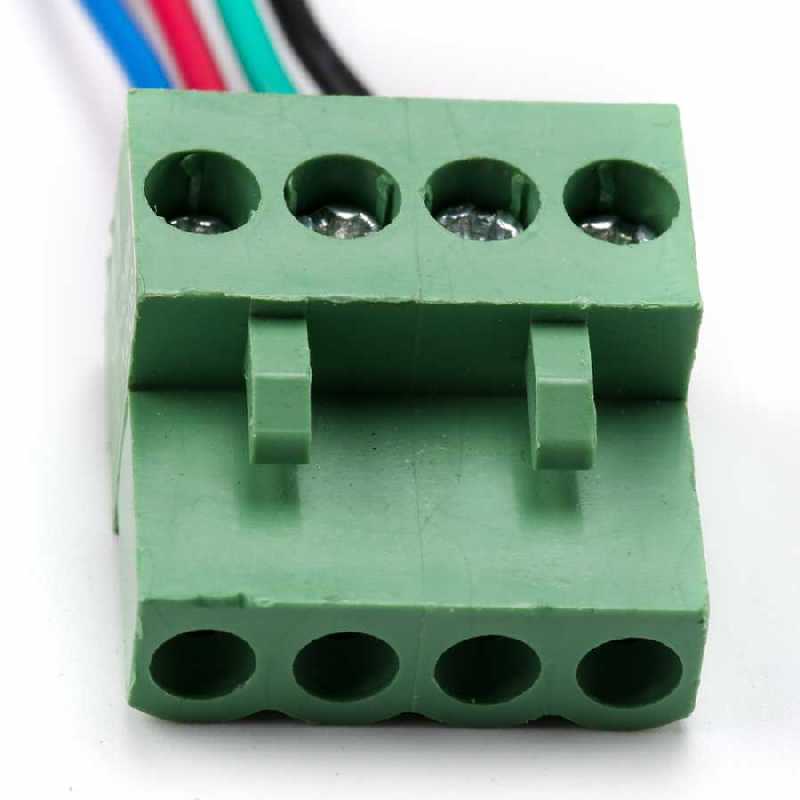

Connection type:
