INTRODUCTION

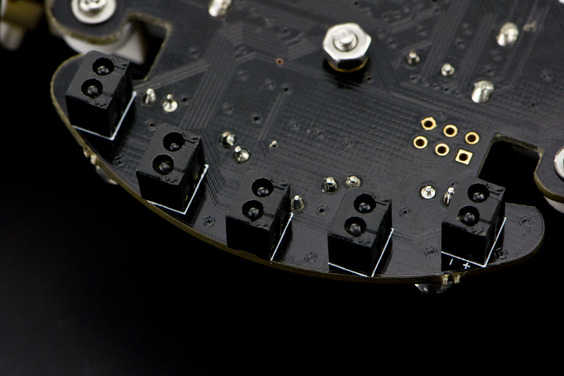

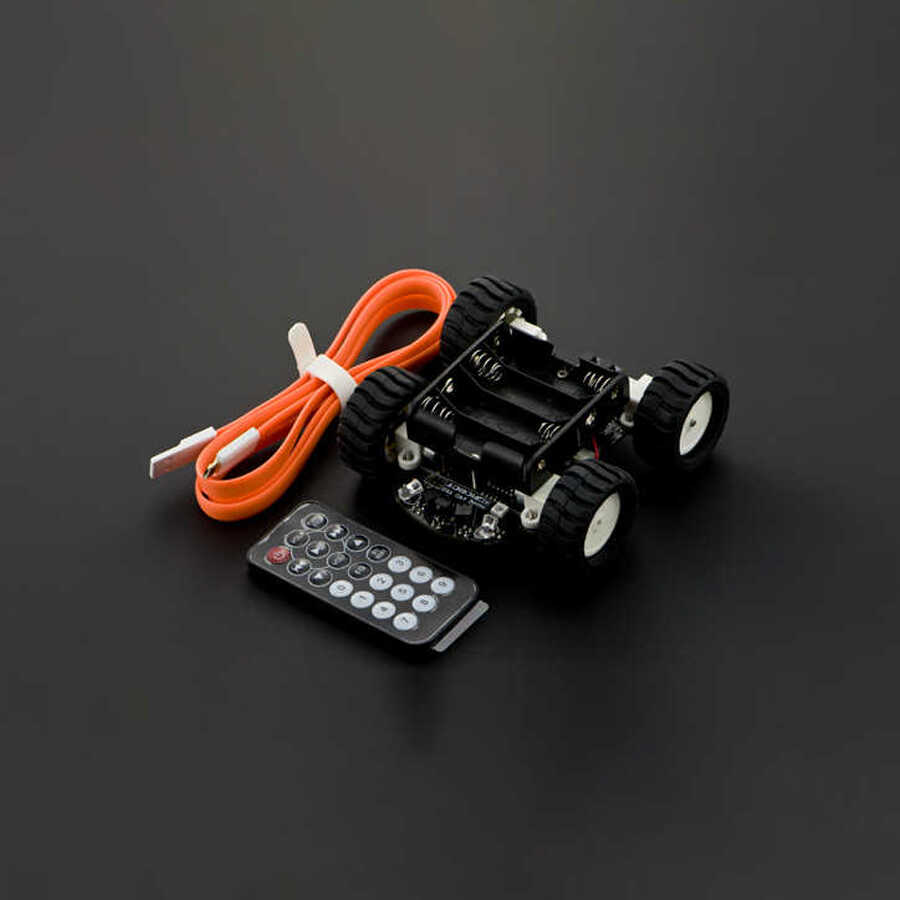

Our newly upgraded 4WD MiniQ mobile robot kit is especially designed for education/learning purposes. It comes fully assembled and all your need is a PC with Arduino IDE and 4xAA battery. This new version of MiniQ 4WD Arduino Robot Kit comes with Arduino Leonardo controller (ATmega32u4) and also integrates modules such as RGB LED, photosensitive diode, infrared transmitters, infrared receivers, infrared line tracking sensors, light sensors, additional buttons and buzzer.
Along with this mobile robot kit, we offer 8 lessons for beginners, from entry-level to line-following, obstacle avoidance, and remote control. Users can easily grasp through the tutorial. All coding and tutorials are open and free to download.
lesson1. Get to Know Your Robotlesson2. Control Buzzerlesson3. Light Direction Indicationlesson4. Line_followinglesson5. RGB LEDlesson6. Obstacle Avoidancelesson7. Encoderlesson8. IR Remote Control
SPECIFICATION
- Controller: Atmega32U4(Arduino Leonardo)
- Power Supply: 4x AA batteries or Micro-USB
- Working Voltage: 4.5 to 6V
- Driving Mode: 4WD
- Max Speed: 79cm/s
- Size: 115x110x45mm (4.5x4.3x1.8'')
DOCUMENTS
EN
