Out Of Stock
Notify me when its in stock8 Pin Male Header

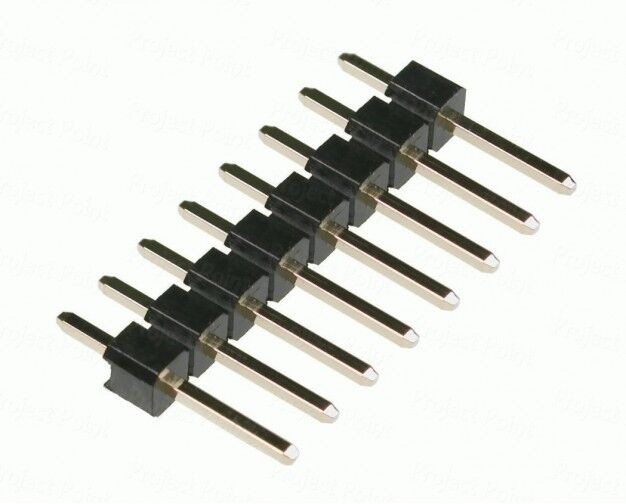

The 8 pin male header is a commonly used connector in electronic circuit design and prototyping projects. Here is more detailed information about the 8 pin male header:
Structure:
Consists of 8 metal pins.
The pins are arranged on a plastic base.
The standard spacing between the pins is 2.54 mm (0.1 inch).
Connection:
The male header is inserted into a female header or holes on a circuit board.
The pins pass through the corresponding holes in the female header or circuit board.
This provides a secure electrical connection between different boards or modules.
Applications:
Pin header connections for microcontroller boards (Arduino, Raspberry Pi, etc.).
Connecting components such as sensor modules, displays, and motors.
Connections on prototyping boards or breadboards.
Pin header interfaces for custom-designed circuit boards.
Soldering:
The male header is typically soldered to the circuit board.
The bottom part of the pins is soldered to the copper pads on the circuit board.
The soldering process provides a secure and durable connection.
Varieties:
Available in straight or right-angle configurations.
Headers with different pin counts (2, 4, 6, 8, 10, etc.) are available. Click here to view.
Can have pins of different heights (long, short).
Advantages:
Provides easy and fast connection.
Offers a reliable and durable electrical connection.
Enables modular designs.
Provides flexibility during prototyping and testing stages.
Precautions:
Ensure that the pins are inserted in the correct orientation.
Avoid applying excessive heat during soldering.
Take care not to bend or damage the pins.
The 8 pin male header is a commonly used and convenient connector for connecting different components in electronic projects. It is low-cost, readily available, and can be used in various applications. When designing circuits or prototyping,8 pin male headers offer a reliable and flexible connection solution.
