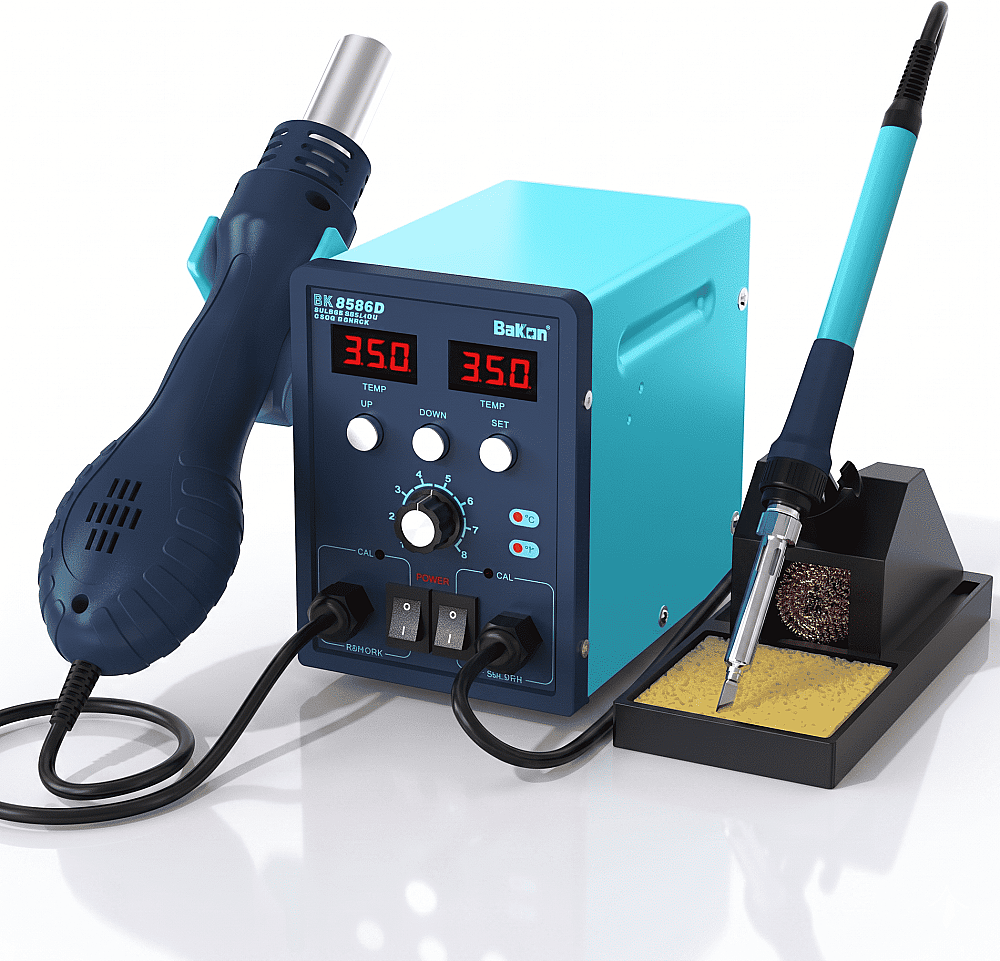

Notify me when its in stockBakon BK8586D Intelligent 2 in 1 Soldering Station

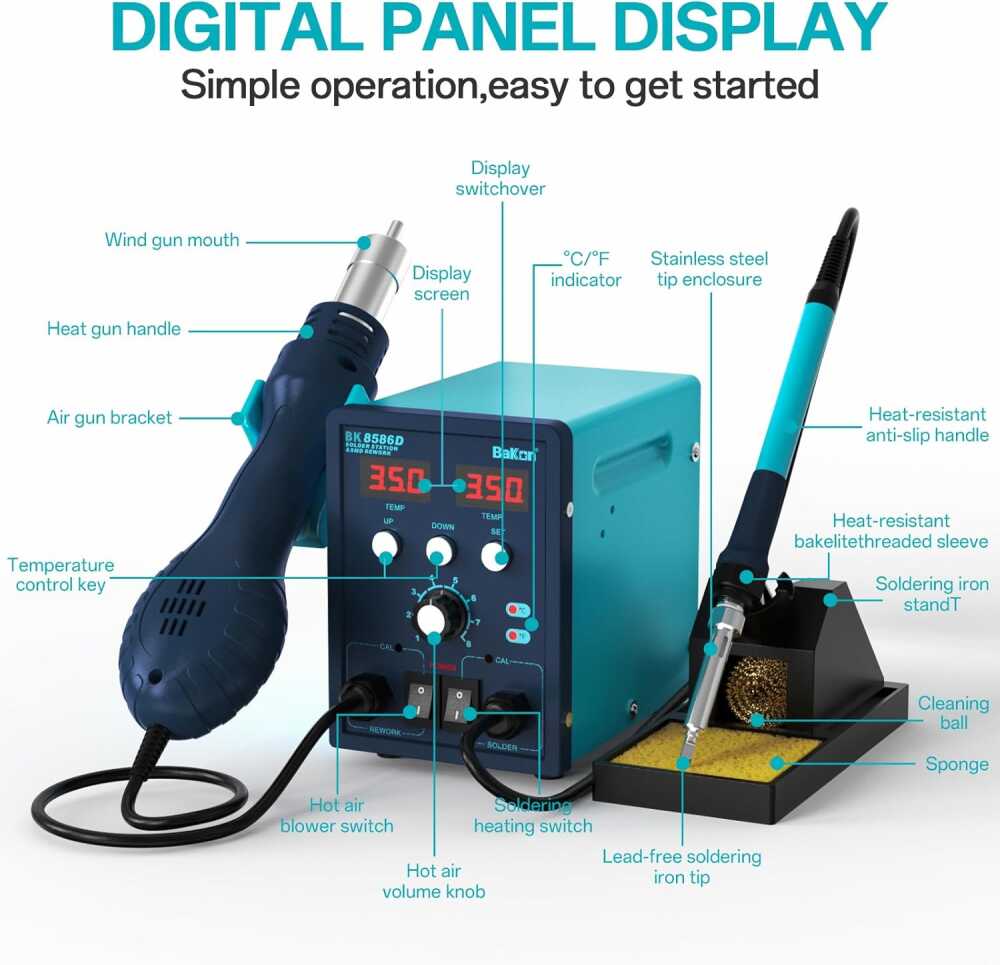

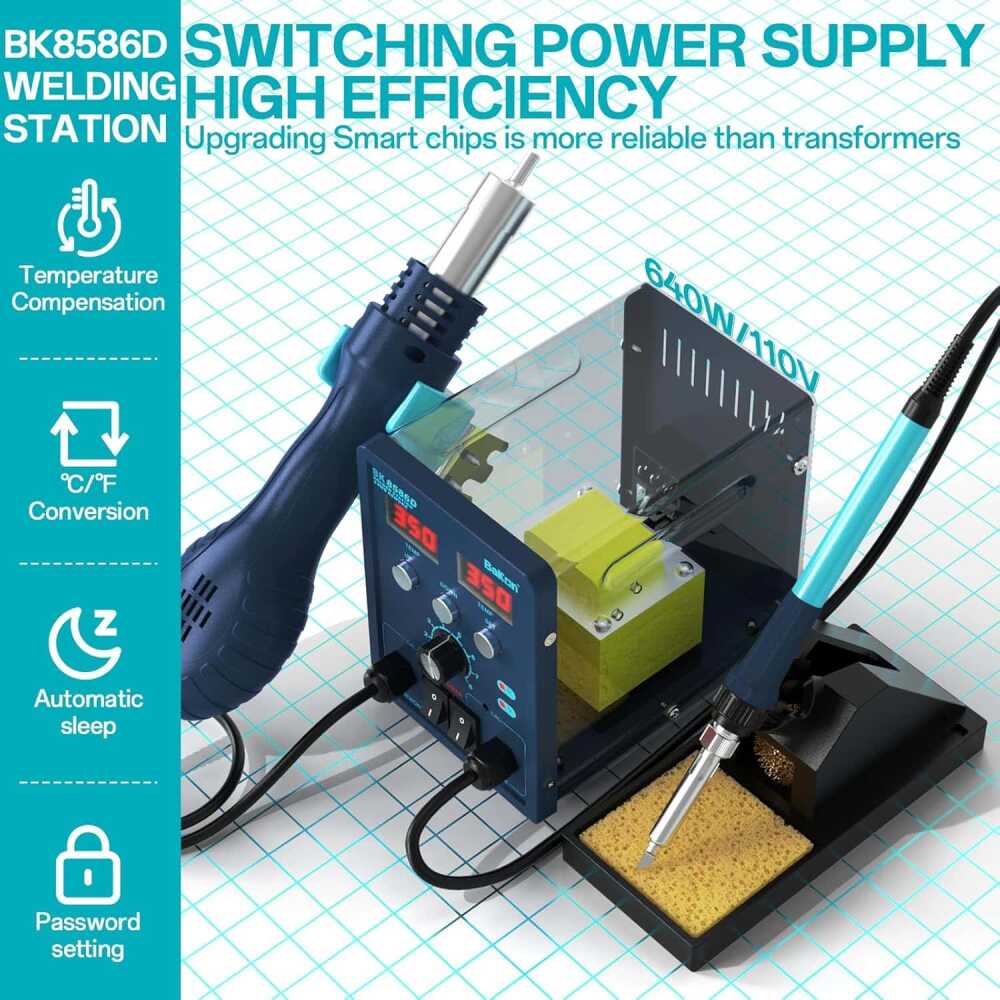

The Bakon BK8586D Intelligent 2 in 1 Soldering Station is a compact device designed for traditional soldering as well as mounting and desoldering SMD components such as QFP, SOP, PLCC, and SOJ, helping you save workspace. Thanks to its ESD-safe antistatic design, it ensures safe operation. The soldering iron and hot air modules have separate power switches and can be used independently. A single LED digital display allows for clear monitoring of temperature data for both units. With adjustable temperature and airflow settings, the device automatically cools down and enters sleep mode when the hot air handle is placed on the stand. The soldering iron sleep timer can be programmed between 1–60 minutes, while the hot air unit offers a sleep setting between 0–60 minutes. Built-in safety systems such as short-circuit, open-circuit, overheat, overload protection, and fault detection ensure the safety of both the device and the user. Thanks to its copper transformer, it heats up quickly, and the PID-controlled microprocessor keeps the temperature stable without deviation. It also supports digital temperature calibration and allows switching between Celsius and Fahrenheit. With its high performance and intelligent features, it is an ideal tool for professional users.
Bakon BK8586D Intelligent 2 in 1 Soldering Station Technical Specification:
| Brand: Bakon | Storage Environment / Temperature: -20~80/-4~176 ℉/%35~%60 | Fan Failure Warning: Yes | Hot Air Handle Model: SBK 8586 |
| Model: SBK8586 | Display Type: LED Display | Celsius / Fahrenheit Conversion: Yes | Compatible Soldering Tip Model: Bakon BK900 Series Tips |
| Power Consumption: 760W | Fan Type: Brushless Vortex Fan | Low / High Temperature Warning: Yes | Soldering Iron Heating Element Model: BK1327 |
| Hot Air Temperature Range: 100℃～500℃ | Temperature Calibration: Digital Calibration | Heater / Sensor / Error / Short Circuit Protection: Yes | Hot Air Handle Heating Element Model: BK853S |
| Soldering Iron Power / Temperature Range: 60W 200 ℃～480 ℃ | Temperature Control Method: Microcomputer P.I.D. | Voltage (Grounding): ≤2mV | Dimensions:160x95x141 mm |
| Airflow Range / Maximum Airflow: 120L/min | Soldering Station Input Voltage: AC 24V 50/60Hz | Ground Resistance: ≤2Ω | Weight: ≈2.5Kg/≈2.7 kg |
| Operating Temperature: 0~40 ℃/32~104 ℉ | Programmable / Auto Sleep: Yes | Soldering Iron Model: SBK907E |

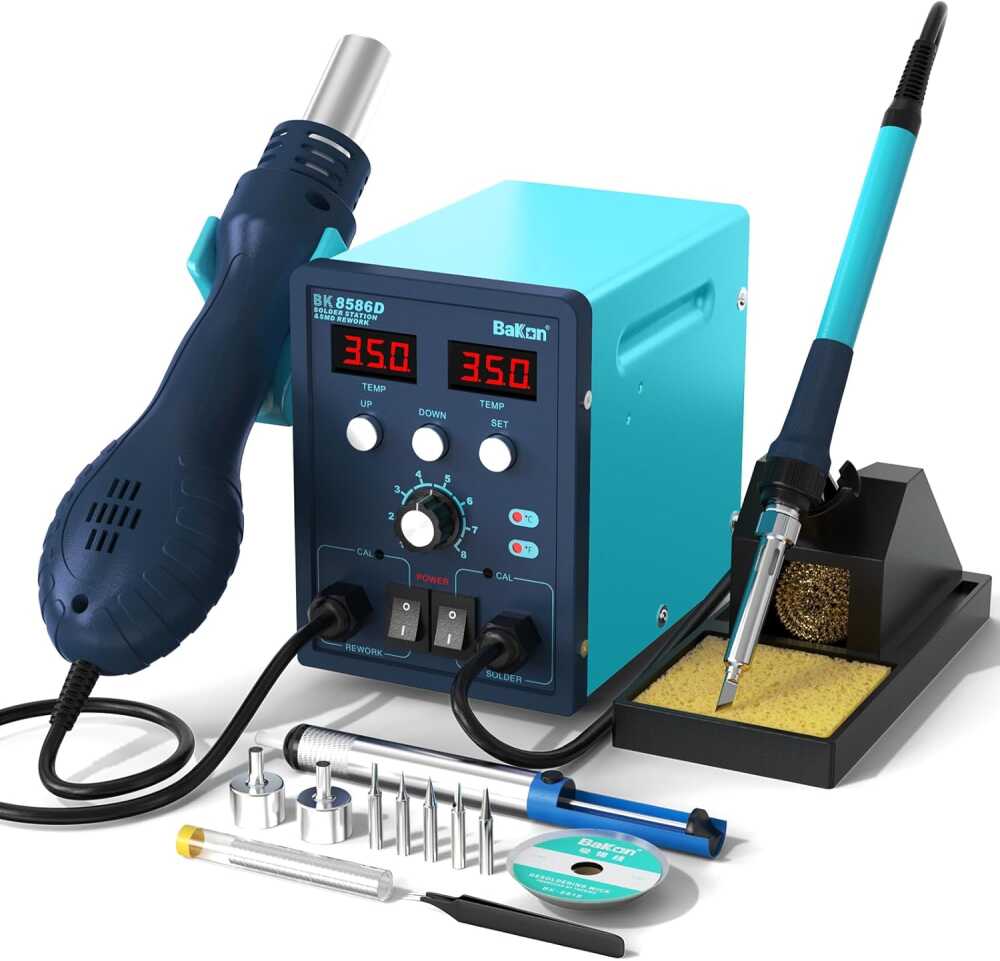

Package Contents:
1x SBK8586 Main Unit
1x SBK907E Soldering Iron
1x Soldering Iron Stand
1x Hot Air Handle
1x Hot Air Handle Stand
2x Nozzles
1x User Manual
1x Technical Service Form
1x Warranty Certificate
