Easiest control method for your RC vehicles and robots!
Acoms Technicsport V digital proportional radio control system is suitable for your RC cars, boats and all other types of surface robots like hovercrafts and tanks. Pistol grip design lets you control the forward/backward or brake function of the vehicle by the trigger and the steering wheel lets you control the direction of your robot. You can either connect the receiver to a microcontroller like Arduino or you can connect the ESC or the throttle/brake servo of your RC car to the throttle channel and steering servo to the steering channel.
Acoms Technisport V Product Contents:
- 2 channel Acoms Technisport V 27MHz transmitter
- 2 channel Acoms AR-2 27MHz receiver
- 2x AS-17 servo
- Servo hubs and screws

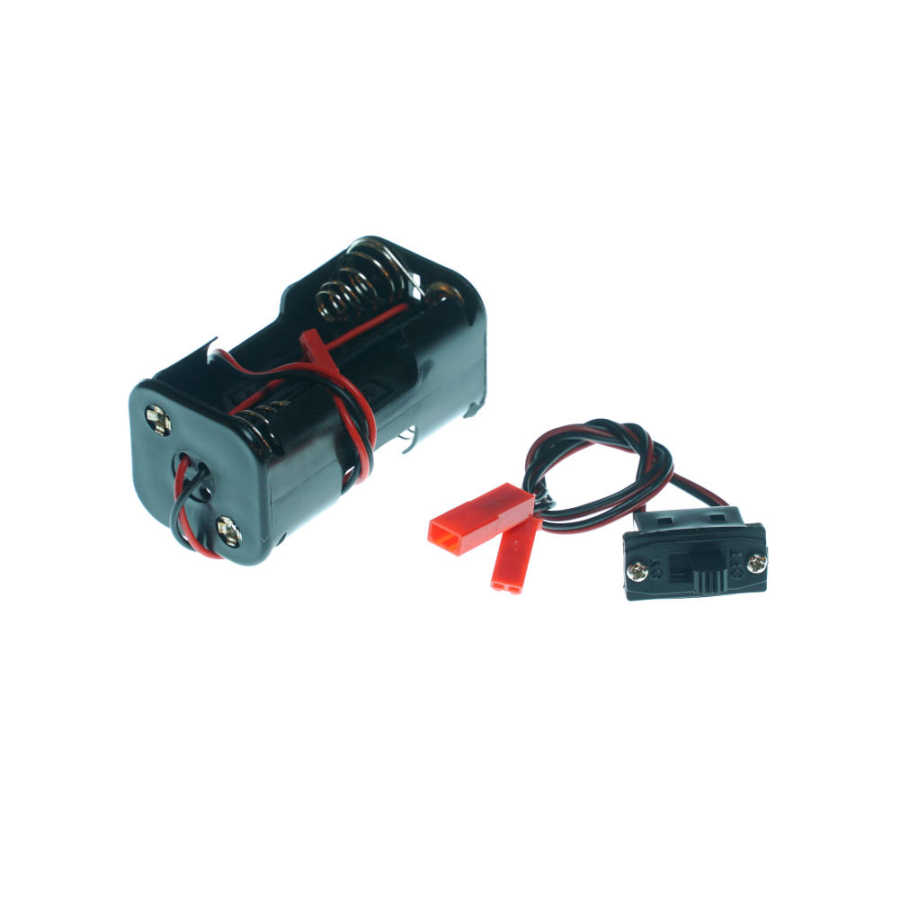

- 4xAA battery holder
- ON/OFF switch for receiver
- User manual

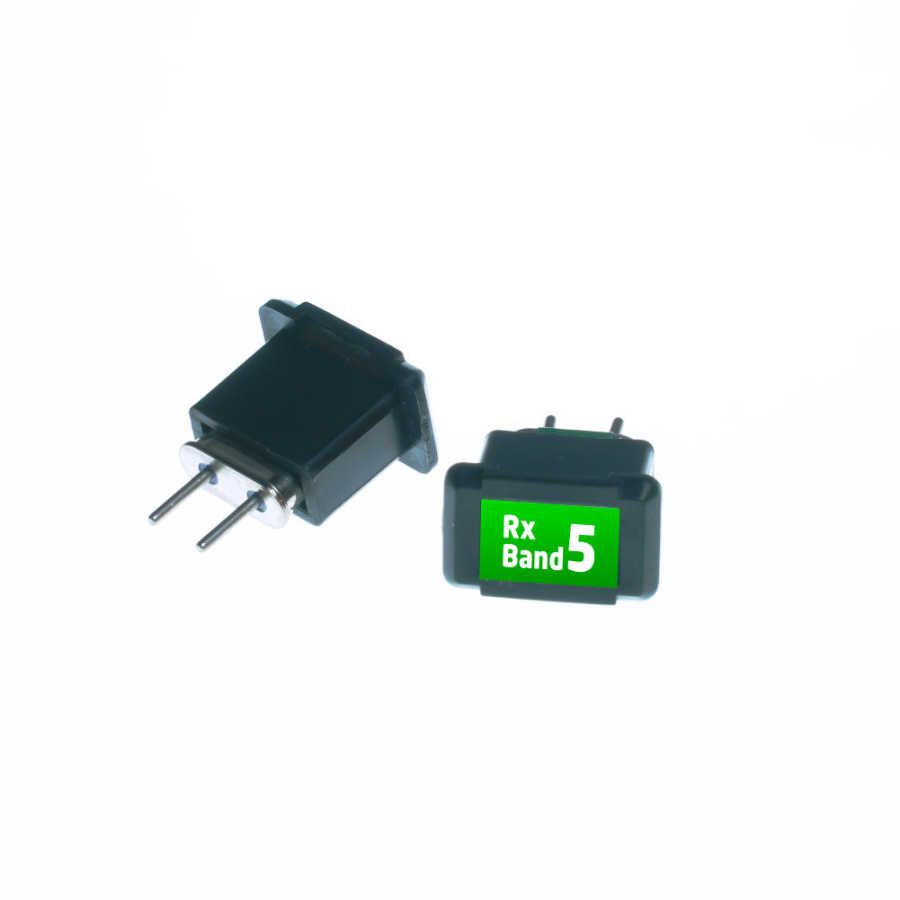

NOTE: Unlike 2.4GHz systems, this radio uses 27MHz band with crystal sets. If there is another transmitter operating at the same frequency as your radio, there will be interference problems. You must use crystals of different frequencies when there is another transmitter is operating. This set includes 27.095MHz (orange) crystal set.

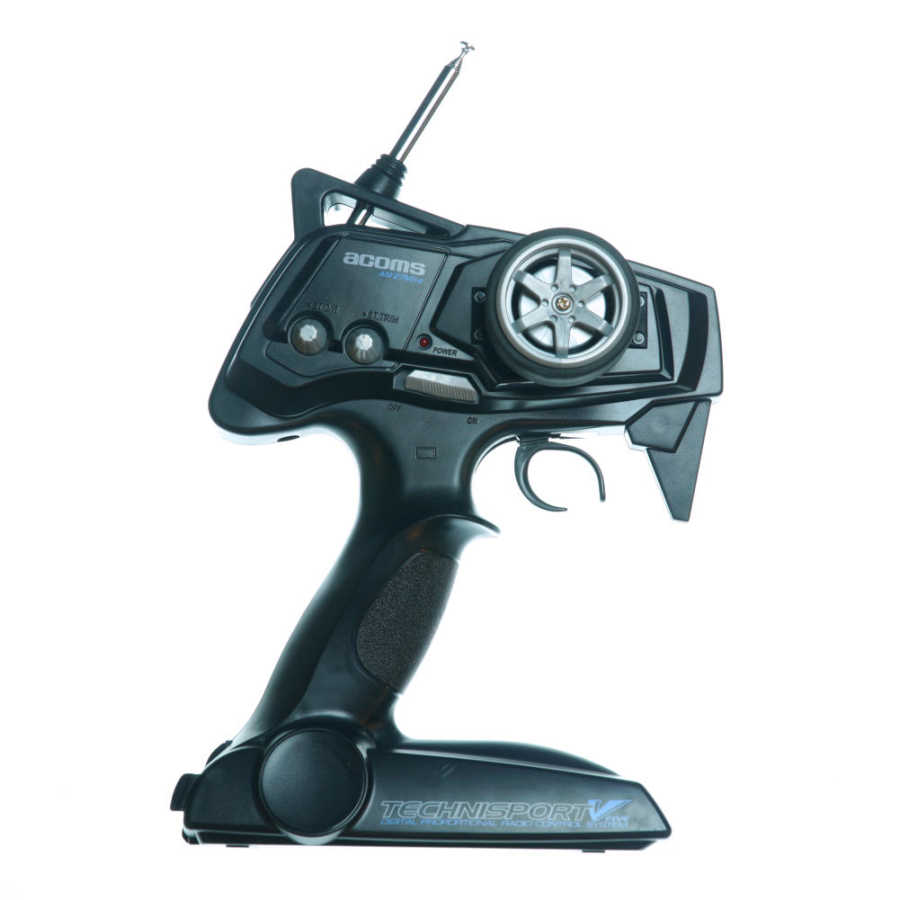

Acoms Technisport V Transmitter Technical Specs:
- 27MHz AM comminucation, 100mW output power

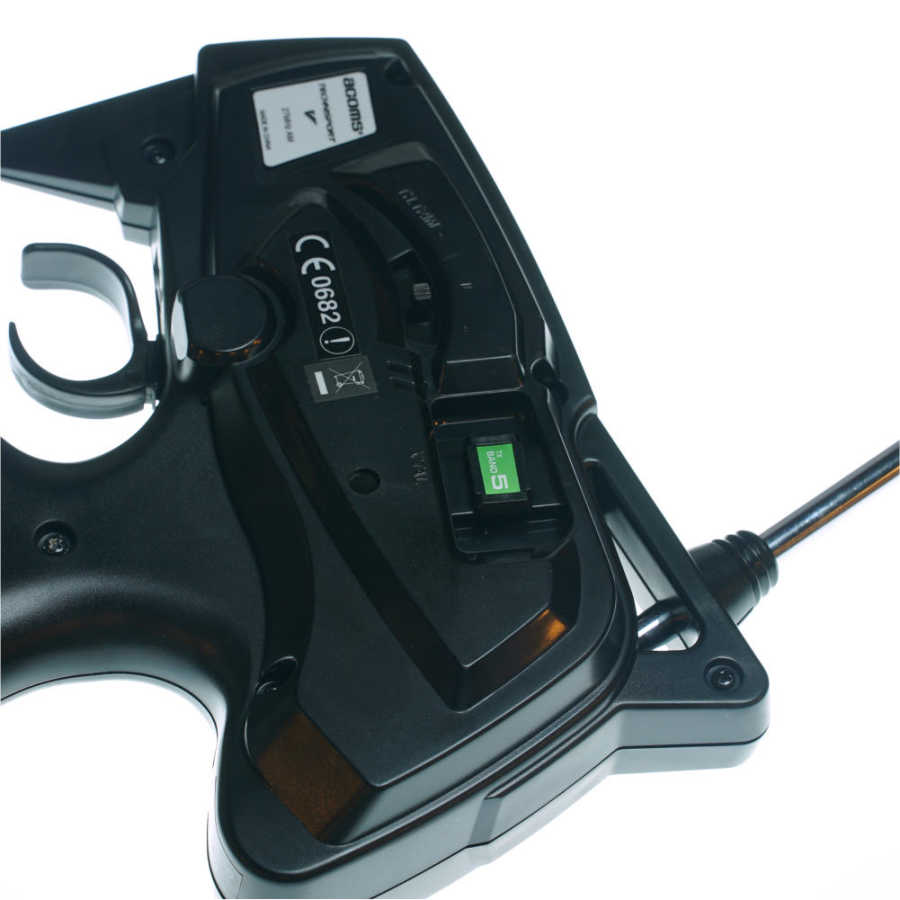

- Interchangeable frequency crystal
- Steering and throttle channels trim support
- D/R (dual rate) setting for steering channel
- Reverse switches for steering and throttle channels
- Operating voltage: 12VDC (8xAA batteries, not included)
- Weight: 367g (without batteries)

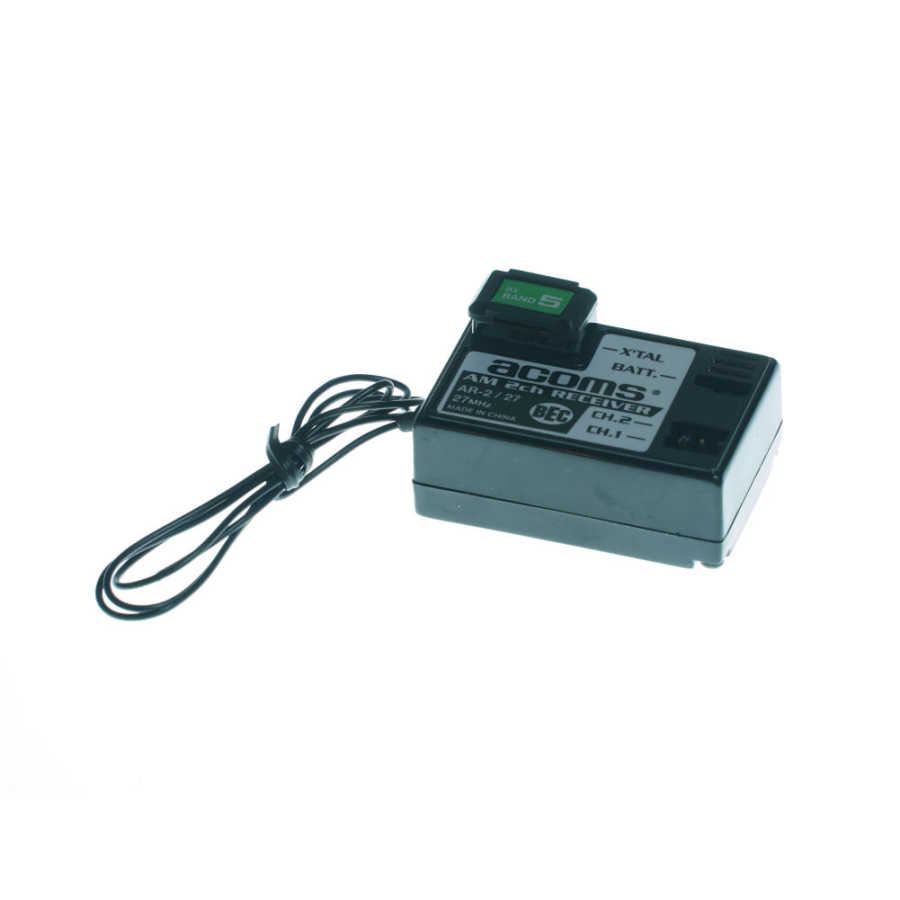

Acoms AR-2 Receiver Technical Specs:
- 27MHz AM comminucations
- Interchangeable frequency crystal
- 2 channels PWM servo output
- Operating voltage: 4.8~8.4VDC (4xAA, 5xAA or 2S LiPo, servos must be compatible)
- Dimensions: 43.5 x 29.0 x 17.5 (mm)
- Weight: 19g

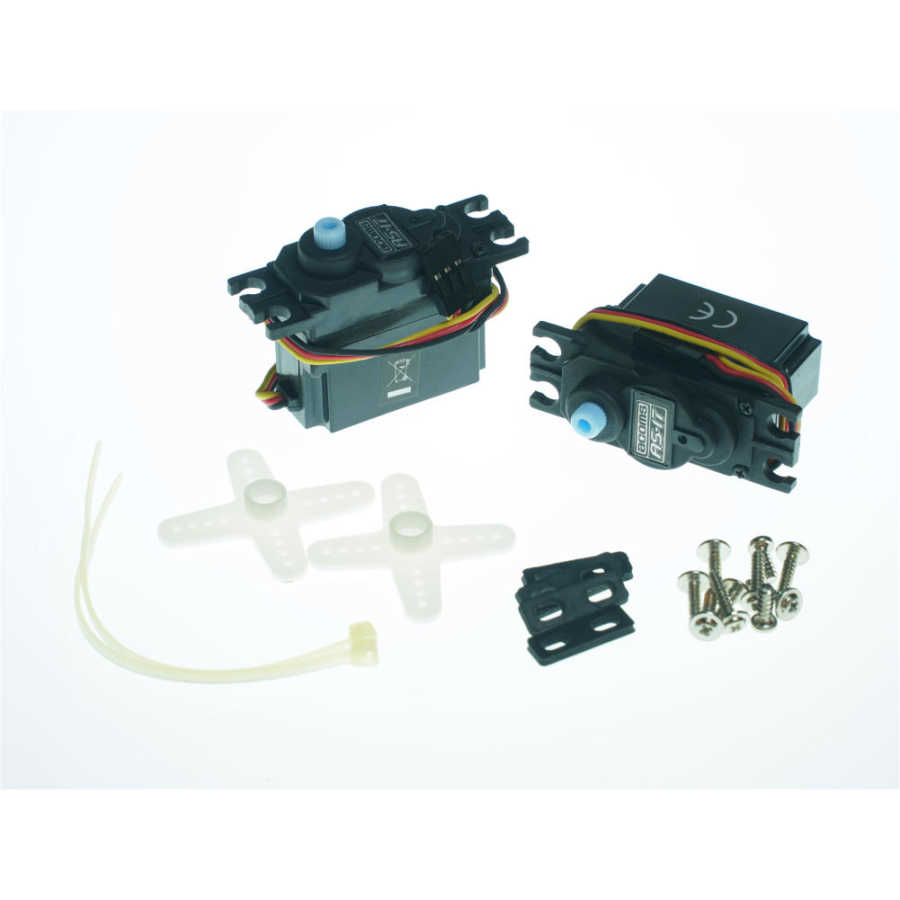

AS-17 Servo Technical Specs:
- Gears: Plastic
- Operating voltage: 4.8-6VDC
- Torque: 4.1 kg/cm @4.8V
- Speed: 0.18s/60° @4.8V
- Dimensions: 38.5 x 18.5 x 34.5 (mm)
- Weight: 35g
Example Arduino projects.
