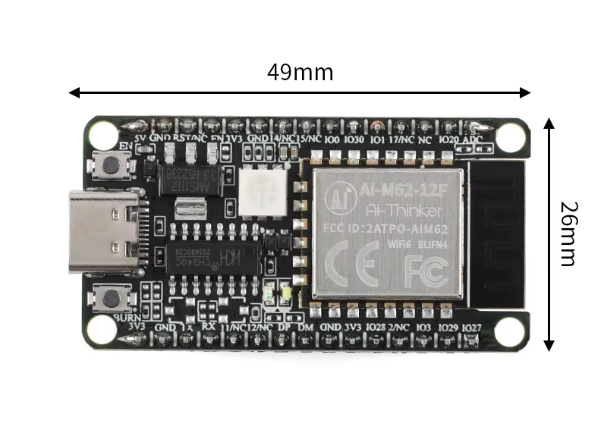

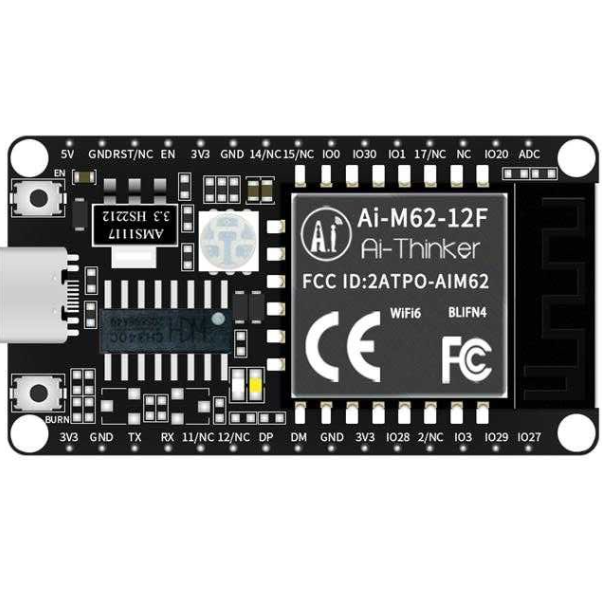

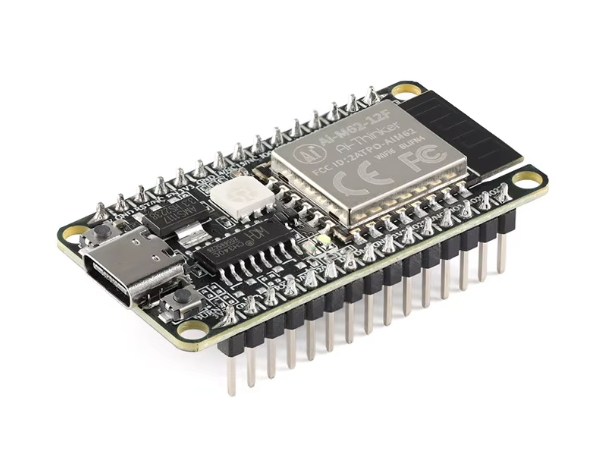

Ai-M62-12F-Kit WiFi Bluetooth Development Board

Ai-M62-12F-Kit WiFi Bluetooth Development Board

This module features a high-performance BL616 chip at its core, supporting Wi-Fi 6 and BLE 5.3. It is compatible with Wi-Fi 802.11b/g/n/ax, Bluetooth Low Energy (BLE), and the Thread protocol, making it an ideal choice for advanced IoT applications.

Ai-M62-12F-Kit WiFi Bluetooth Development Board Technical Specifications:

• Chipset: BL616
• Wi-Fi Compatibility: Supports Wi-Fi 6 (802.11b/g/n/ax protocols)
• Bluetooth: Compatible with BLE 5.3 (Bluetooth Low Energy)
• Thread Protocol: Enables efficient communication for low-power IoT applications
• Processor: Low-power 32-bit RISC-V CPU
• Features: Includes Floating Point Units (FPU) and DSP units
• Clock Speed: Operates at up to 320 MHz
• Input Voltage: 3.3-5V

Useful Links:

• DataSheet
