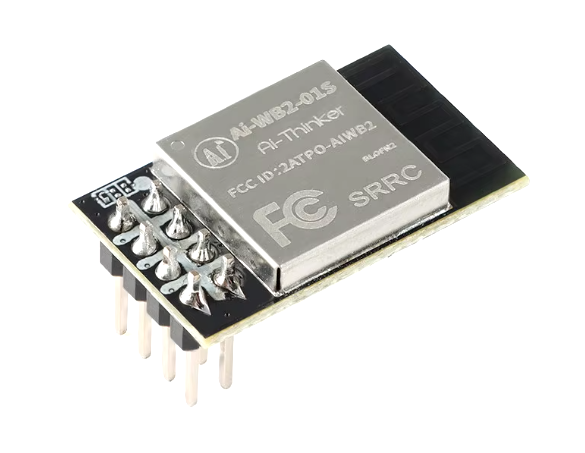

Ai-WB2-01S WiFi Bluetooth Module

Ai-WB2-01S WiFi Bluetooth Module

Ai-WB2-01S is a high-performance Wi-Fi and Bluetooth development module designed by LTD. Based on the powerful ESP32 processor, the module supports a variety of wireless communication protocols; it complies with security standards such as WEP, WPA, WPA2, WPA3 for Wi-Fi and BLE 4.2 and 5.0 for Bluetooth. The advanced ESP32 chip provides a wide range of peripheral interfaces with low power consumption, including 32-bit UART, GPIO, ADC, PWM, I2C and SPI. Ai-WB2-01S is designed for use in various fields such as smart home applications, mobile and electronic devices, and IoT projects. Thanks to its high processing power and versatile connectivity options, it offers developers flexible and scalable solutions.

Ai-WB2-01S WiFi Bluetooth Development Module Technical Information:

• Processor: Dual-core 32-bit CPU designed for low power consumption.
• Frequency: Main frequency up to 240 MHz, processing power up to 600 DMIPS.
• Memory: 520 KB internal SRAM, external 4 MB PSRAM support.
• Communication Protocols: Supports interfaces such as UART, SPI, I2C, PWM, ADC and DAC.
• Wireless Communication: Integrated with WiFi (802.11 b/g/n) and Bluetooth (BLE), supports data uploading via WiFi.
• Camera Support: Compatible with OV2640 and OV7670 cameras, supports internal flash.
• Storage: External data storage with TF card support.
• Energy Management: Supports multiple sleep modes, provides low power consumption.
• Software Support: Comes with embedded LwIP and free RTOS.
• Working Modes: Supports STA, AP and STA + AP modes.
  Network Configuration: Supports smart configuration and AirKiss one-click distribution network.
• Development Support: Provides secondary development.
• Power Requirements: 5V voltage, 2A current requirement.
• Dimensions: 2.5x1.45 cm.



• DataSheet
