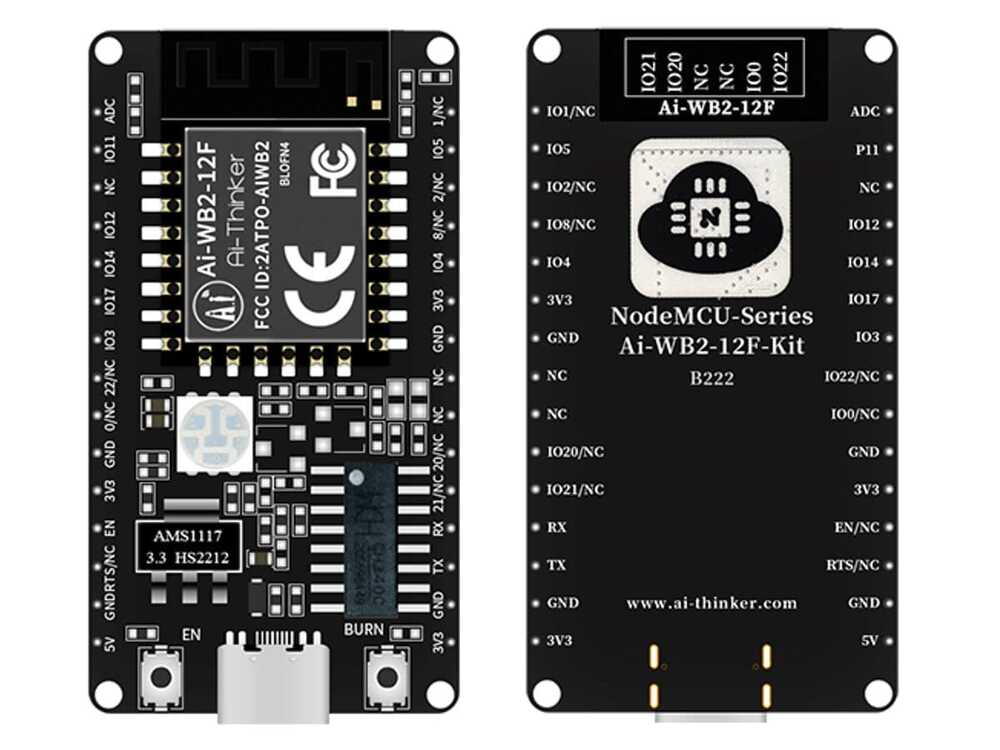

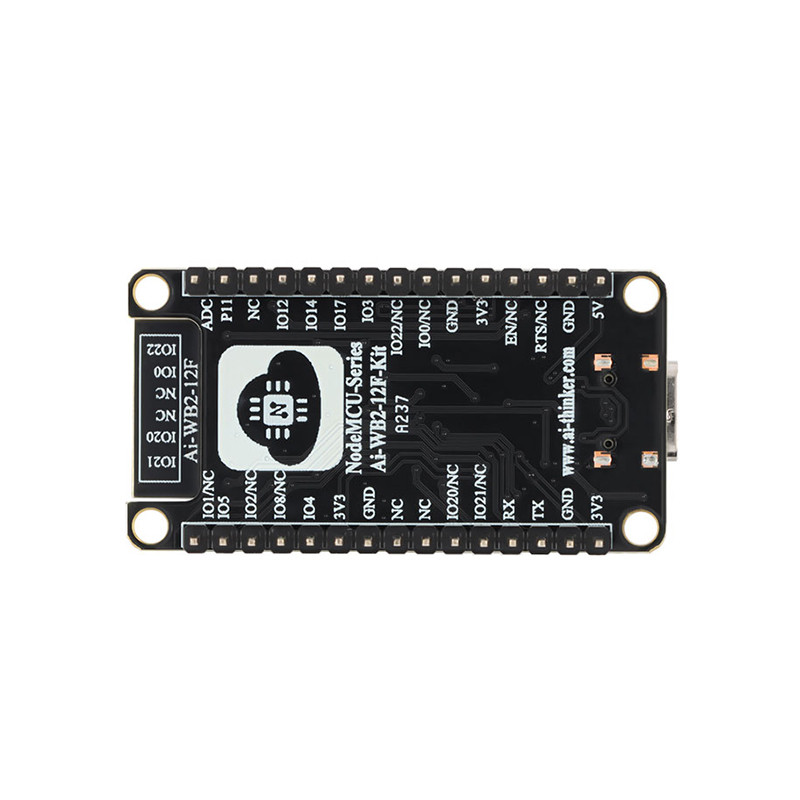

Ai-WB2-12F-Kit



Ai WB2 12F Kit is a development board for Ai WB2 12F modules. Ai WB2 12F, Shenzhen Ai Thinker Technology Co., Ltd. It is a Wi-Fi and Bluetooth module offered by The module implemented the unit and Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol, with a BL602 chip as the core processor. BL602 chip, low power consumption, 276 KB RAM and SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR and GPIO. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronics, smart homes and other fields.

Ai-WB2-12F-Kit Technical Specifications:



  • Model: Ai WB2 12F Kit
  • Package: DIP 30
  • Size: 49.66*25.40(±0.2)mm
  • Built-in PCB Antenna
  • Frequency: 2400~2483.5MHz
  • Working temperature: 40 ℃ ~ 85 ℃
  • Power supply Support support: 3.3V or 5V
  • Power supply current: ≥500mA
  • Interfaces: UART/GPIO/ADC/PWM/I2C/SPI I/O 11
  • Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
  • Flash: Default: 4 MByte
