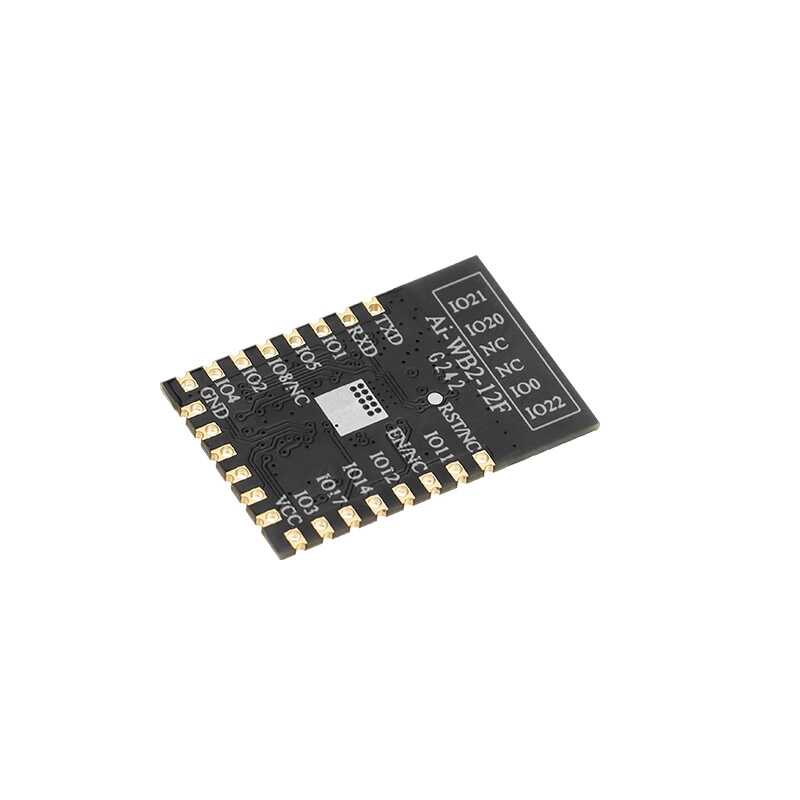

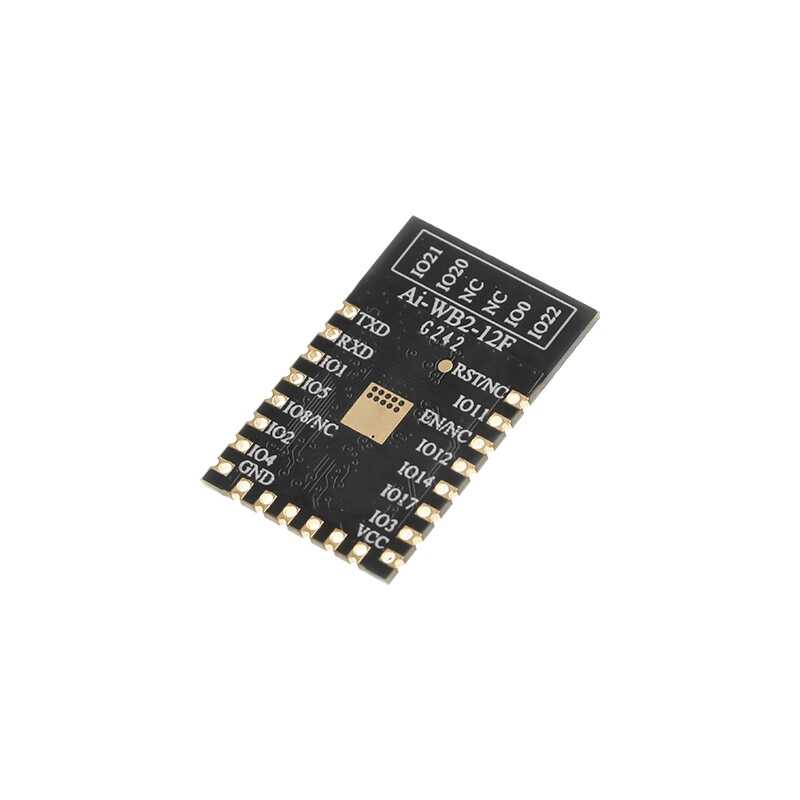

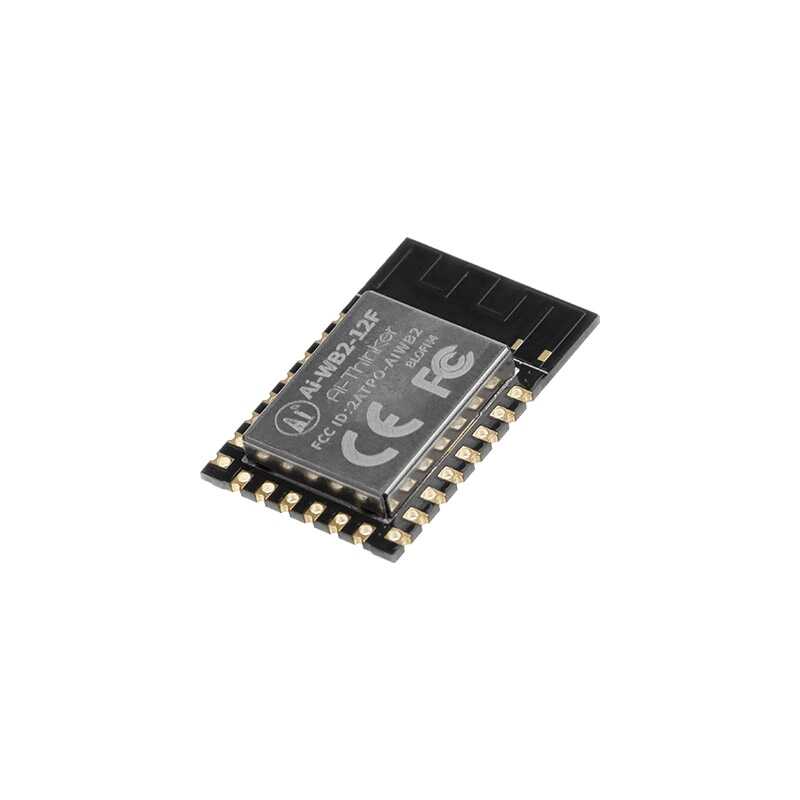

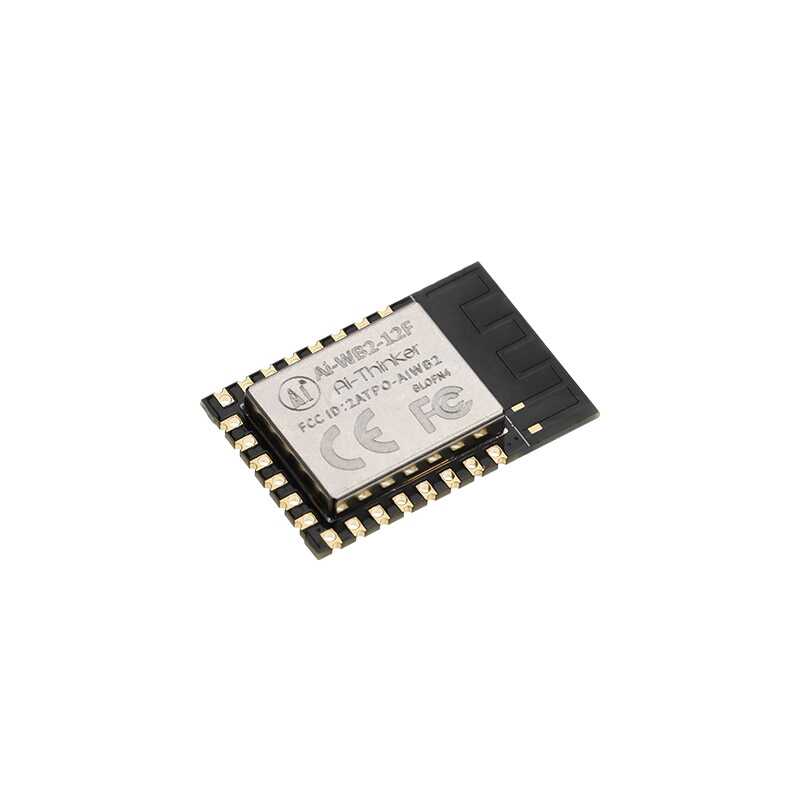

Ai-WB2-12F WiFi and Bluetooth Module

Ai-WB2-12F WiFi and Bluetooth Module

Ai-WB2-12F WiFi and Bluetooth Module, It is a Wi-Fi - Bluetooth module developed by LTD. The module is equipped with the BL602 chip as the core processor. In Wi-Fi WPS - WEP - WPA - WPA2 and WPA2 Enterprise - WPA3, bluetooth supports BLE 5.0 protocol. The BL602 chip has many peripheral interfaces, including a low-power 32-bit UART, GPIO, ADC, PWM, I2C, SPI. It is used in many areas such as mobile and electronic devices, smart home appliances and the Internet of Things (IoT).

Ai-WB2-12F WiFi and Bluetooth Module Features;

• Dimension: 24 x 16 x 3.1mm
• Antenna Form: Built-in PCB Antenna
• Spectrum Range: 2400 / 2483.5Mhz
• Power Supply Range: 2.7V / 3.6V
• Supply Current: 500mA
• Support Interface: UART / GPIO / ADC / PWM / I2C / SPI
• Number of Input / Output Ports: 15
• Serial Rate: 115200 bps
• Operating Temperature：- 40℃ / 85℃
