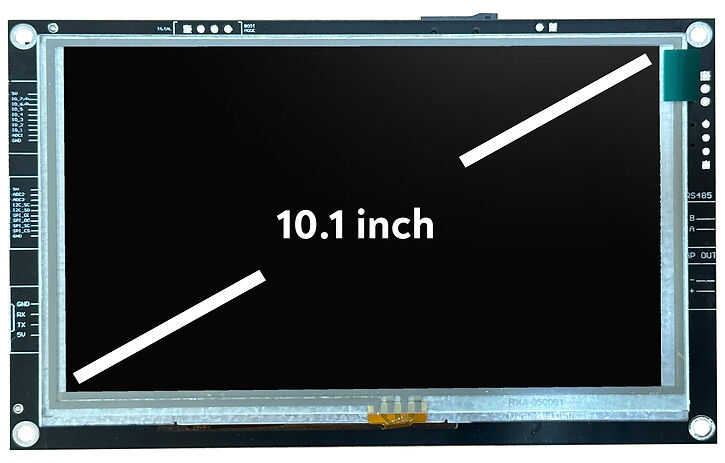

AIR1024X600S101_I 10.1inch Resistive Touch Industrial HMI Display

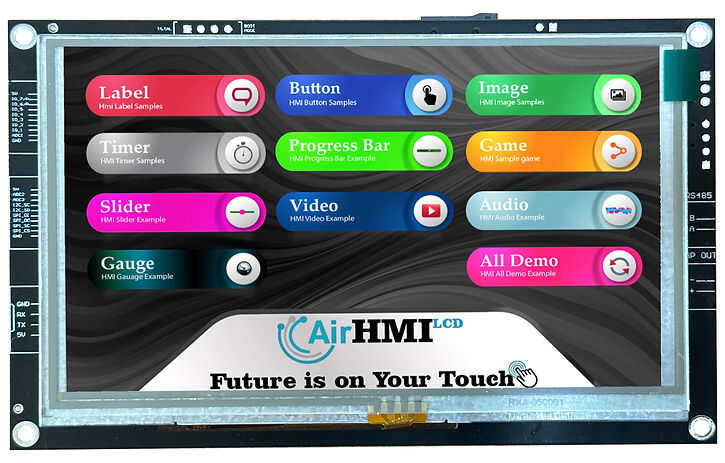

AIRHMI TFT screens; They are customizable TFT screens that can create an easy GUI with drag and drop editor and C-based programming language. Thanks to its user-friendly interface, you can easily create your designs. AIRHMI helps in this regard with many objects such as button, label, image, progress bar, slider, gauge (gauge). Thanks to its editor and simple use structure, you can quickly prepare your design by saving time in your developments. In addition, you can easily manage your projects with the UART, GPIO, ADC, PWM, I2C and SPI pins you will need. Communication with the control card is provided via TTL (UART) interface. (It supports RS-485 communication. It is optionally available). The built-in Buzzer can be ringed simply. You can use it with buzzer function sets every time you touch the touch or alerts. You can enrich your projects visually and audibly with video and audio playback features in the Industry series. With AIRHMI screens, the limit of your projects will be your imagination.

Difference from other AIRHMIs

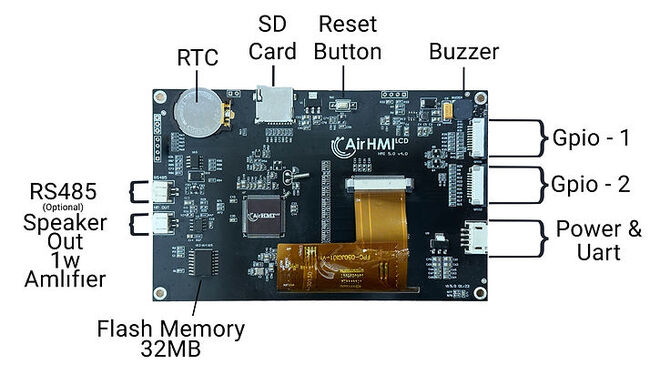

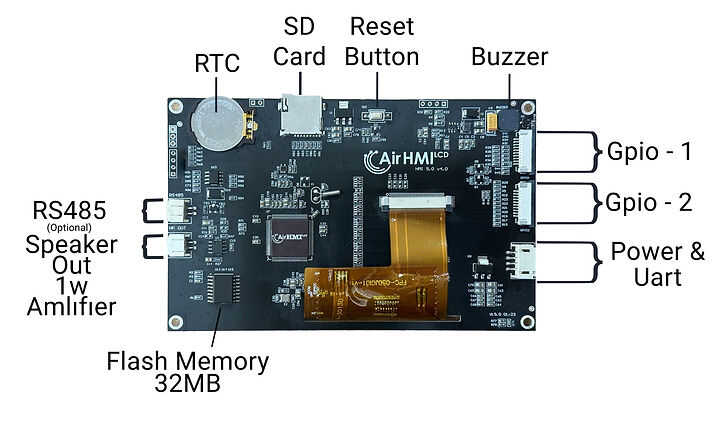

There are three different series of AIRHMI TFT displays. It meets your needs with Elementary, Advanced and Industry options, respectively. The Industry series is the most powerful version in terms of hardware. It stands out with its 32MB memory, 5xGPIO, 2x PWM or GPIO, 2x5V output, 3x ADC, 1xI2C, 1xSPI, Internal Buzzer, Video and Audio playback features. With its large Flash capacity, it provides more space for your projects. It provides communication with different protocols thanks to GPIO, PWM, ADC, I2C, SPI support. AIRHMI is the perfect display for control and monitoring between man and machine.

AIR1024X600S101_I 10.1inch Resistive Touch Industrial HMI Display Technical Specifications:

  • 1024x600 resolution
  • 65K colors
  • 32MB RAM
  • 16MB Flash Memory
  • 5V supply
  • TTL (UART) serial communication
  • Audio & Video playback feature
  • RS485 (optional)
  • 5x GPIO
  • 2x 5V output
  • 1x ADC
  • Internal RTC
  • Built-in Buzzer
  • SD card support
AIR1024X600S101_I 10.1inch Resistive Touch Industrial HMI Display Pin Diagram:
AIR1024X600S101_I 10.1inch Resistive Touch Industrial HMI Display Product Dimensions:
