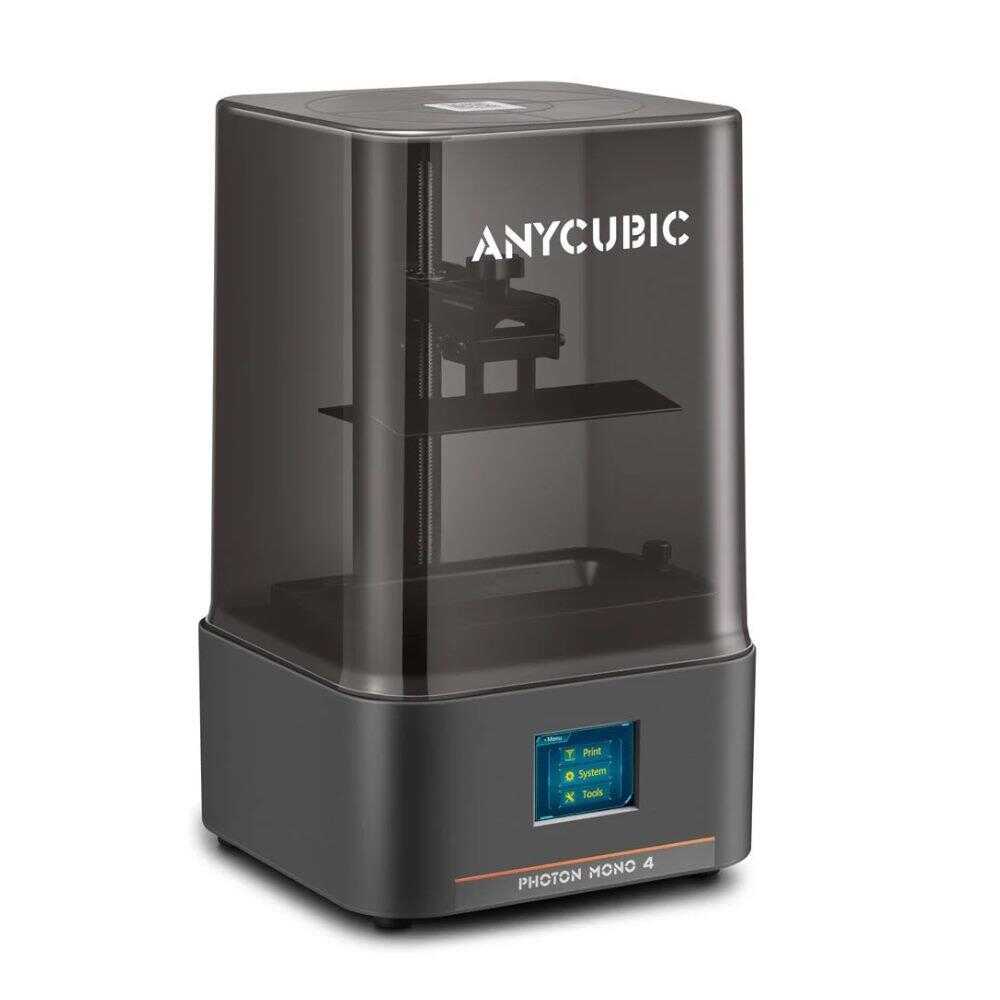

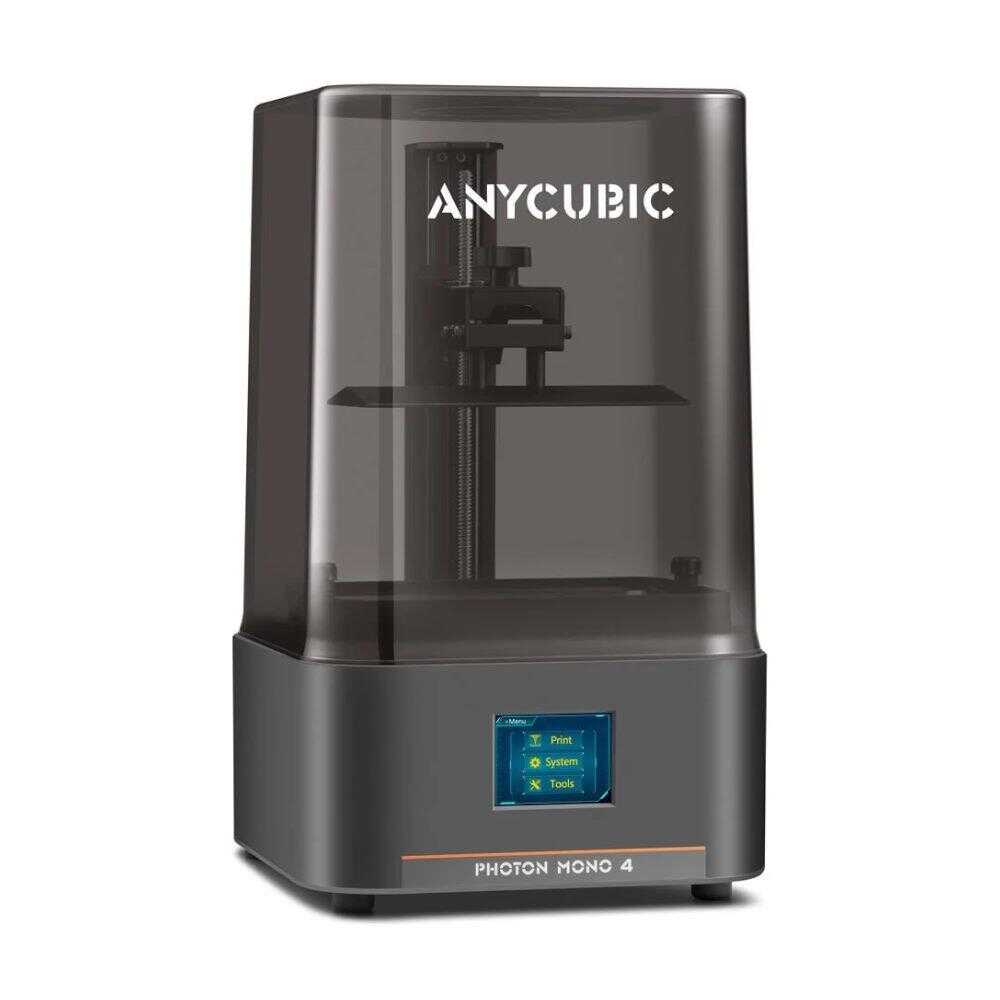

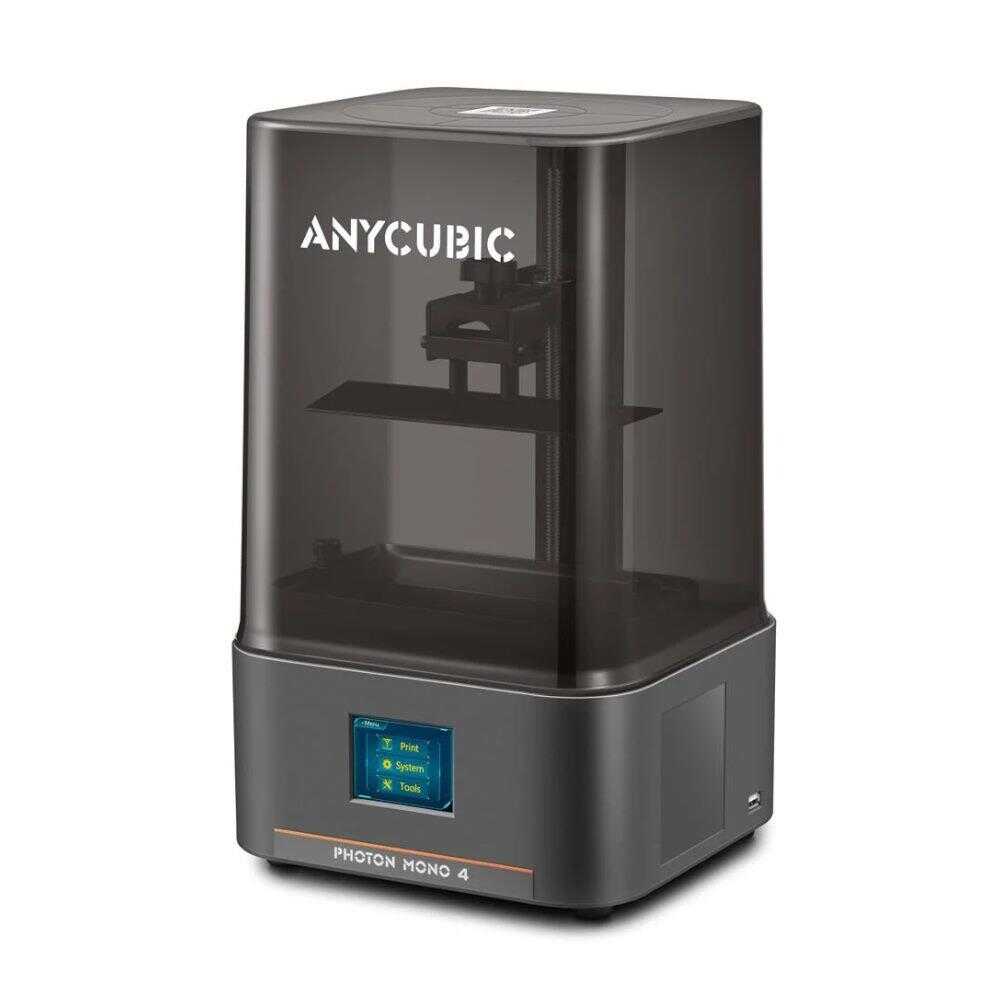

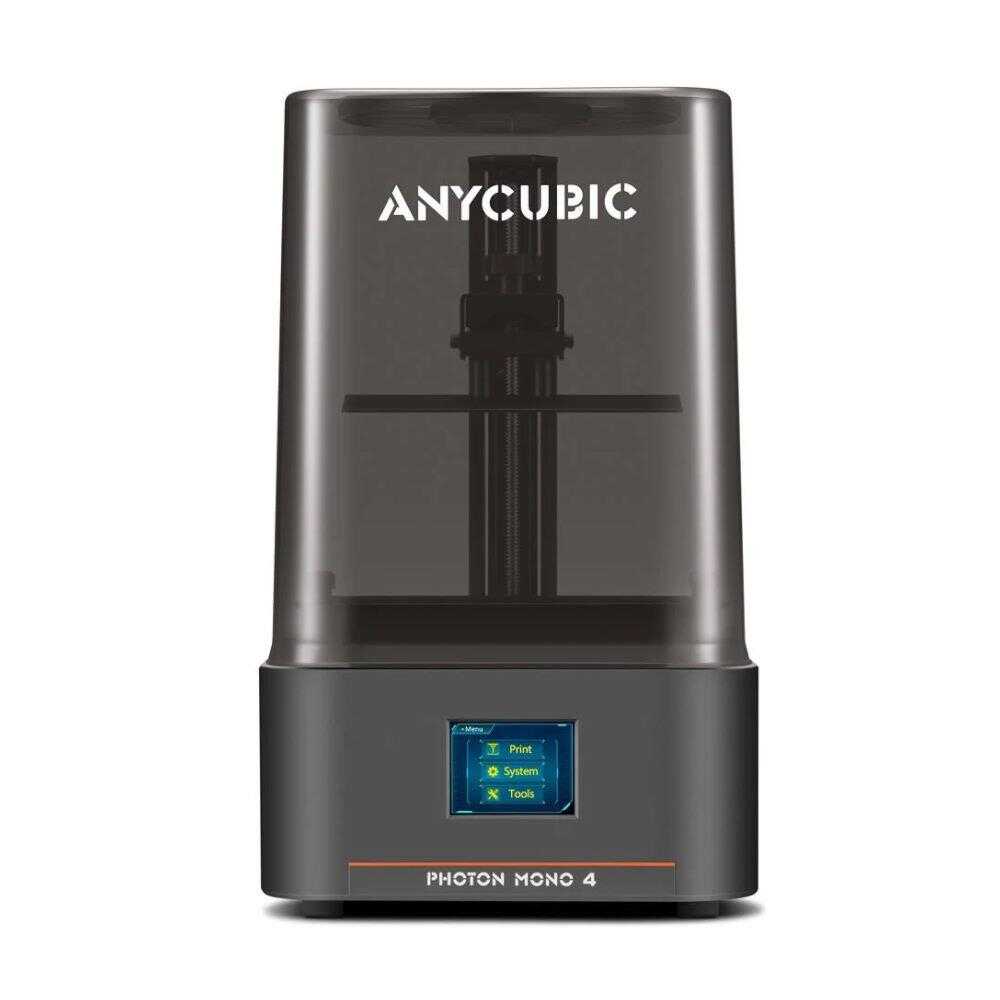

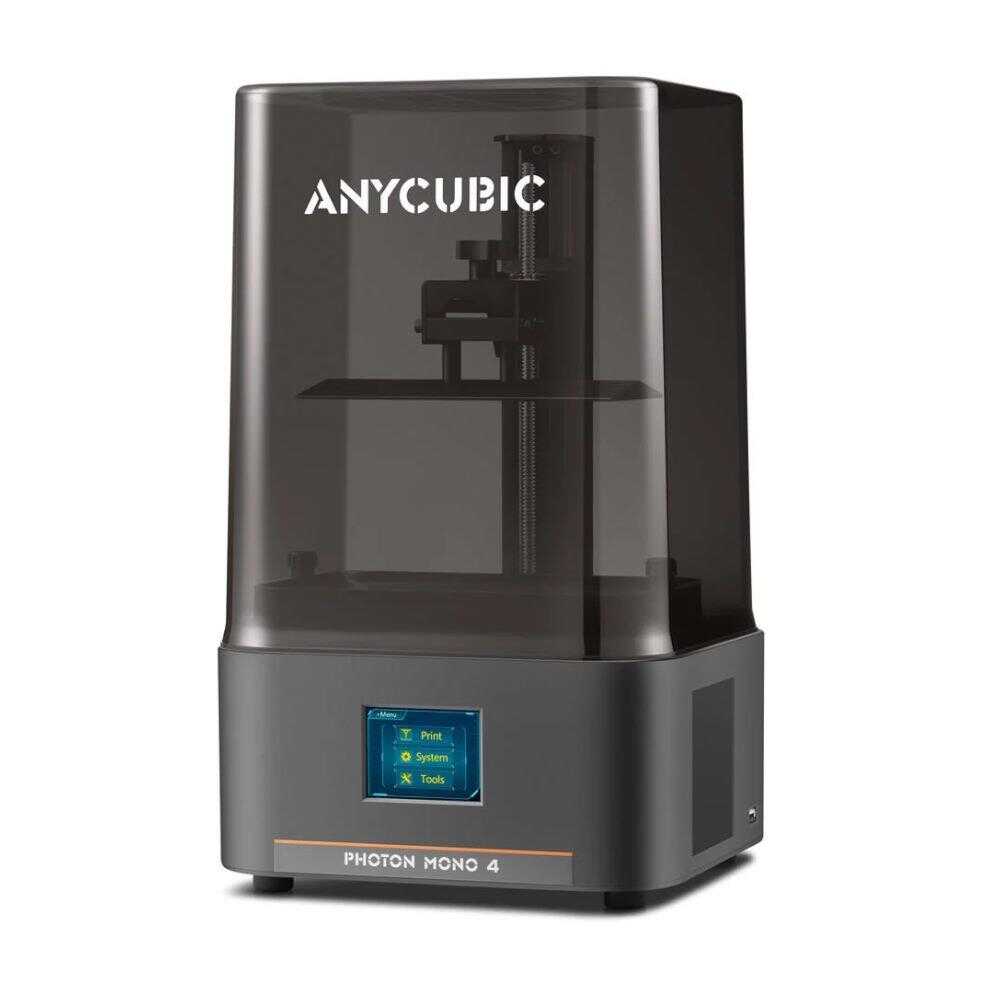

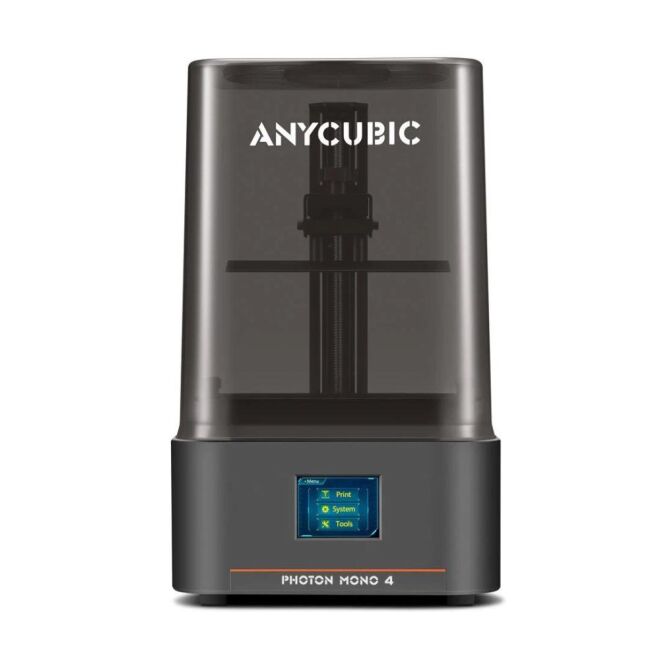

Notify me when its in stockAnycubic PHOTON MONO 4

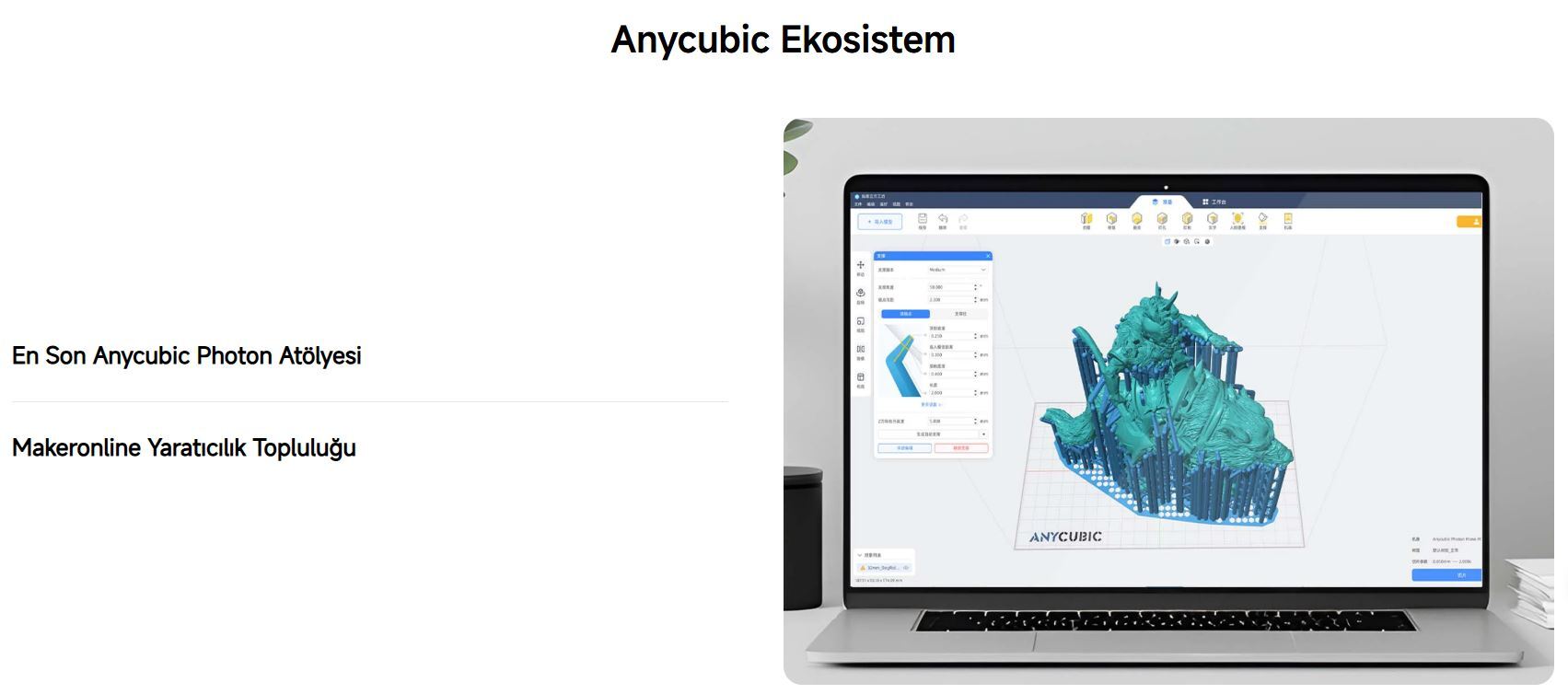

Anycubic Photon Mono 4 is an entry-level resin (LCD/MSLA) 3D printer that delivers rich detail and smooth surface quality at an affordable price thanks to its 7" 10K (9024 × 5120) mono LCD and LighTurbo parallel light source. XY-axis resolution goes down to 17 µm; the laser-textured build plate improves first-layer adhesion and reduces failed prints. You can easily manage the entire process from model setup to slicing with Anycubic Slicer (New) and LCD/System Updates.
With a print speed of 50–70 mm/hour (depending on resin), a layer height range of 0.03–0.15 mm, and ~3000 µW/cm² light intensity, it provides reliable results for fine-detailed works such as figures, miniatures, jewelry, and dental models. For detailed usage and tips, it is supported by the official Photon Mono 4 Wiki; for remote monitoring and control, it integrates with the mobile app ecosystem. Beginners can also benefit from the MakerOnline community for inspiration and ready-to-print models.
Anycubic PHOTON MONO 4 Technical Specifications:
| Printing Technology | LCD / MSLA (UV resin) |

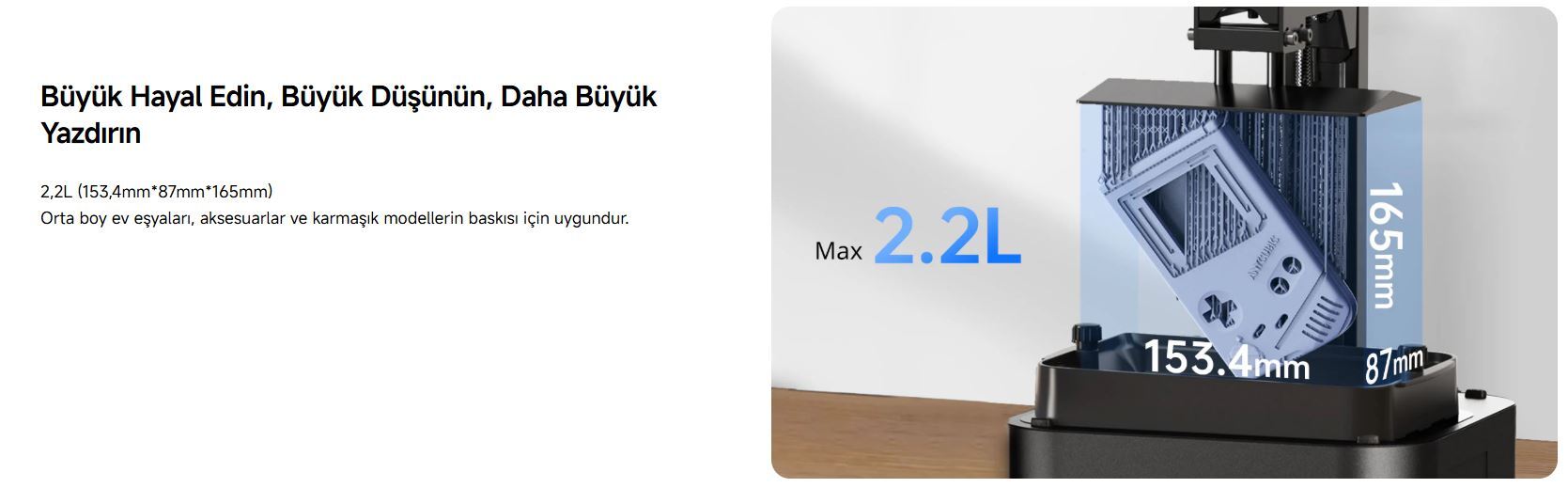

| Build Volume | 153.4 × 87 × 165 mm (≈ 2.2 L) |
| LCD Screen | 7" Mono 10K (9024 × 5120) |
| XY Resolution | 17 µm × 17 µm |
| Layer Height | 0.03–0.15 mm |
| Print Speed (0.1 mm) | Standard resin: ≤ 50 mm/hour | Fast resin: ≤ 70 mm/hour |

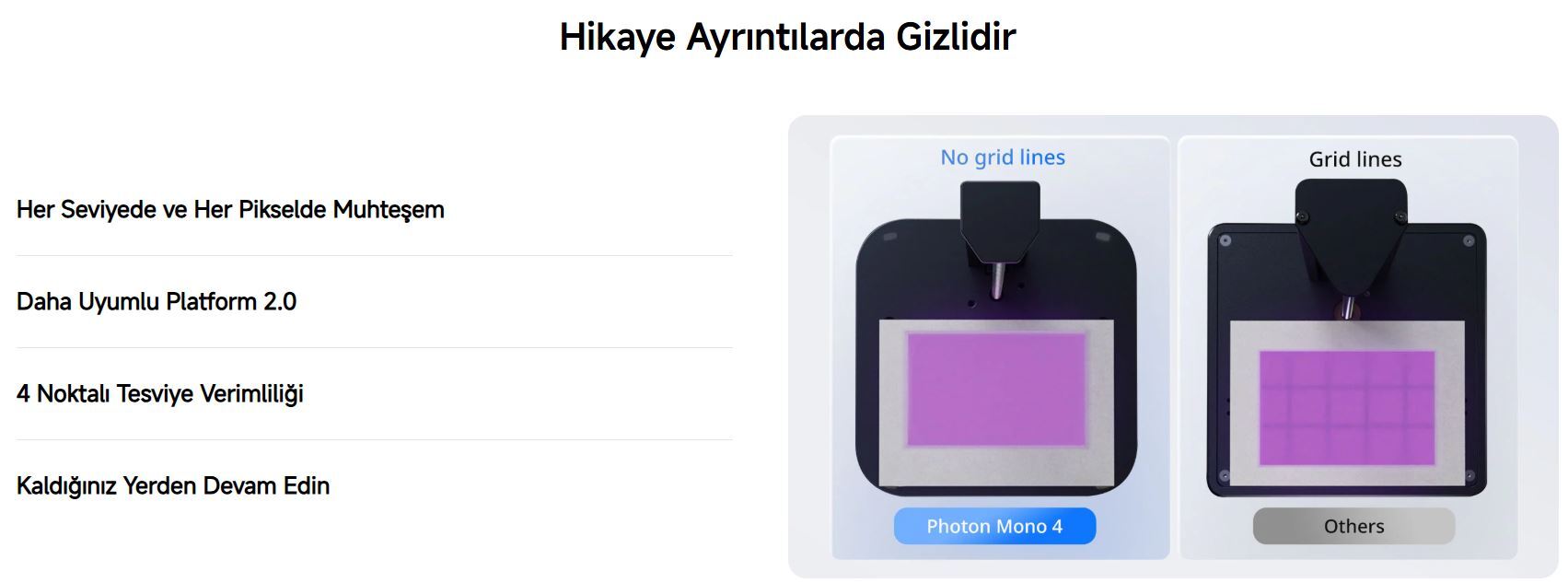

| Light Source | LighTurbo parallel matrix; light uniformity 80–90% |
| Light Intensity | ~3000 µW/cm² |
| Build Plate | Laser-textured aluminum (improved first-layer adhesion) |
| Release Film | FEP |
| Material Compatibility | Fast, water-washable, standard, ABS-like, plant-based resins, etc. |
| Device Screen | 2.8" touch TFT |
| Connectivity | Offline printing via USB drive |
| Z-Axis Accuracy | 0.01 mm (mechanical resolution) |
| Dimensions | 230 × 235 × 391 mm |
| Weight | ≈ 4 kg |
