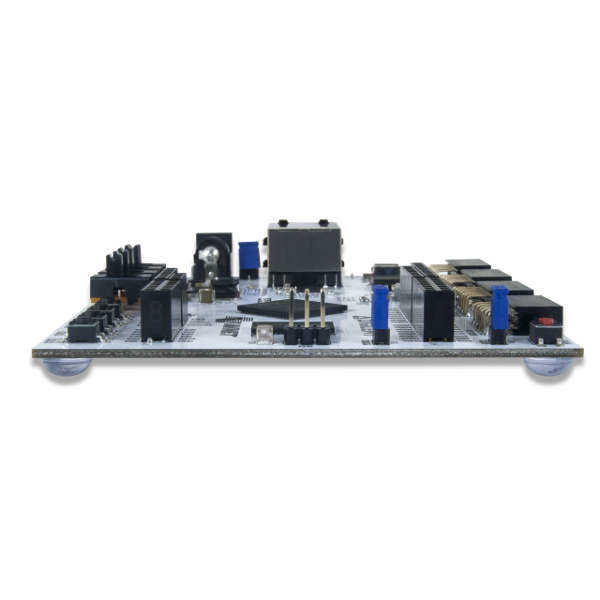

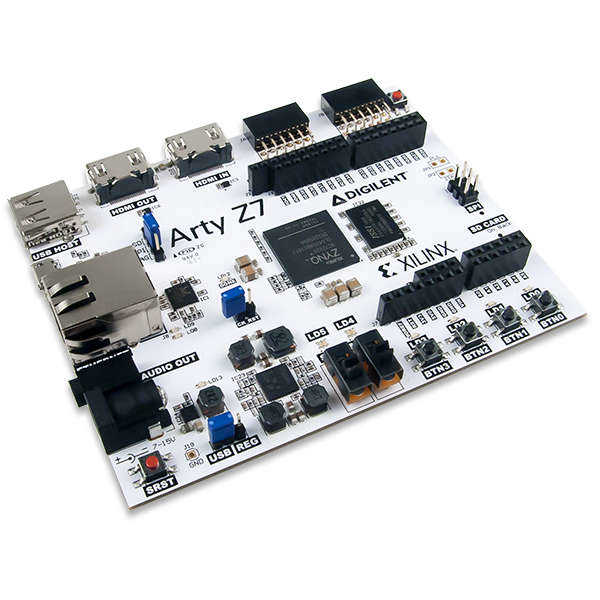

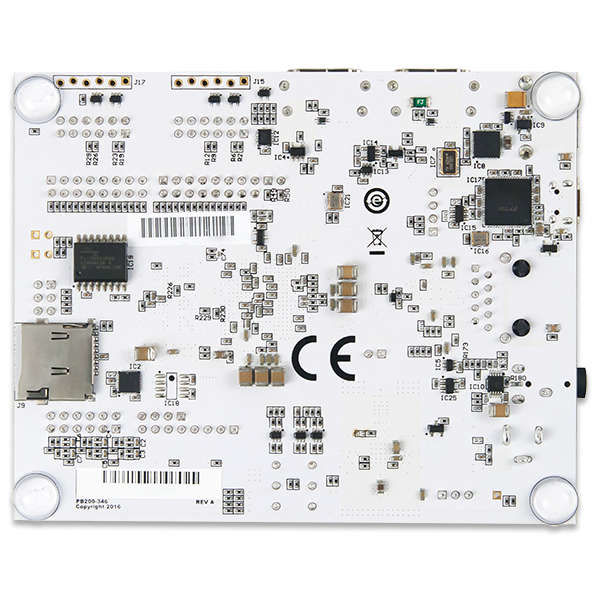

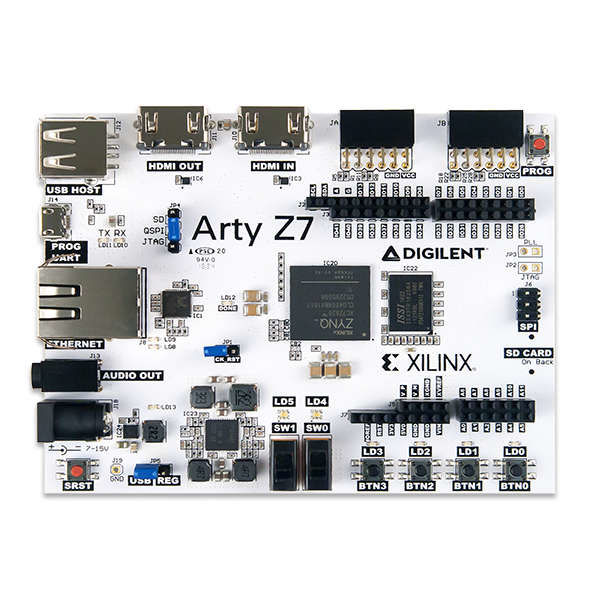

Arty Z7-20 FPGA Developement Board

ARTY Z7-20 APSoC Zynq-7000 FPGA Developement Board

The Arty Z7 is a ready-to-use development platform designed around the Zynq-7000™ All Programmable System-on-Chip (AP SoC) from Xilinx. The Zynq-7000 architecture tightly integrates a dual-core, 650 MHz ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic. This pairing grants the ability to surround a powerful processor with a unique set of software defined peripherals and controllers, tailored by you for whatever application is being conquered. The design process is very straightforward and provides a systematic path between defining your custom peripheral set and bringing it's functionality up to a Linux OS running on the processor. Digilent provides a number of materials and resources for the Arty Z7 that will get you up and running with this process quickly.



Product contents: ARTY Z7-20 developement board

• FPGA part: XC7Z020-1CLG400C
• 1 MSPS On-chip ADC: Yes
• Processor: Dual ARM Cortex A9
• Look-up Tables (LUTs): 53,200
• Flip-flops: 106,400
• Block RAM: 630 KB
• Clock Management Tiles: 4
• Available Shield I/O: 49

Arty Z7-20 Technical Specifications:
ZYNQ Processor:

• 650MHz dual-core Cortex-A9 processor
• DDR3 memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
• High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
• Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
• Programmable from JTAG, Quad-SPI flash, and microSD card
• Programmable logic equivalent to Artix-7 FPGA

Memory:

• 512MB DDR3 with 16-bit bus @ 1050Mbps
• 16MB Quad-SPI Flash with factory programmed 48-bit globally unique EUI-48/64™ compatible identifier
• microSD slot

Power:

• Powered from USB or any 7V-15V external power source

USB and Ethernet:

• Gigabit Ethernet PHY
• USB-JTAG Programming circuitry
• USB-UART bridge
• USB OTG PHY (supports host only)

Audio and Video:

• HDMI sink port (input)
• HDMI source port (output)
• PWM driven mono audio output with 3.5mm jack

Switches, Push-buttons, and LEDs:

• 4 push-buttons
• 2 slide switches
• 4 LEDs
• 2 RGB LEDs

Expansion Connectors:

• Two standard Pmod ports
• 16 Total FPGA I/O
• Arduino/chipKIT Shield connector
• Up to 49 Total FPGA I/O (see table above)
• 6 Single-ended 0-3.3V Analog inputs to XADC
• 4 Differential 0-1.0V Analog inputs to XADC
