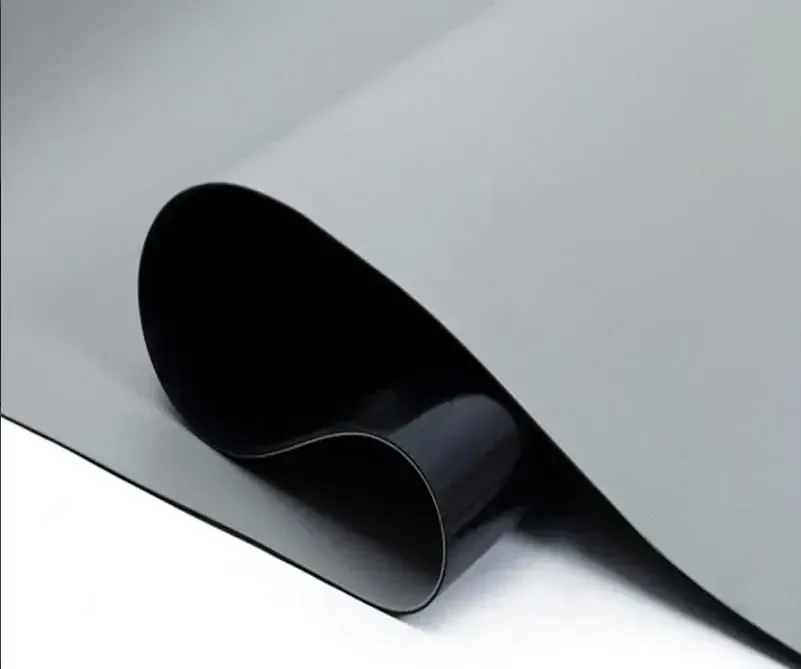

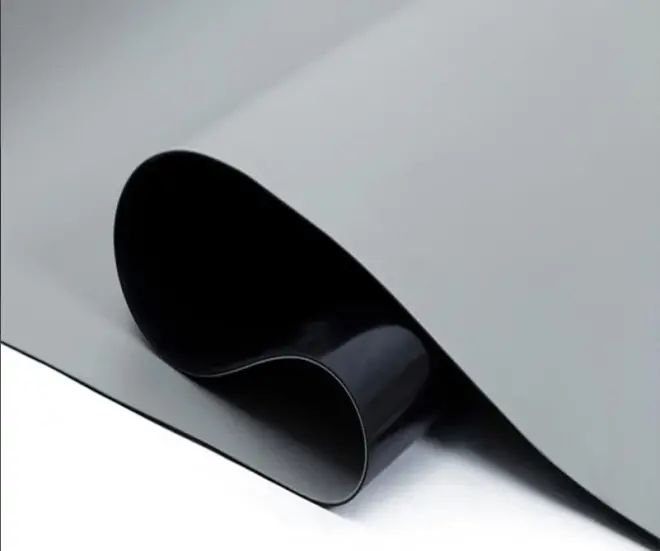

Bakon BK123 Gray Antistatic Cover 1x10m Thickness 2mm (ESD Mat)
In semiconductor electronic industry production workshops and advanced laboratories, anti-static covers should be placed on the workbenches in the working environment with the grounding cable connected to the ground line to eliminate the damage caused by static electricity. The working surface also releases static electricity from the human body, and the tools such as tweezers used on the workbench will contact the human body and the workbench. In this way, a uniform potential can be obtained to a large extent. In the use of ESD covers, electrostatic discharge wide-area surface absorption such as electrostatic discharge is absorbed by the antistatic mat, and the effect of the electrostatic protector is achieved. Personnel working with the Anti-static Workbench Cover connected to the Anti-static Workbench Cover are grounded with the Anti-static Wrist Strap to protect against the damage caused by static electricity.
The Anti-static Workbench Cover has a dual-layer composite structure. The top layer is made of antistatic material with a thickness of 0.3/0.5mm, and the bottom layer is made of conductive synthetic rubber with a thickness of 1.5/1.7mm.
The Bakon BK123 ESD Gray Table Cover, with a long service life, is resistant to acid, alcohol, chemical solvents, etc. It is a durable and easy-to-clean product.
| Technical Specifications |
|
Brand
|
Bakon |
|
Model
|
BK123 |
|
Product Code
|
12.02.01.23 |
|
Description
|
ESD Table Cover
|
|
Color
|
Gray |
|
Tensile Strength
|
3.6MPA |
|
Breaking / Elongation
|
%188 |
|
Perpendicular Tear Strength
|
2.6KN/M
|
|
Elasticity Percentage
|
%14 |
|
Impact Relaxation Temperature
|
250℃ (No damage) |
|
Compression Permanent Change Rate
|
%25:17.9 Compression 700℃x22H |
|
Temperature Resistance
|
300℃
|
|
Surface Resistance Range
|
106Ω Rs 109Ω |
|
Compliance
|
IEC-61340 |
|
Thickness
|
2mm |
|
Width
|
1m
|
|
Length
|
10m |
|
Weight
|
28/30 kg |
