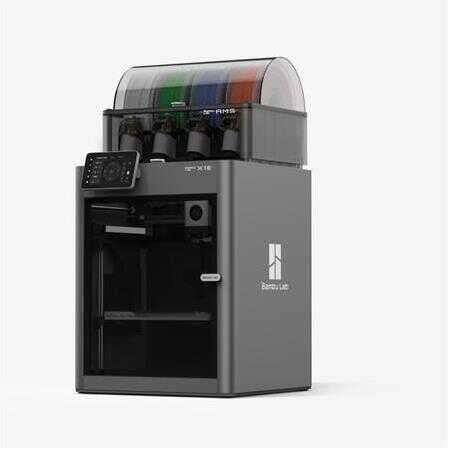

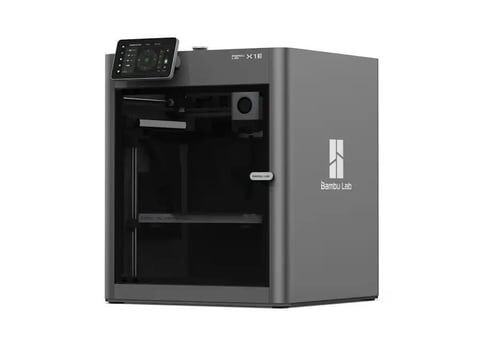

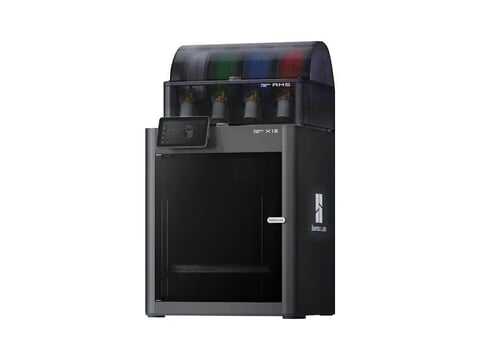

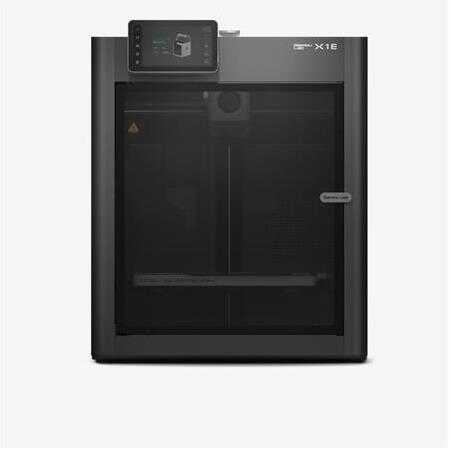

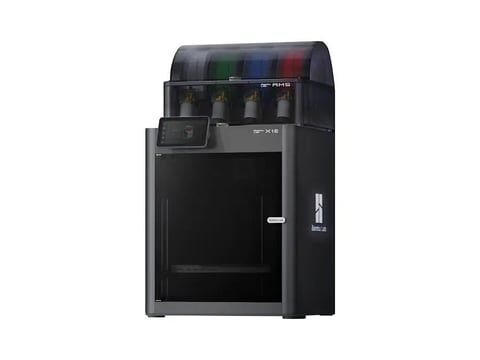

Bambu Lab X1E Combo 3D Printer

Bambu Lab X1E Combo

Product features:

• Ability to print in two colors or multi-materials thanks to double extruder technology
• Large printing area - 256x256x300mm
• High resolution printing - up to 50 micron layer thickness
• Fast print speed - up to 150mm/s
• Automatic calibration printing platform
• High precision axis motors
• Closed filament feeding system
• Wi-Fi connection and mobile application support

Usage areas:

• 3D prints for hobby and education purposes
• Prototype production
• personalized products
• Industrial and commercial applications

Technicial Specifications:

• Printing Technology: FFF (Fused Filament Fabrication)
• Number of Extruders: 2
• Filament Diameter: 1.75mm
• Supported Filament Materials: PLA, PETG, TPU, ABS, etc.
• Software Support: Bambu Studio, Cura, Simplify3D, etc.
• Weight: 20kg
• Dimensions: 585x585x625mm

Additional Features:

• Automatic filament change
• Ability to continue in case of power outage
• Sound and vibration reduction technology
• Modular design and easy maintenance

Bambu Lab X1E Combo stands out as an ideal 3D printer for professional and hobbyist users with its advanced features and versatile usage areas.

Advanced and More Connection Options

Stable Ethernet Connection, WPA2-Enterprise Authentication Wi-Fi Connection

The X1E provides robust networking in complex environments by providing the option to connect to your devices via the newly added Ethernet port. Ethernet connectivity can also be used in crowded wireless signal environments. Additionally, the X1E meets stringent network security requirements by providing WPA2-Enterprise Wi-Fi Authentication (EAP-PEAP/EAP-TLS/TAP-TTLS) and separate physical kill switches for both Wi-Fi and Ethernet.

Heavy Duty Air Filtration

Effectively Filter 3D Printing Particles and VOCs

We combined a G3 pre-filter, an H12 HEPA filter and a high-quality coconut shell activated carbon filter to ensure optimal air filtration. Advanced filtration can effectively reduce excess odors and particles when printing in less ventilated environments.

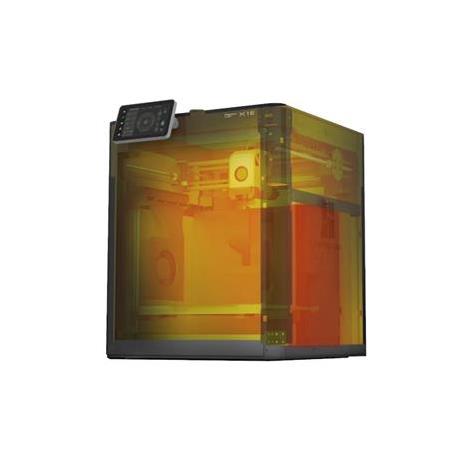

Active Heating and Controlled Room Temperature

Reduce Warping, Improve Layer Bonding

The X1E can actively heat and regulate the chamber temperature. Accurately controlled chamber temperature (up to 60°C or 140°F) improves print quality, especially for filaments prone to warping such as ABS and PC.

320 °C (608 °F) Nozzle Temperature

More Heat for Higher Temperature Materials

The higher nozzle temperature makes it possible to print higher performance materials such as PPA-CF/GF, PPS and PPS-CF. These new materials have better dimensional stability, heat resistance and mechanical performance.

Rugged High Speed ​​CoreXY

Super Fast and Rigid Structure for Continuous High Speed ​​Printing

Superior carbon fiber rods in the CoreXY motion structure reduce the weight of moving parts, allowing the X1E to achieve a tool head acceleration of 20,000 mm/s². This faster acceleration allows the X1E to maintain its maximum travel speed of 500 mm/s for longer periods of time, significantly reducing overall print time.

Vibration and Extrusion Compensation

Stable and Quality Prints Even at Higher Speeds

X1E can effectively compensate for XY axis vibrations and extrusion issues to ensure exceptionally smooth printing quality. All measurements are fully automatic, eliminating the need for manual adjustments.

AI Fault Detection

Reduce Filament Waste and Machine Downtime

X1E's AI algorithm can detect first-layer defects and spaghetti errors with the help of Lidar and computer vision. It then automatically pauses printing to prevent catastrophic errors later.

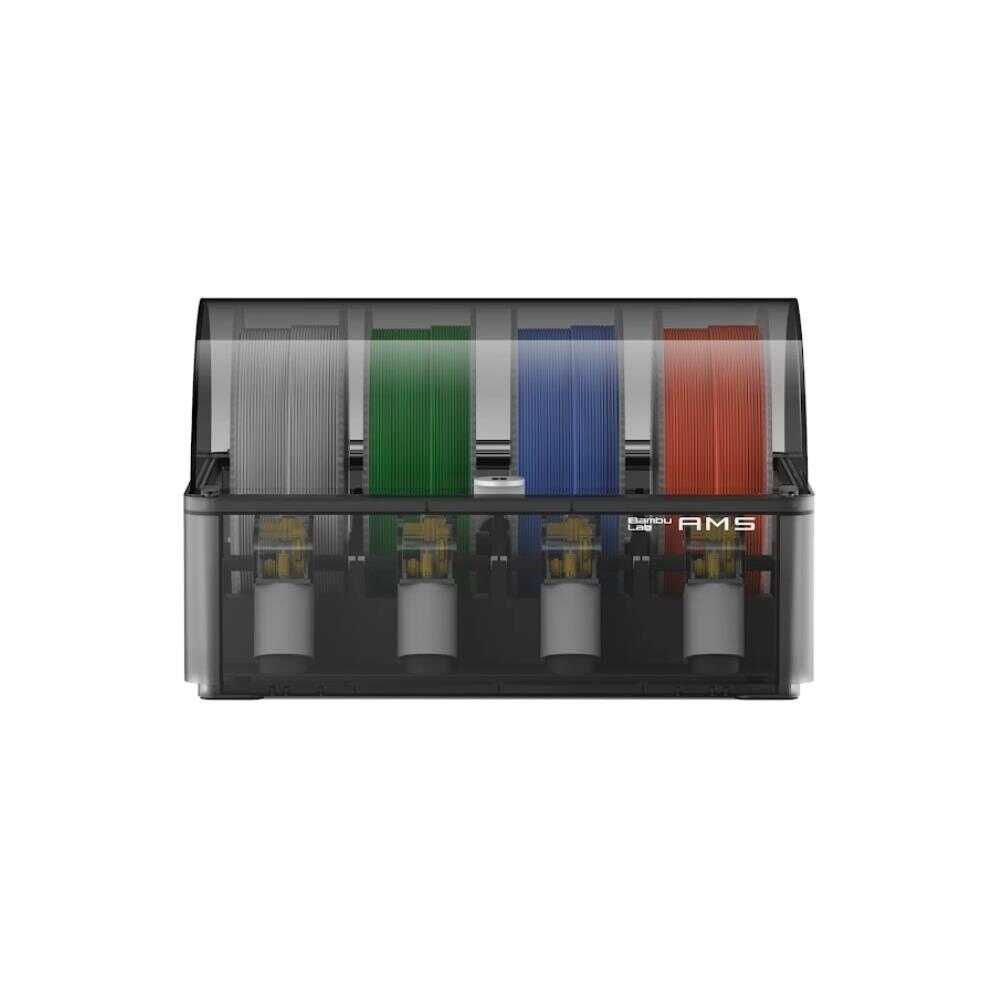

Intelligent Filament Management

Supports Automatic Filament Reloading and Enables Multi-Material Printing with Support Material for Improved Surface Quality

X1E can connect 4 Bamboo AMS systems in parallel to print with up to 16 spools of filament, good for printing special support materials for seamless surface and multi-color printing. The AMS system also supports automatic filament reloading to use all the filament on a spool before moving on to the next.

WHAT ARE THE DIFFERENCES BETWEEN THE BAMBU LAB X1 SERIES 3D PRINTERS?

Model	Bambu Lab X1E Combo	Bambu Lab X1 Carbon
Ideal Application	Enterprise & Engineering Applications	Personal Use, Production Startup
Max Hot End Temperature	320°C (608°F)	300°C (572°F)
Included Flexible Build Plate	Bambu Smooth PEI Plate	Bambu Cool/Engineering Plate
Active Chamber Heating	Yes	No
Max Chamber Temperature	60°C	N/A
Activated Carbon Filter Type	Coconut Shell Granulated	Coal Based Pellets
Air Pre-Filtered Grade	G13	N/A
HEPA Filter Grade	H12	N/A
Particulate Matter Filtration	Yes	No
VOC Filtration	Optimal	Capable
Ethernet Connectivity	Yes	No
WPA2-Enterprise Capability	Yes	No
Network Kill Switch	Yes (Ethernet & Wi-Fi)	No
Removable Network Module	Yes	No
802.1X Network Access Control	Yes	No
SUPPORTED MATERIALS
PPA-CF/GF, PPS, PPS-CF/GF	Ideal	No
ABS, ASA, PC, PA, PET	Superior	Ideal
PLA, PETG, TPU, PVA, PVOH	Optimal	Optimal

WHAT ARE THE TECHNICAL SPECIFICATIONS OF THE BAMBU LAB X1E 3D PRINTER?

GENERAL
Technology	Fused Deposition Modeling (FDM)
Motion System	CoreXY
Assembly	Fully-Assembled
Made in	China
MACHINE DIMENSIONS
Outer Dimensions (w/o AMS)* (L × W × H)	389mm × 389mm × 457mm (15.3" × 15.3" × 18")
Net Weight (w/o AMS)**	16kg (35.3lbs)
Gross Weight (w/ AMS)	~24.3kg (53.6lbs)
PRINTING PARAMETERS
Build Volume (L × W × H)	256mm × 256mm × 256mm (10" x 10" x 10")
Filament Diameter	1.75mm
Extrusion	Single
Nozzle Diameter	0.4mm (included) 0.6mm and 0.8mm sizes (optional purchases)
Nozzle Material	Hardened Steel (included) Stainless Steel option available
Max Hotend Temperature	320°C (608°F)
Max Build Plate Temperature	120°C (at 110V)
Max Active Heated Chamber Temperature	60°C (140°F)
Max Speed of Toolhead	500mm/s
Max Acceleration of Tool Head	20,000 mm/s²
Flow Rate	32mm³/s
ADDITIONAL FEATURES
MCU	Dual-Core 32-bit
Enclosed	Yes
Chassis Material	Steel
Shell	Aluminum & Glass
Build Surface	Bambu Smooth PEI Plate (included) Bambu High-Temperature Plate (optional purchase) Bambu Textured PEI Plate (optional purchase) Bambu Cool Plate (optional purchase)
Magnetic Bed	✓
All-Metal Hotend	✓
Removable Hotend Assembly	✓
Multi-Material 3D Printing	✓
Multi-Color 3D Printing	✓
Dual Automatic Bed Leveling	✓
Filament Sensor	✓
Filament Odometer	✓
RFID Sensor	✓
Active Heated Chamber	✓
Active Vibration Compensation	✓
Flow Control	✓
Power Loss Recovery	✓
AI First Layer Inspection	✓
AI Filament Spaghetti Detection	✓
Belt Tension Detection	✓
Closed Loop Fan	✓
Door Sensor	✓
Chamber Temperature Sensor	✓
Chamber Camera	✓
Camera Resolution	1920x1080p
Air Filters	Activated Carbon (Coconut Shell Granulated) & G3 Pre-filter grade & HEPA H12 filter grade
ELECTRONİCS
Display	5" Color LCD Touchscreen
Display Resolution	720p
Storage	4GB EMMC and Micro SD Card Reader
Control Interface	Touch Screen, Mobile App, PC Application
Motion Controller	Dual-Core Cortex M4
Application Processor	Quad ARM A7 1.2 GHz
Neural-Network Processing Unit	2 Tops
NETWORK CONTROL
Connectivity	Wi-Fi, Ethernet
Network Kill Switch	Wi-Fi & Ethernet
Wi-Fi Frequency Range	2400 MHz - 2483.5 MHz
Wi-Fi WPA2-Enterprise	EAP-PEAP EAP-TLS TAP-TTLS
Wi-Fi Transmitter Power (EIRP)	≤ 21.5 dBm (FCC) ≤ 20 dBm (CE/SRRC)
Wi-Fi Protocol	IEEE 802.11 b/g/n
Ethernet Socket	RJ45
Ethernet Speed	100 Mbps / Full Duplex
Removable Network Module	Yes
802.1X Network Access Control	Yes
BAMBU MICRO LIDAR
Laser (Class 1)	850 nm < 0.778 mW
Display Resolution	720p
Storage	4GB EMMC and Micro SD Card Reader
Control İnterface	Touch Screen, Mobile App, PC Application
Motion Controller	Dual-Core Cortex M4
Application Processor	Quad ARM A7 1.2 GHz
Neural-Network Processing Unit	2 Tops
SOFTWARE
Recommended Slicer	Bambu Studio Third-party slicers* like Cura, Super Slicer, and Prusa Slicer *Note some advanced features may not be supported with third-party slicers
Compatible OS	Windows, Mac OSX
Supported File Format(s)	3MF, STL
COMPATIBLE MATERIALS
Third-Party Filament	Yes
Superior Compatible Materials	ABS, PET, PC, Nylon / PA, ASA, Glass Fiber and Carbon Fiber Composites [NylonX, NylonG, etc.]
Ideal Compatible Materials	PPA, PPS, PPA-CF/GF, PPS, PPS-CF/GF
Optimal Compatible Materials	PLA, PETG, Flexibles [TPU, TPE] Support (PVA, Breakaway)
POWER
Input Voltage	100-240 VAC, 50/60 Hz
Max Power	750W (at 110V)
