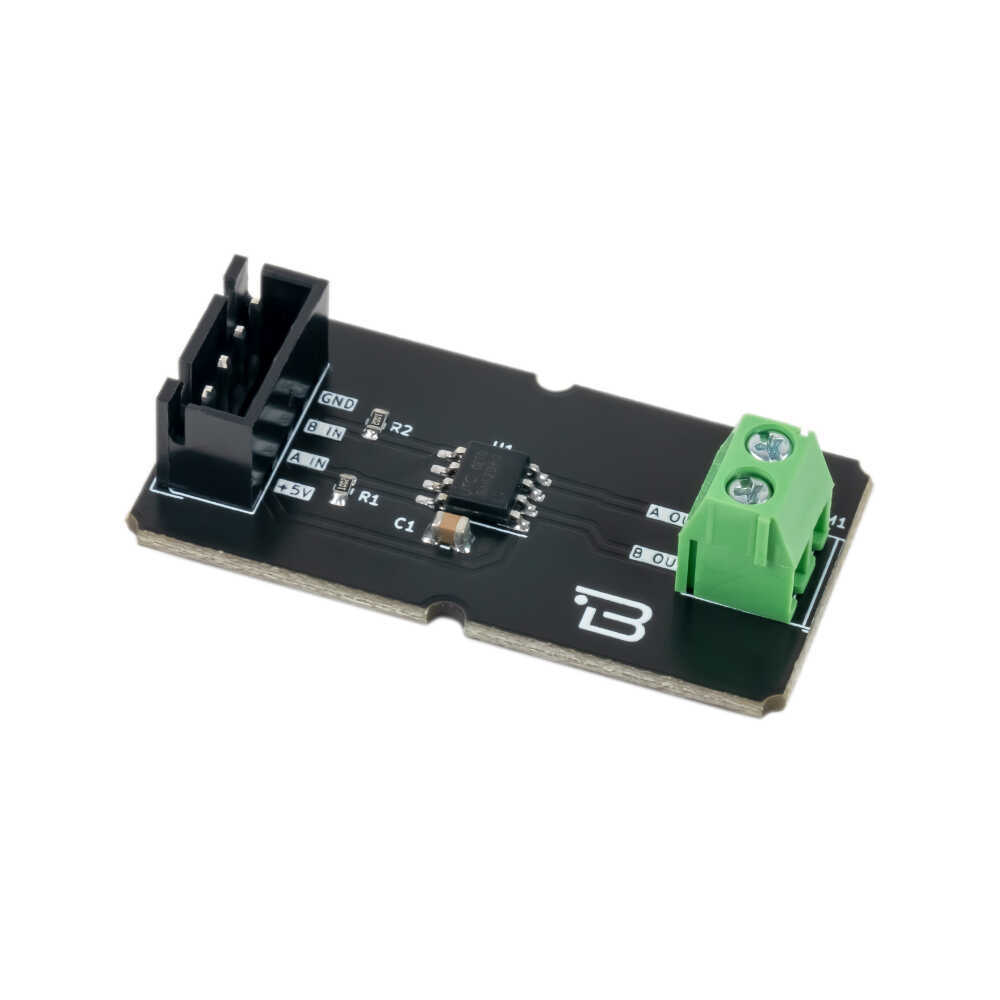

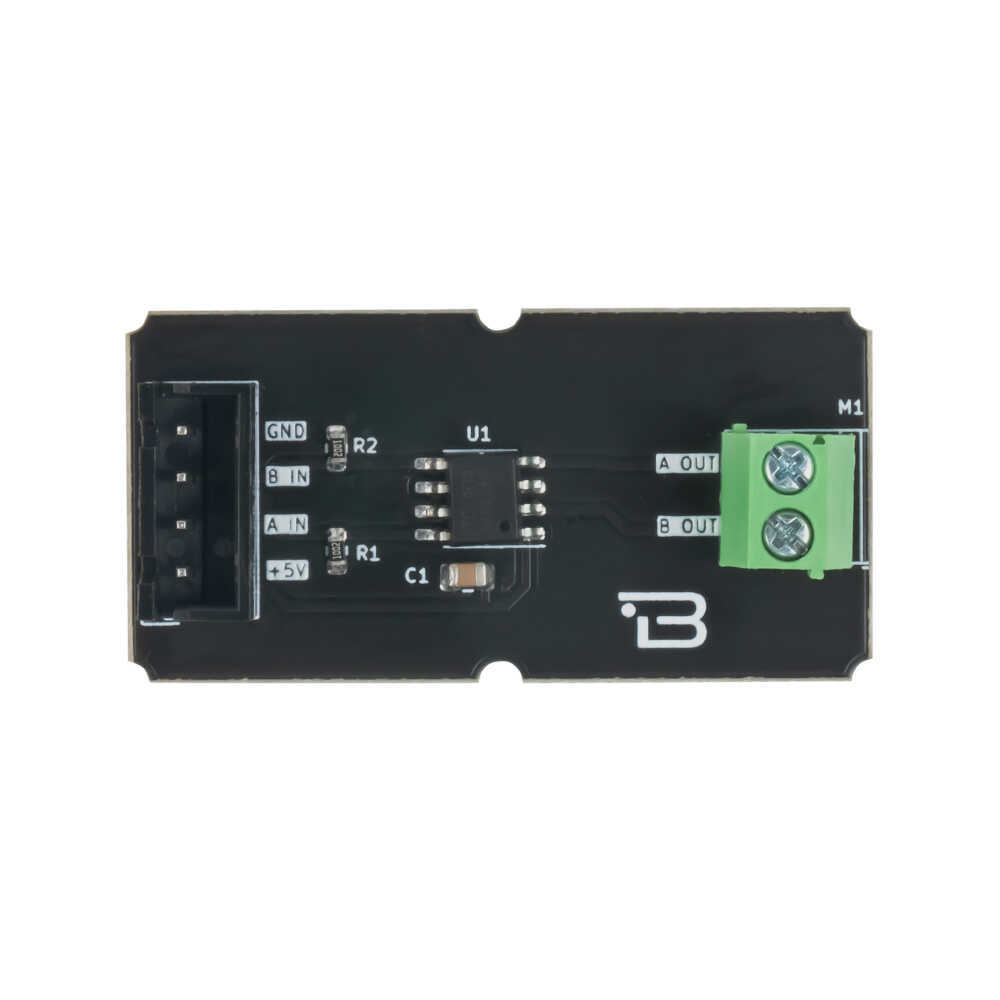

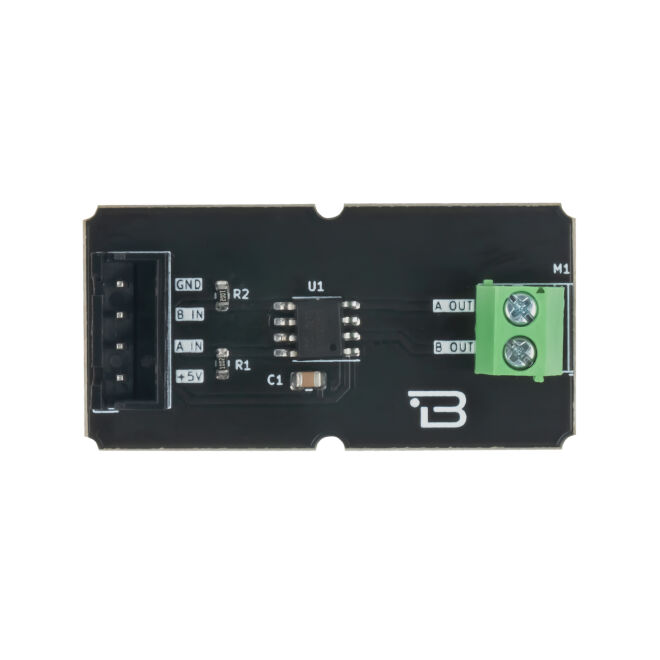

Boardoza BA6208 Motor Driver Breakout Board

The BA6208 Reversible Motor Driver Breakout Board is designed to control DC motors with forward and reverse direction capabilities. Featuring the BA6208 motor driver IC, this board is ideal for robotics, automation, and any application requiring precise motor control with simple input signals.

• Reversible Motor Driver: It can control a DC motor, allowing it to run both clockwise and counterclockwise.
• Integrated Oscillator: The IC includes an oscillator which simplifies the design and reduces component count by eliminating the need for an external frequency-setting component for motor rotation.
• Output Current: Capable of driving moderate load currents, typically up to 0.5 A, depending on the supply voltage and ambient temperature.
• Low Saturation Voltage: Features low saturation voltage to reduce power dissipation and increase efficiency.
• Built-in Protection Features: Includes thermal shutdown circuitry to protect against overheating.

Input Voltage: 4.5V to 15V

Functions: H-Bridge Small Type Motor Driver

Output Current: up to 500mA

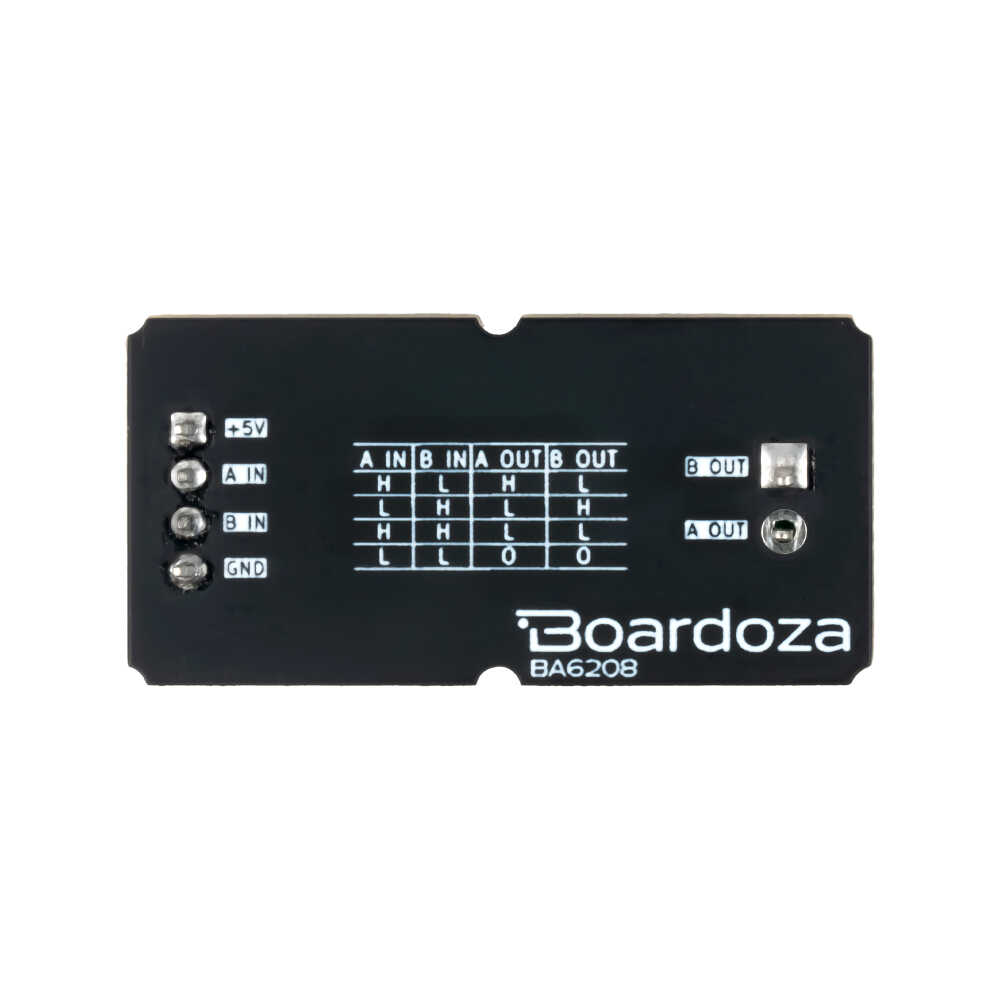

Control Interface: Digital (Forward, Reverse, Stop)

Operating Temperature: -20°C ~ +60°C

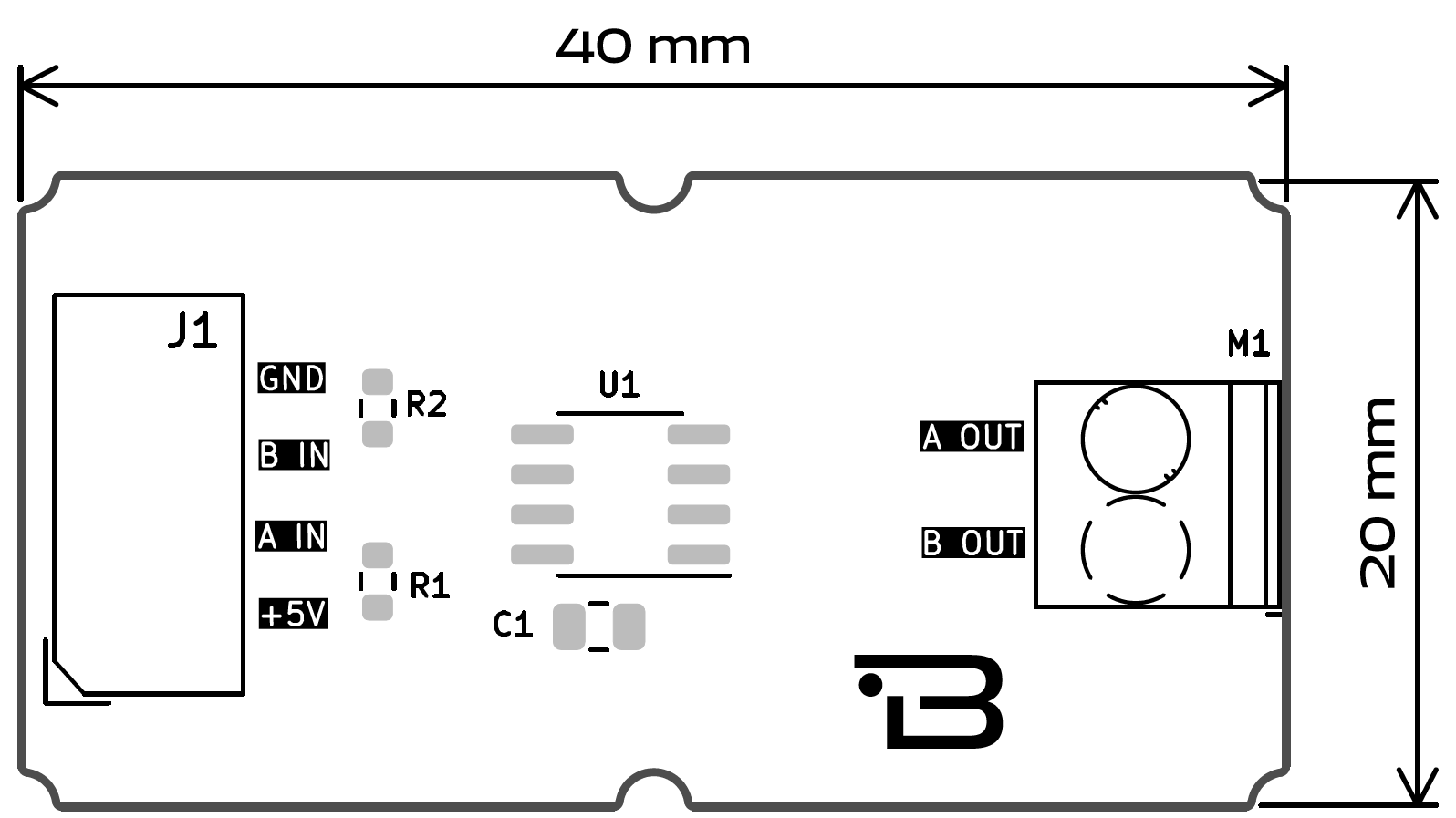

Board Dimensions: 20mm x 40mm
