Boardoza HX711 Analog to Digital Converter Board - ADC

Boardoza HX711 Analog to Digital Converter Board - ADC

The HX711 24-Bit Analog-to-Digital Converter (ADC) Module is designed for precision load cell measurements, making it ideal for electronic weighing scales and industrial control applications. It features a low-noise programmable gain amplifier and supports two selectable differential input channels. The module operates with low power consumption, making it suitable for battery-powered applications.

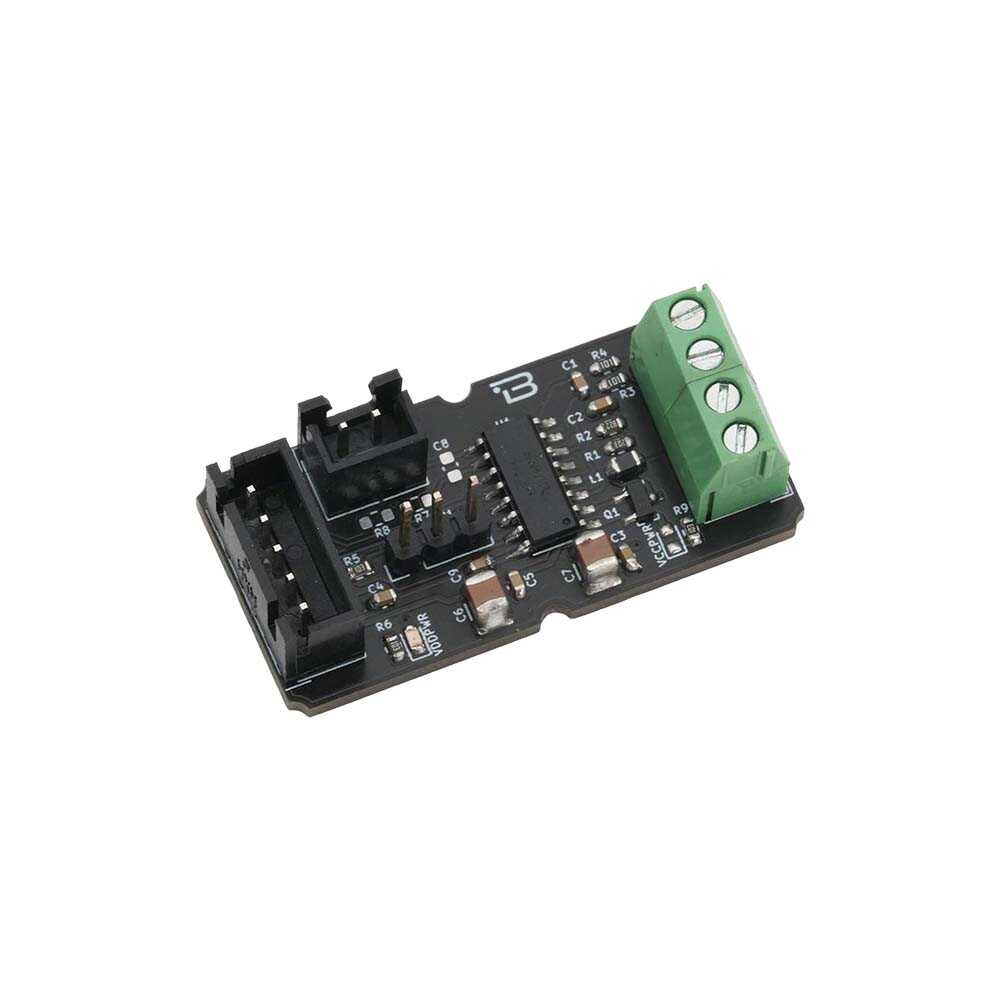

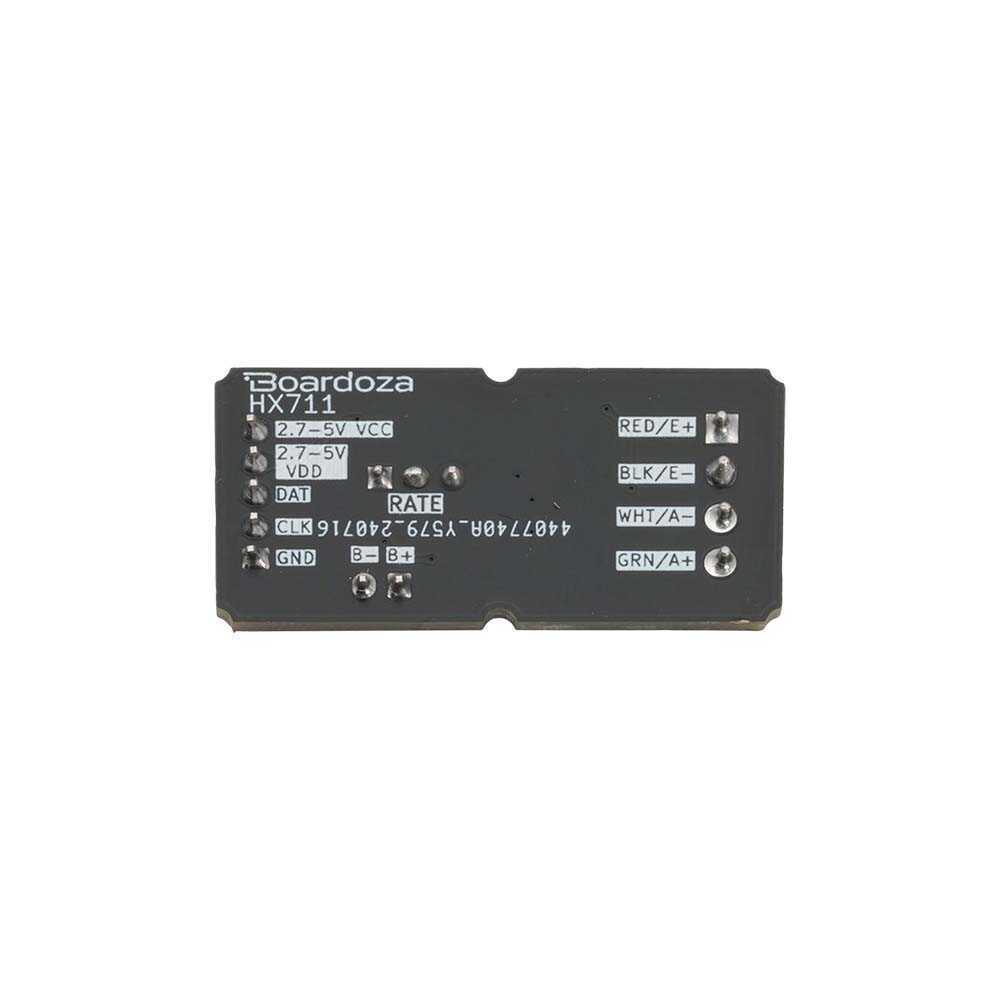

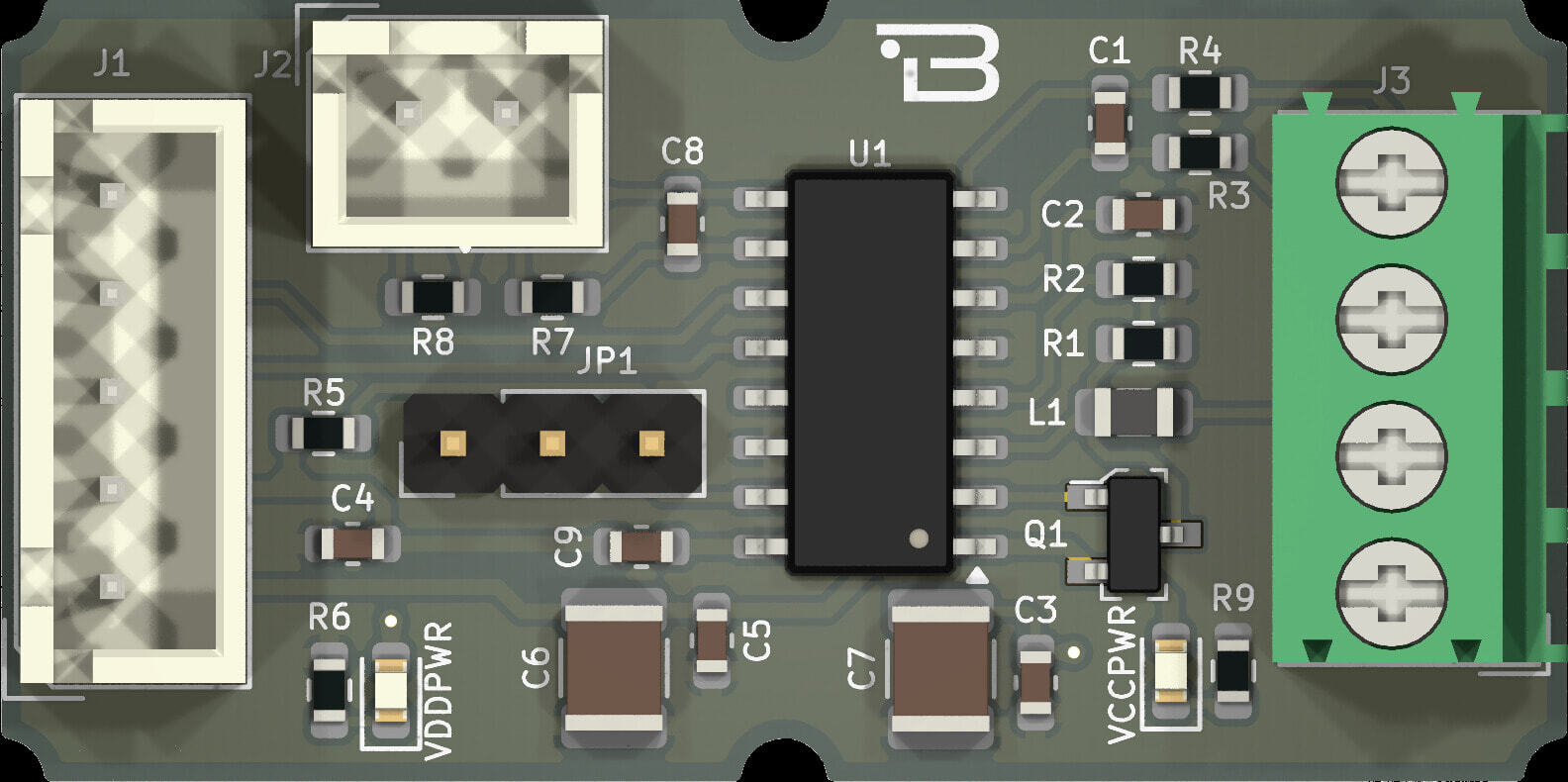

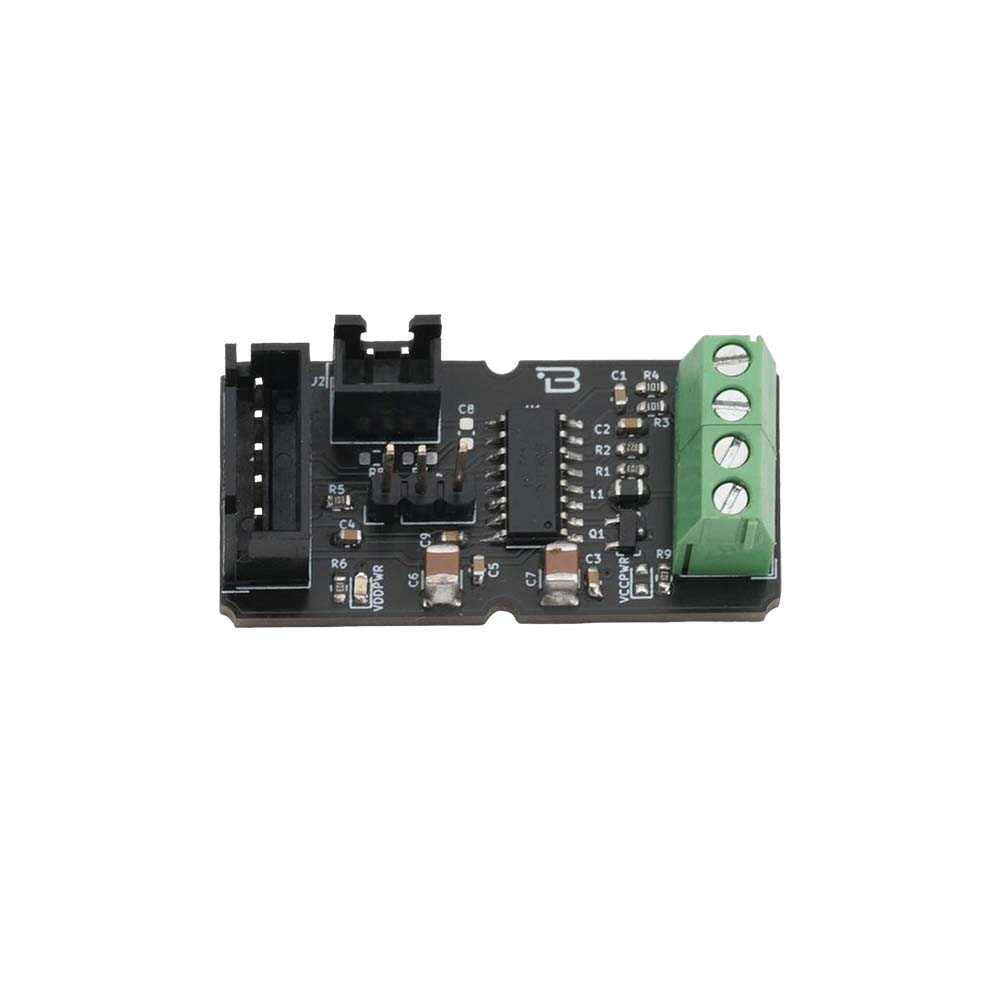

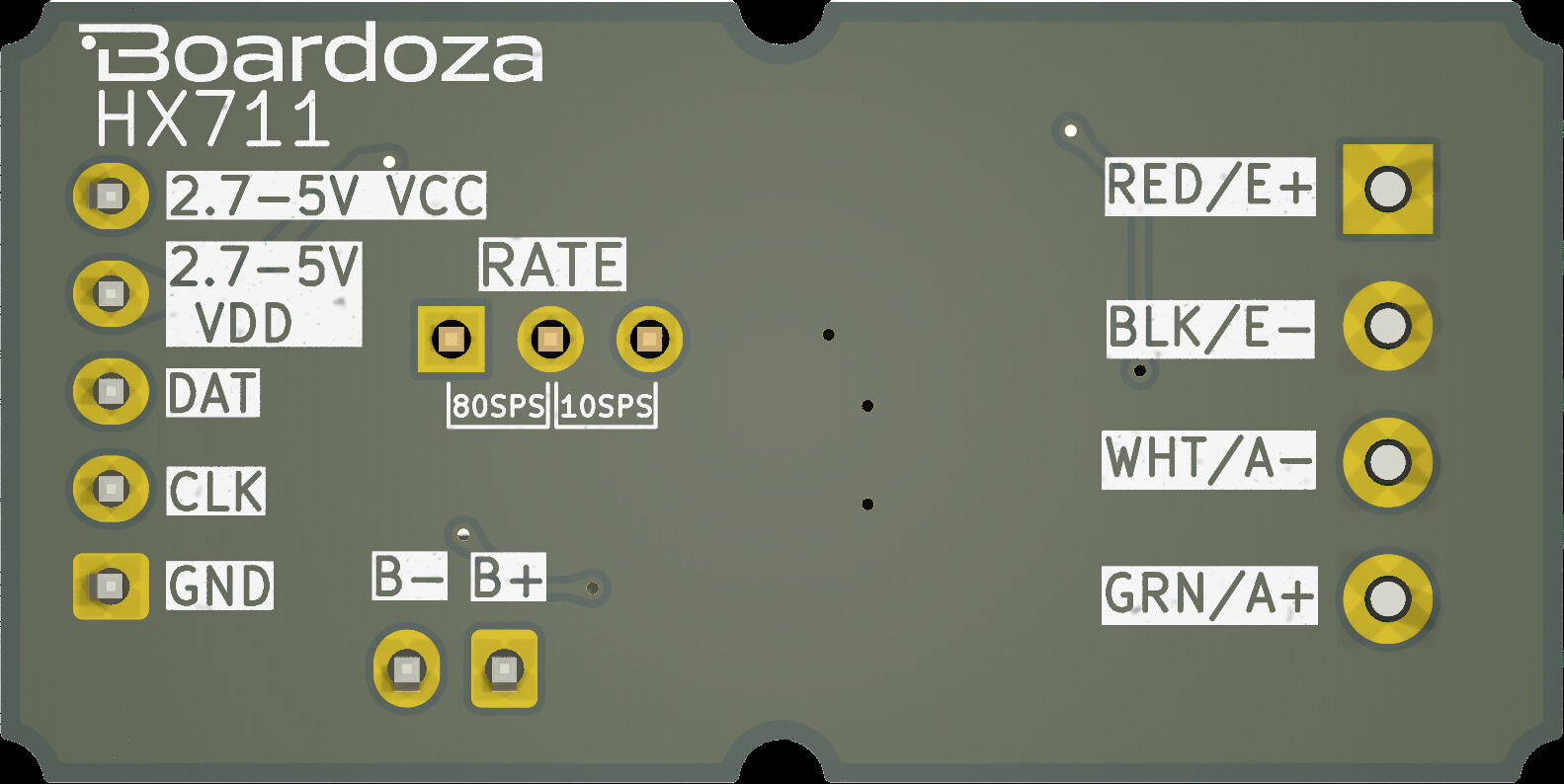

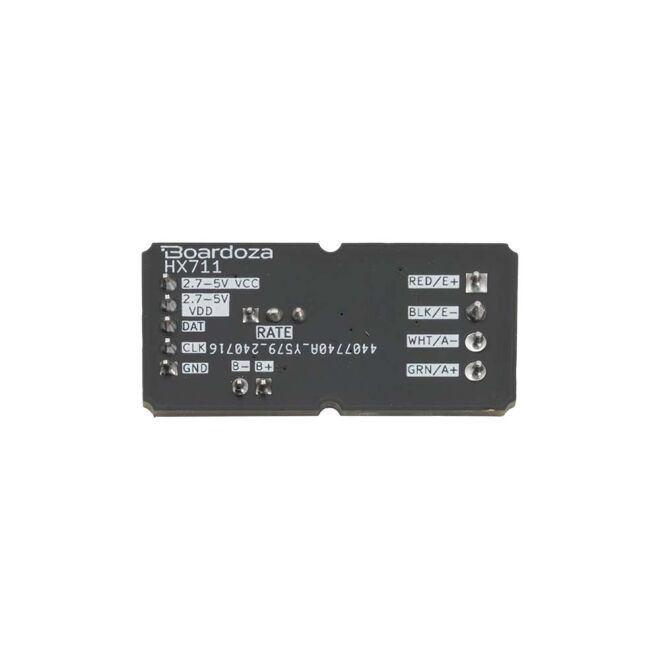

Front Side	Back Side

• 24-bit ADC designed for weigh scales and industrial applications.
• Two selectable differential input channels (To use channel B, R7(100R), R8(100R), and C8(100nF) must be populated).
• Low power consumption: <1.5mA in normal operation, <1µA in power-down mode.
• Integrated low-noise programmable gain amplifier.
• Selectable output data rates: 10SPS or 80SPS.
• Wide operating voltage range: 2.7V to 5.5V.

• Input Voltage: 2.7V - 5.5V
• Functions: 24-Bit ADC for load cells and weigh scales
• Supply Current: 1.5mA
• Operating Temperature: -40°C ~ +85°C

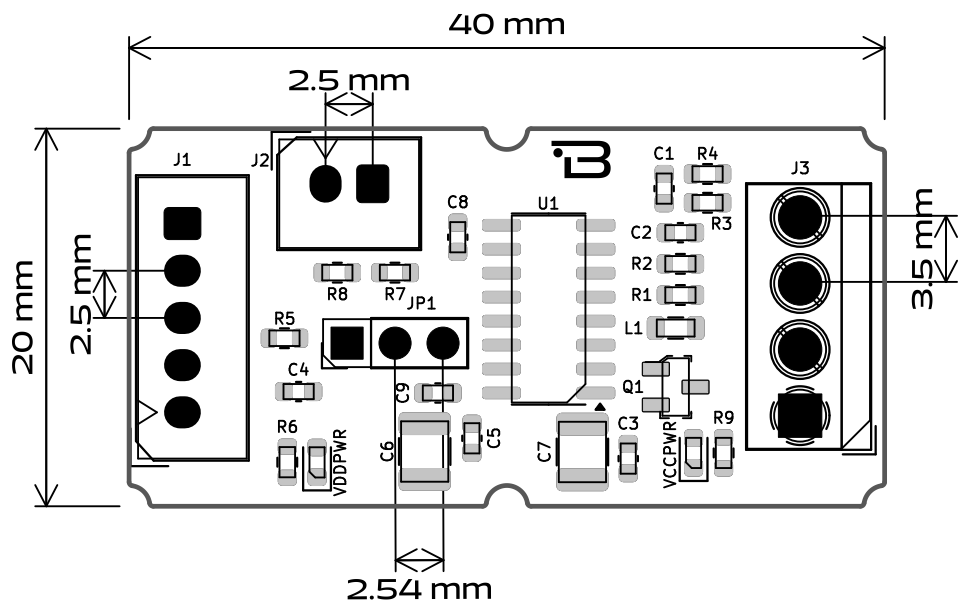

• Board Dimensions: 20mm x 40mm
