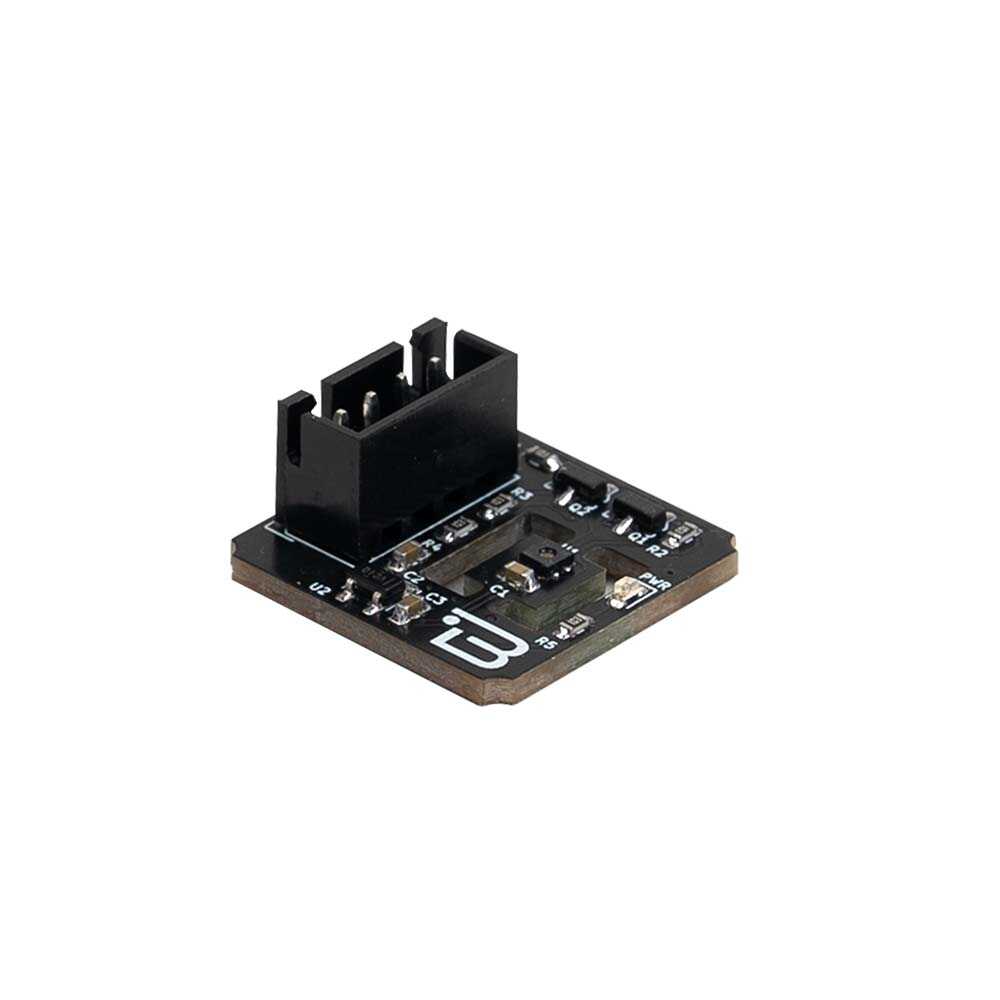

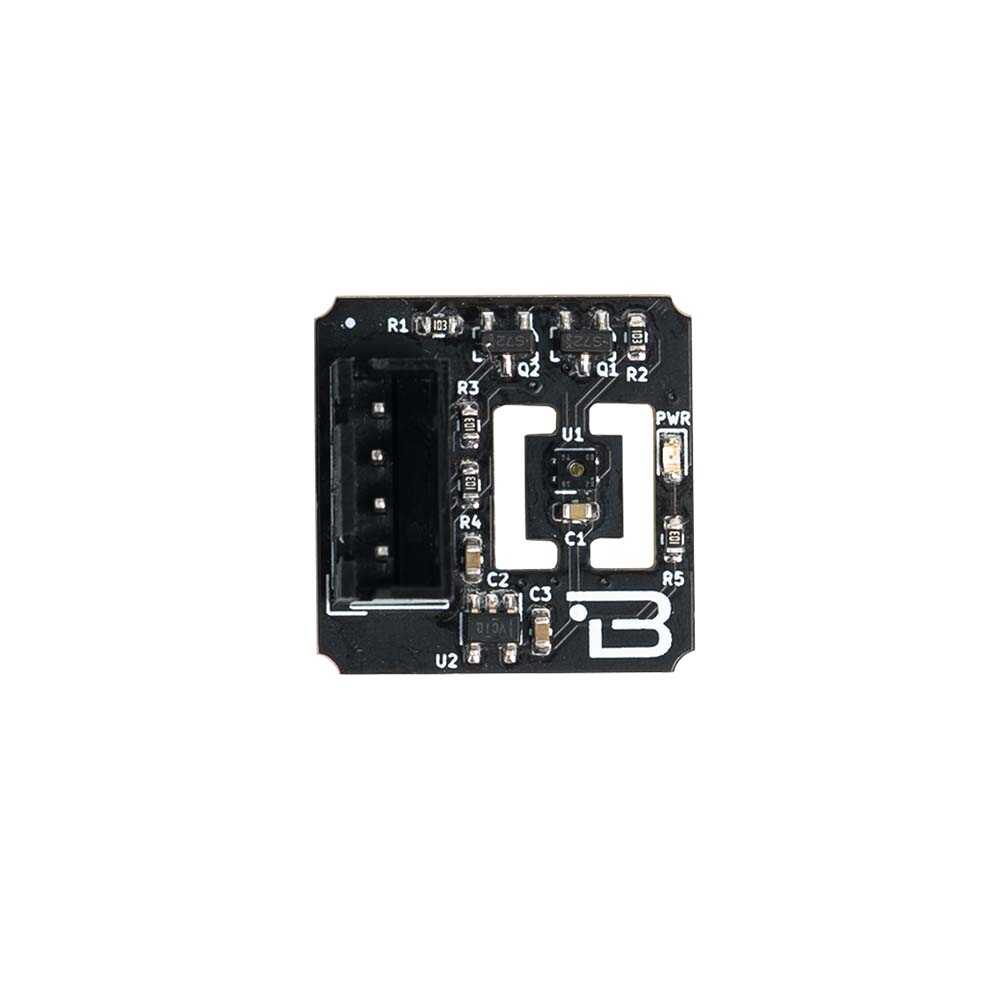

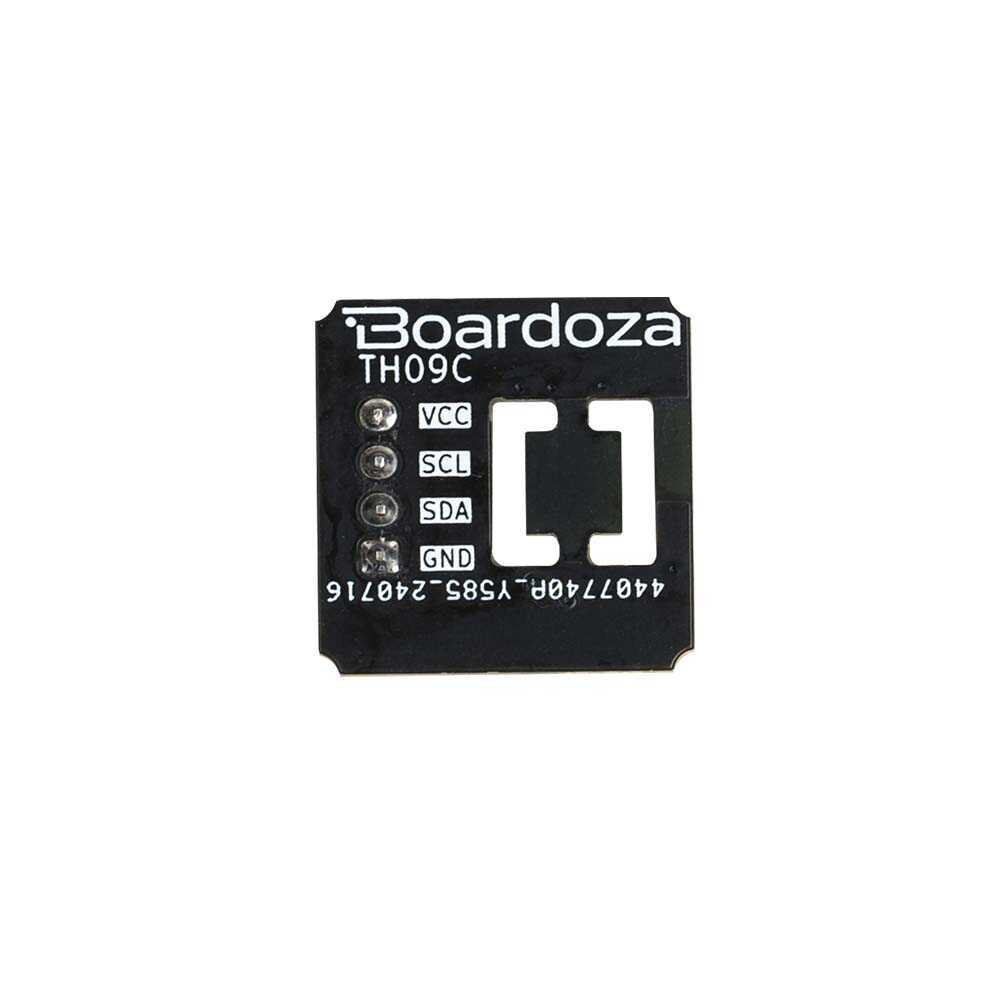

Boardoza TH09C Temperature Humidity Sensor Breakout Board

Boardoza TH09C Temperature Humidity Sensor Breakout Board

The TH09C Digital Temperature and Humidity Sensor Breakout Board offers reliable environmental monitoring with high accuracy and low power consumption. Featuring the TH09C sensor, this board provides precise digital temperature and humidity readings via an I²C interface. Its fast response time and high repeatability make it ideal for use in HVAC systems, weather stations, and other applications where environmental data is critical.

• Ultra-Accurate Sensing: Temperature sensor with ±0.15°C accuracy and relative humidity sensor with typical ±2.0%RH accuracy.
• Wide Sensing Range: Supports temperature measurement from –40°C to 100°C and humidity from 0% to 100%.
• Digital Output: Provides digital temperature and humidity readings via TTL I2C interface for easy integration.
• Low Power Consumption: Optimized for battery-operated devices with minimal energy usage. -Compact Design: Small form factor suitable for a wide range of environmental monitoring applications.

Input Voltage: 2V - 5.5V

Voltage Input Type: Molex 4 pin 2.50mm header

Interface: I²C

Functions: Temprature and Humidity Sensor

Temperature Accuracy: ±0.15°C

Humidity Accuracy: Typical ±2.0% RH

Measurement Range: -40°C ~ +100°C

Operating Humidity: 0% to 100% RH

Operating Temperature: -40°C ~ +100°C

Board Dimensions: 20mm x 20mm
