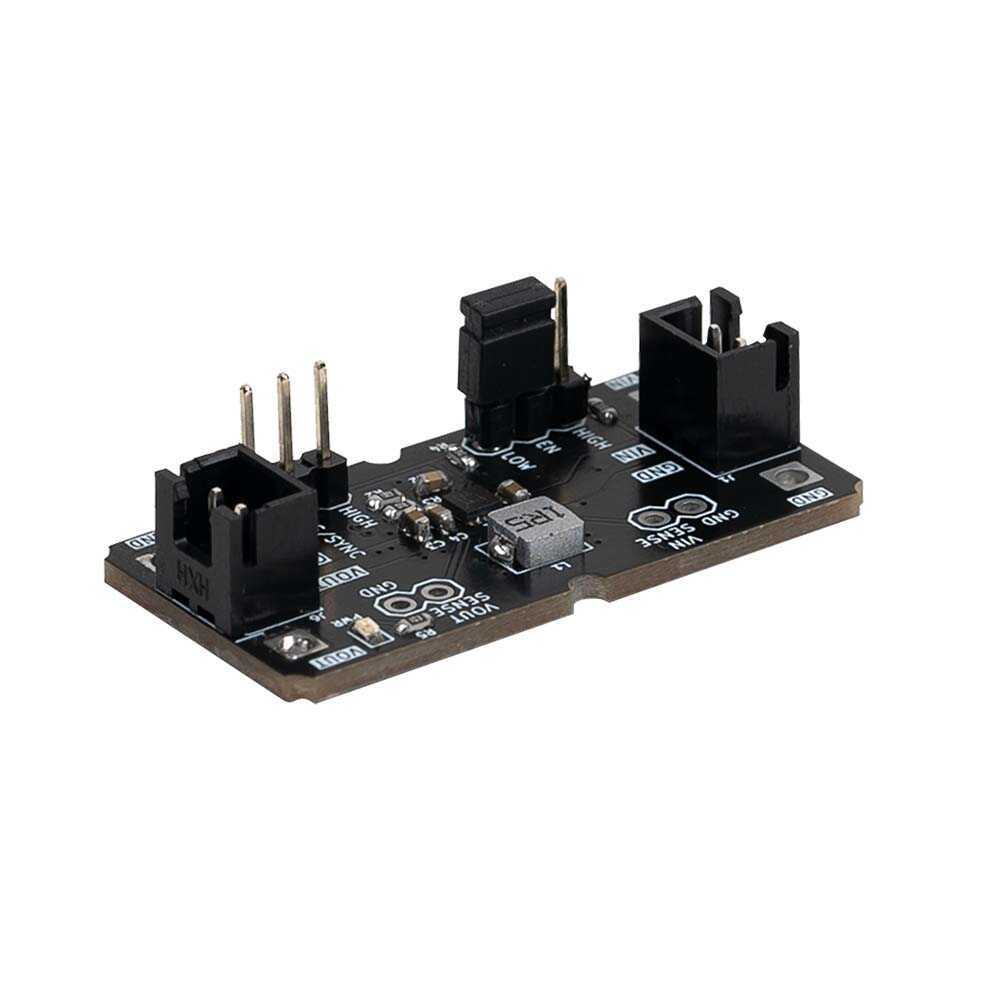

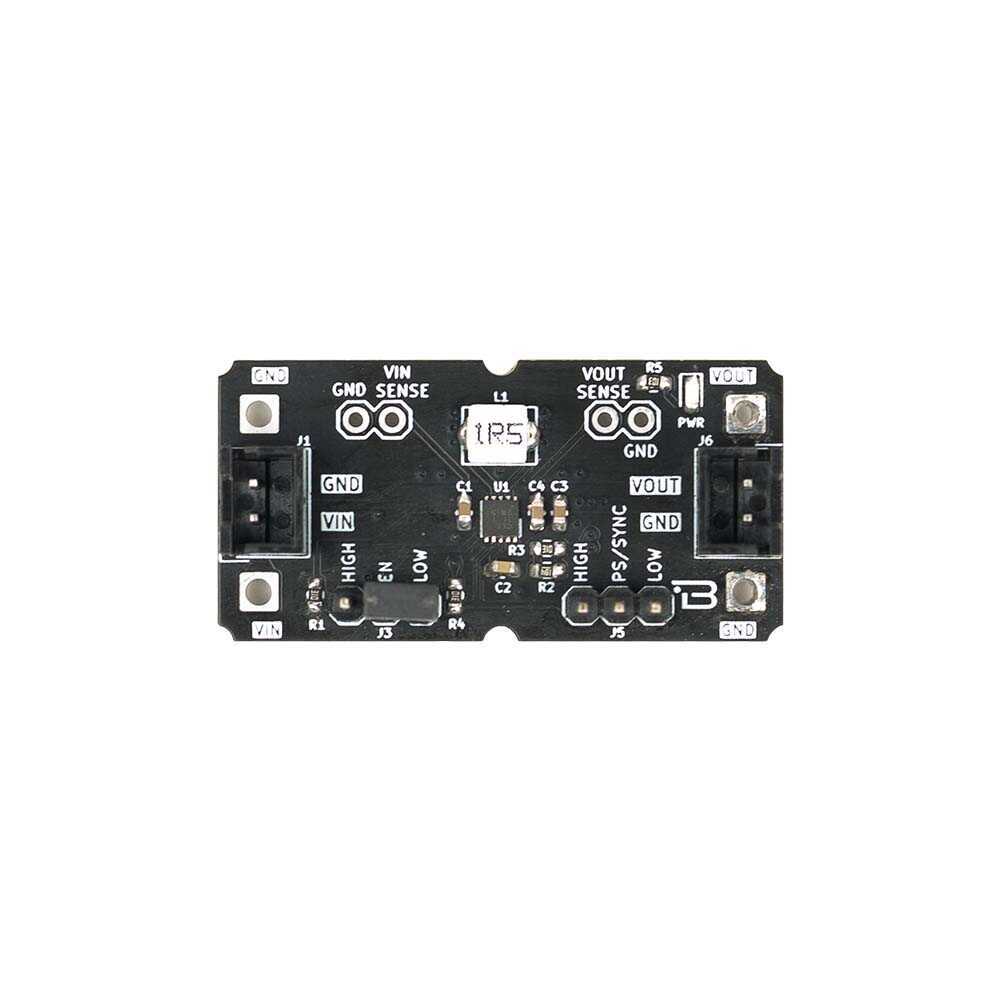

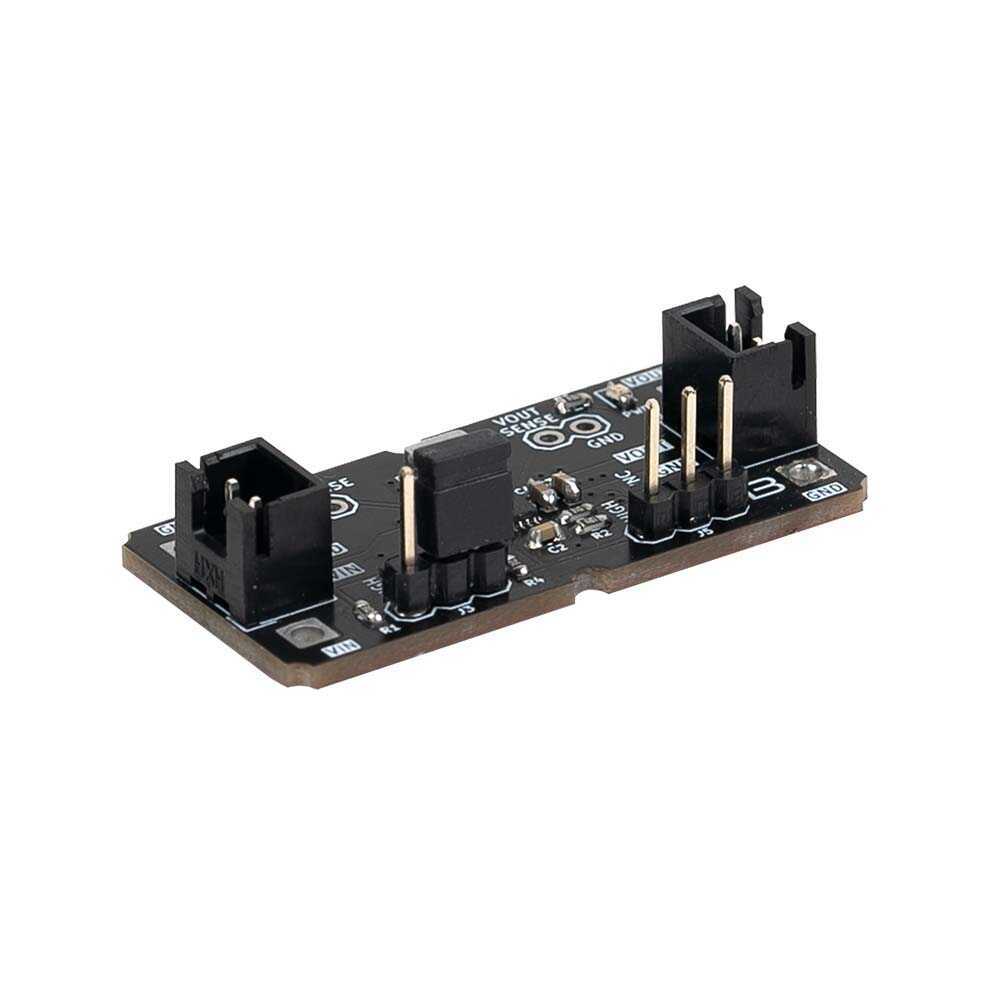

Boardoza TPS63030 Buck-Boost Converter Breakout Board

Boardoza TPS63030 Buck-Boost Converter Breakout Board

The TPS63030 High-Efficiency Buck-Boost Converter Breakout Board is a versatile power solution designed for battery-operated devices. It leverages the TPS63030 IC to efficiently convert input voltages from a wide range of battery chemistries, including two-cell or three-cell alkaline, NiCd, NiMH, or single-cell Li-ion/Li-polymer batteries. This board ensures a stable and adjustable power supply, supporting output currents up to 600 mA, even when the battery discharges to as low as 2.5V. With its high efficiency, compact design, and low quiescent current, the TPS63030 breakout board is ideal for portable electronics, wearable devices, and other applications requiring consistent performance regardless of battery charge state.

• High Efficiency: Provides efficient power conversion, achieving up to 96% efficiency for extended battery life.
• Buck-Boost Capability: Supports both step-up and step-down voltage conversion for versatile power management.
• Adjustable Output Voltage: Allows for precise voltage control to match various device requirements.
• Automatic Mode Transition: Seamlessly transitions between step-down and boost modes based on input voltage.
• Safety Features: Includes overtemperature protection and load disconnect during shutdown for enhanced device safety.
• Compact Design: Small form factor for easy integration into portable applications and battery-operated devices.
• Low Quiescent Current: Consumes less than 50 μA in standby mode, optimizing power efficiency.

Input Voltage: 1.8V ~ 5.5V

Power Input Type: Molex 2 pin 2.50 header

Output Voltage: 3.3V

Output Current:

• Up to 800 mA in Step-Down Mode (VIN = 3.6V to 5.5V)
• Up to 500 mA in Boost Mode (VIN > 2.4V)

Functions: Buck-Boost Converter

Efficiency: Up to 96%

Quiescent Current: Less than 50 μA

Operating Temperature: -40°C ~ +85°C

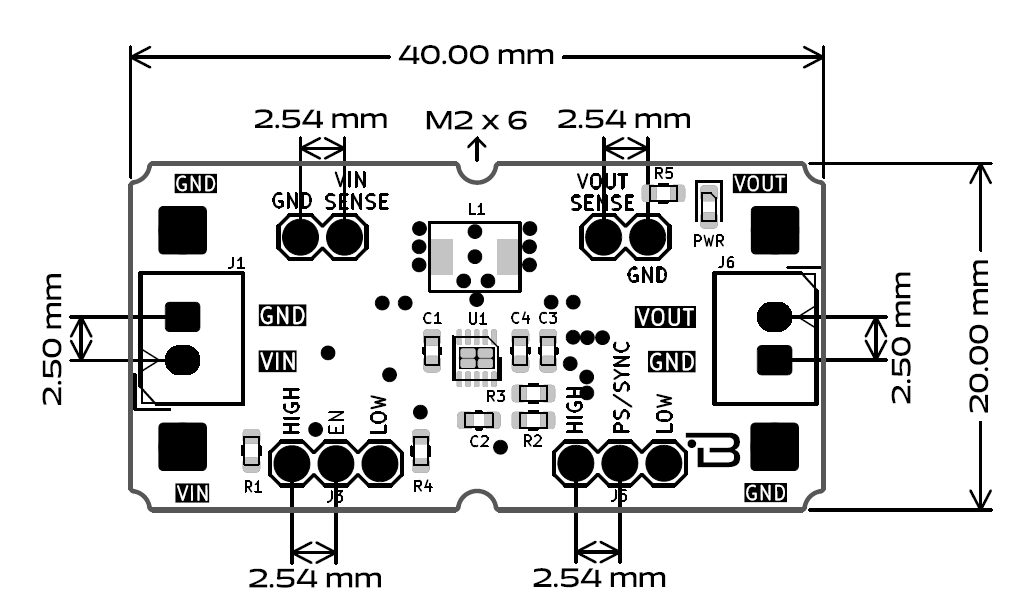

Board Dimensions: 40mm x 60mm
