The TPS630702 Buck-Boost Converter Breakout Board is an efficient, compact power management solution for applications requiring stable voltage output over a wide input voltage range. This module features automatic transition between step-down and boost mode, making it ideal for battery-powered projects. With high efficiency of up to 95%, adjustable output voltage selection, and multiple safety protections, it provides a reliable power supply for embedded systems, IoT devices, and other electronics requiring regulated power.

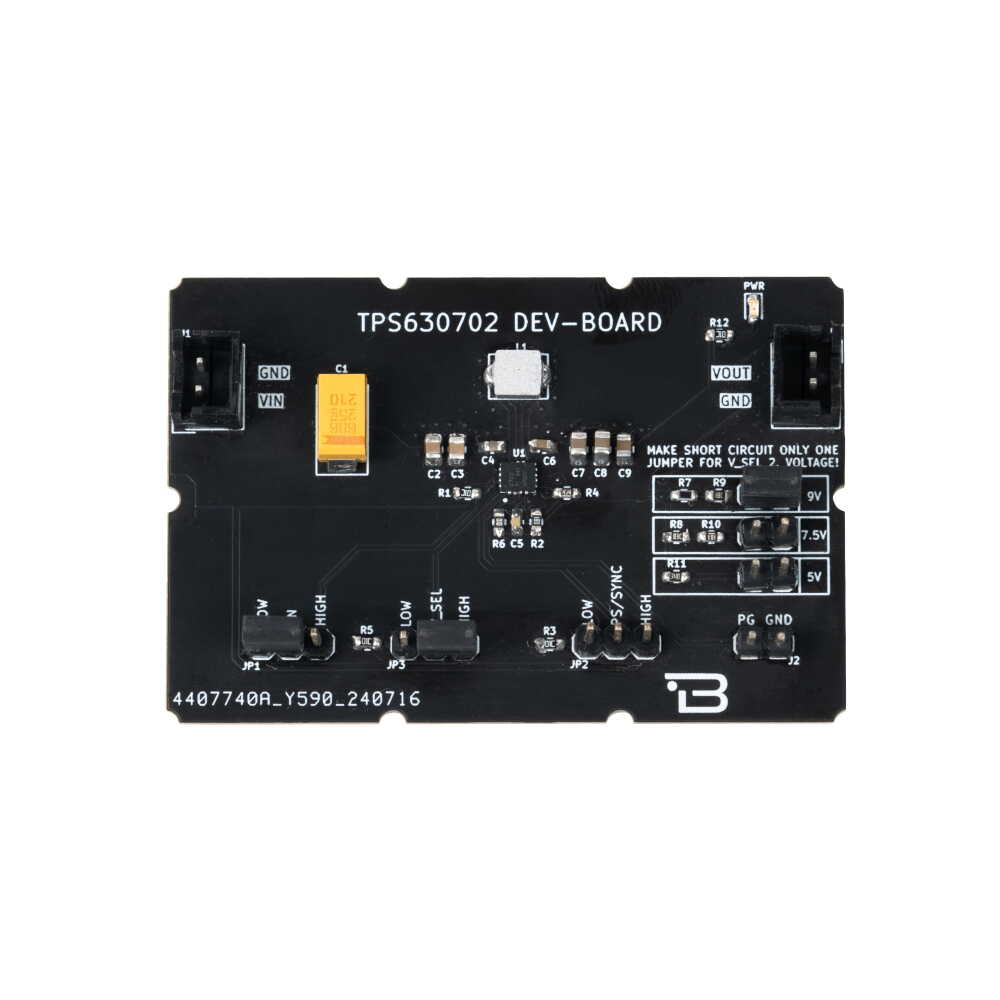

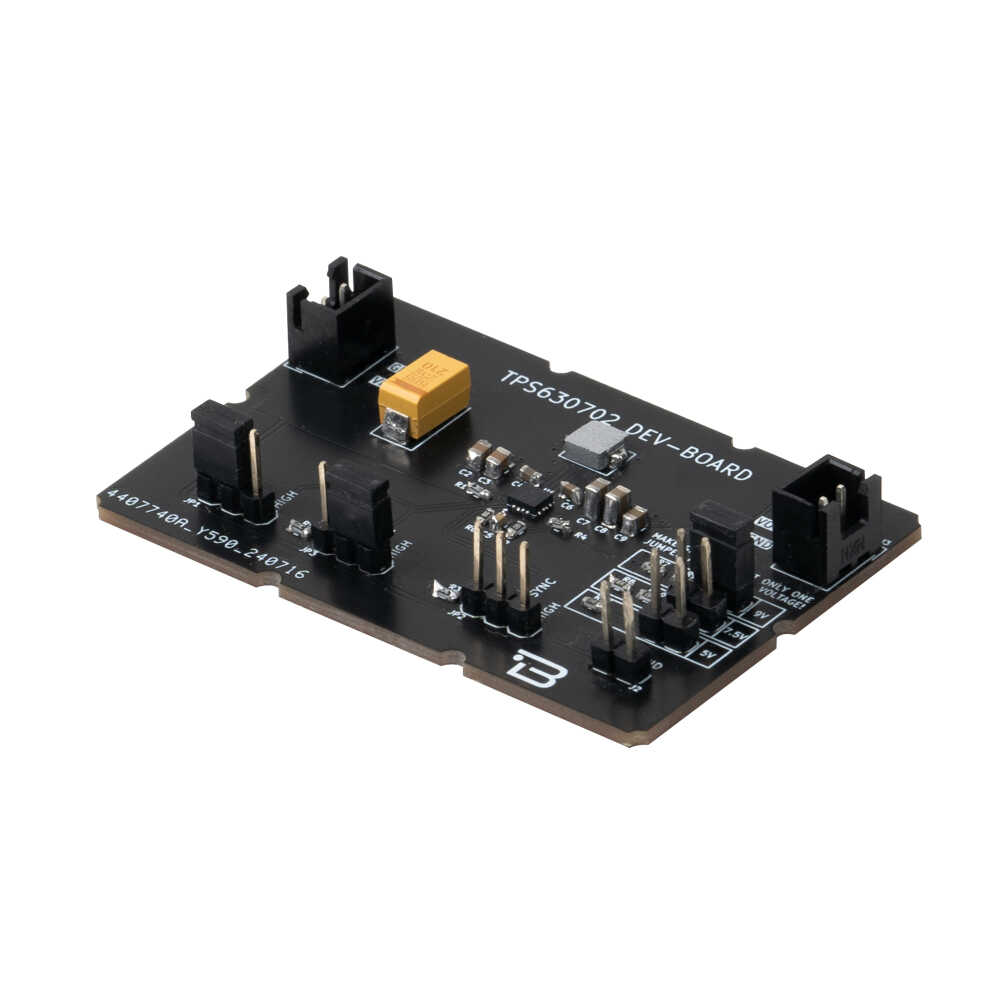

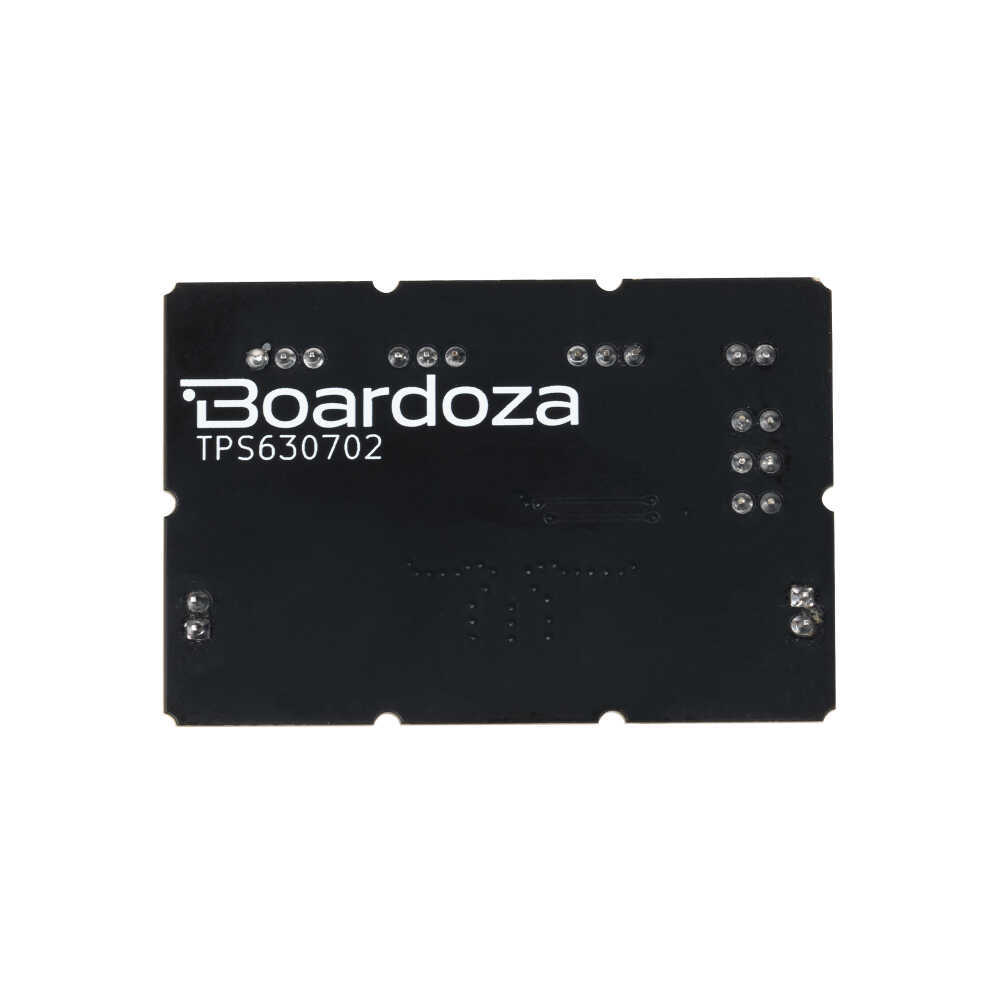

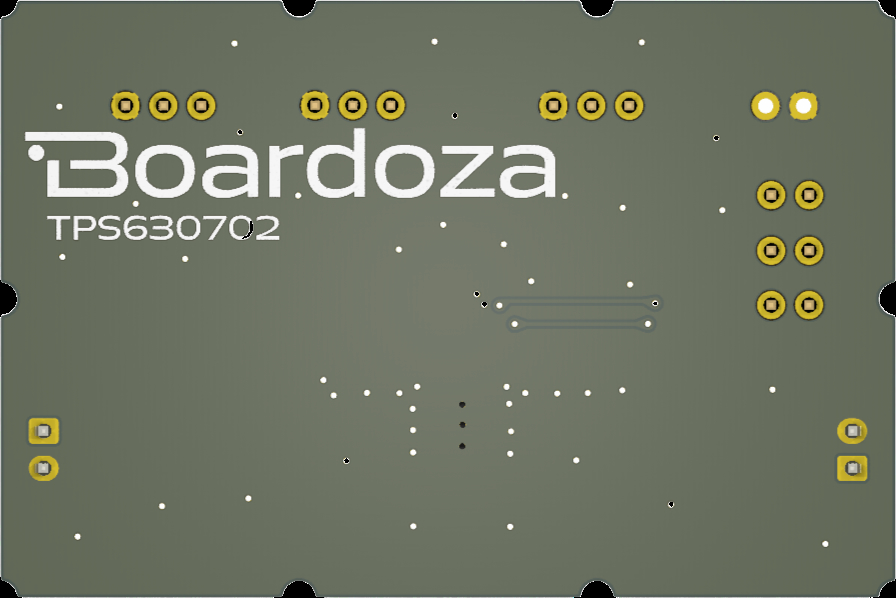

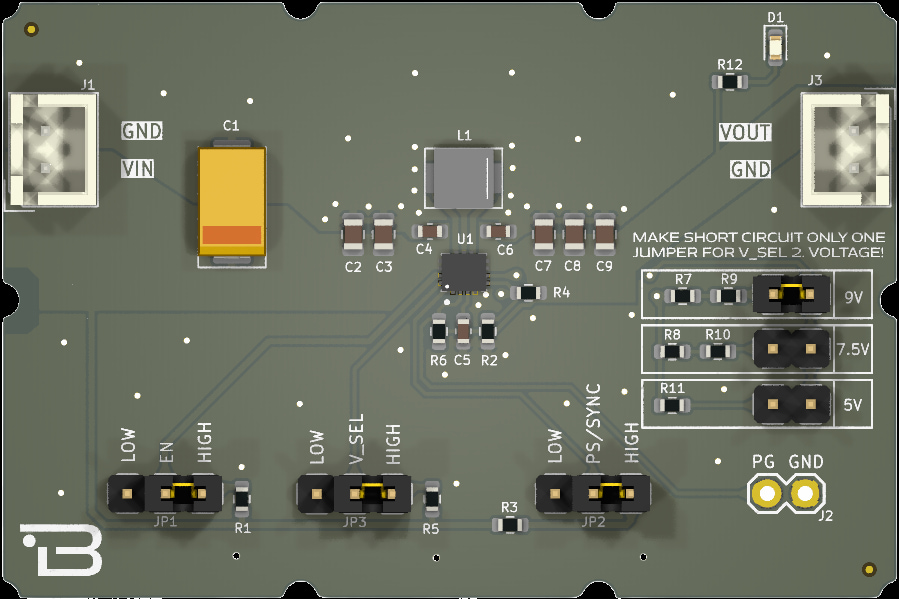

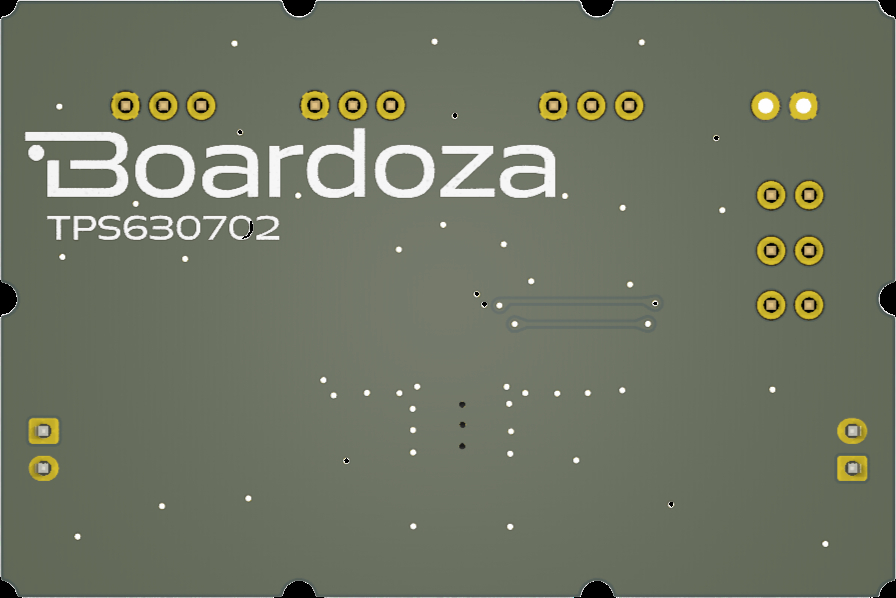

Front Side	Back Side

• Wide Input Voltage Range: Operates from 2.0V to 16V, suitable for battery and adapter applications.
• Selectable Output Voltage: Provides 3.3V by default, with options for 5V, 7.5V, and 9V via jumper selection.
• High Current Capability: Supports up to 2A output in both Buck and Boost modes.
• Automatic Buck-Boost Transition: Seamlessly switches between step-down and boost mode depending on input voltage.
• Load Disconnect & Output Discharge: Ensures safety during shutdown.
• Efficiency: Up to 95%, reducing heat dissipation and improving battery life.
• Protection Features: Includes input/output overvoltage protection and undervoltage lockout.

Input Voltage: 2.0V - 16V

Input Voltage Type: Molex 2-pin 2.50mm header

Functions: Buck-Boost Voltage Regulator

Output Voltage: 3.3V, 5V, 7.5V, 9V (Selectable)

Output Current:

• Buck Mode: 2A
• Boost Mode: 2A (VIN = 4V, VOUT = 5V)

Efficiency: Up to 95%

Operating Temperature: -40°C ~ +150°C

Board Dimensions: 40mm x 60mm
