Class ZD 917 Vacuum Soldering Iron - LCD Display

Class ZD 917 Vacuum Soldering Iron - LCD Display

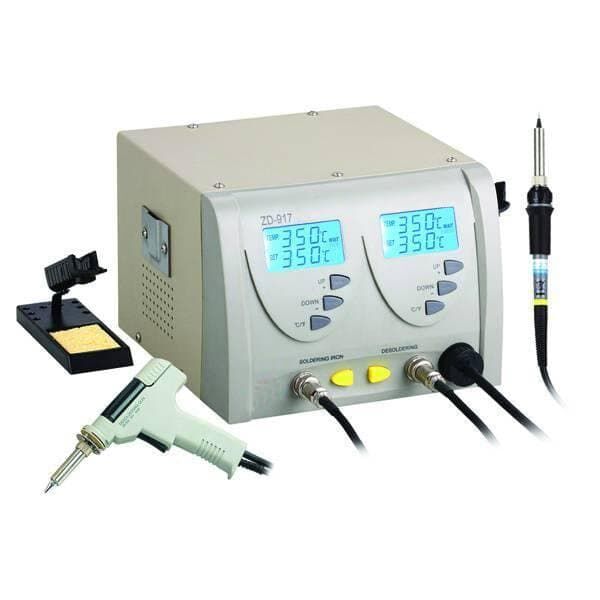

Class ZD 917 Vacuum Soldering Iron - LCD Display shows the current soldering iron temperature as well as the desired target temperature through the screen of the product. You can increase or decrease the target temperature through the buttons it has according to the requirements of your current job. With the heat regulated vacuum pump, you can remove the solder you want without damaging the electronic board.

Class ZD 917 Vacuum Soldering Iron - LCD Display Technical Specifications:

• Temperature Range: 160°C - 480°C

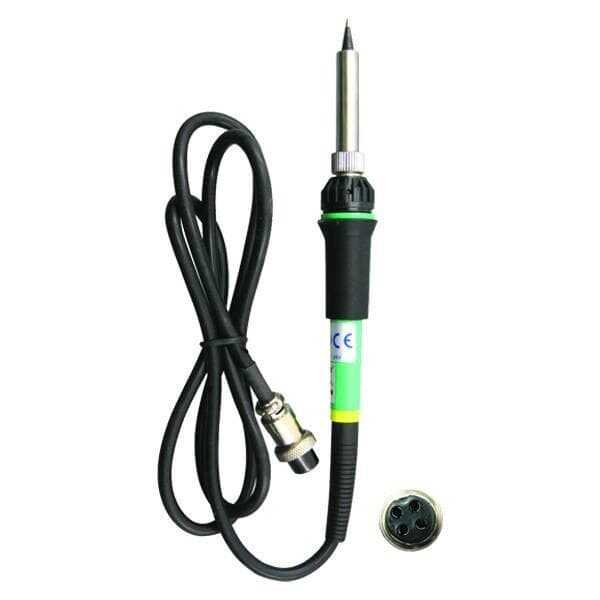

• Spare soldering iron tip: N4-1 and N4-2

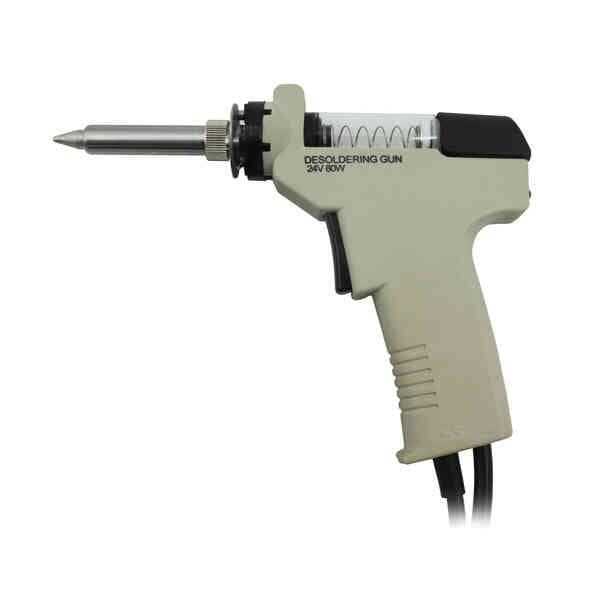

• Spare vacuum gun: ZD 552Y

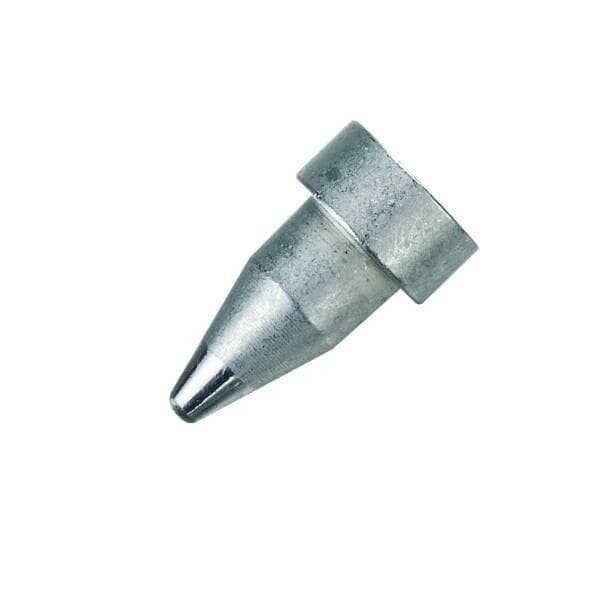

• Spare vacuum gun tip: N5-1, N5-2, N5-3, N5-4
• Voltage: 110-130V AC AC/220-240V
• Power Consumption: 60W +80W
• Main Fuse: 3.15A
• Display: LCD
• Soldering Iron Voltage: 24V AC
• Soldering Iron Power: 130W up to 60W heat rating
• Soldering Iron Temperature: 160°C -480°C
• Heating Element: Ceramic Heater
• Vacuum Station Voltage: 24V AC
• Vacuum Pressure: 600mm HG
• Vacuum Station Power: 80W
• Vacuum Station Temperature: 160°C -480°C
