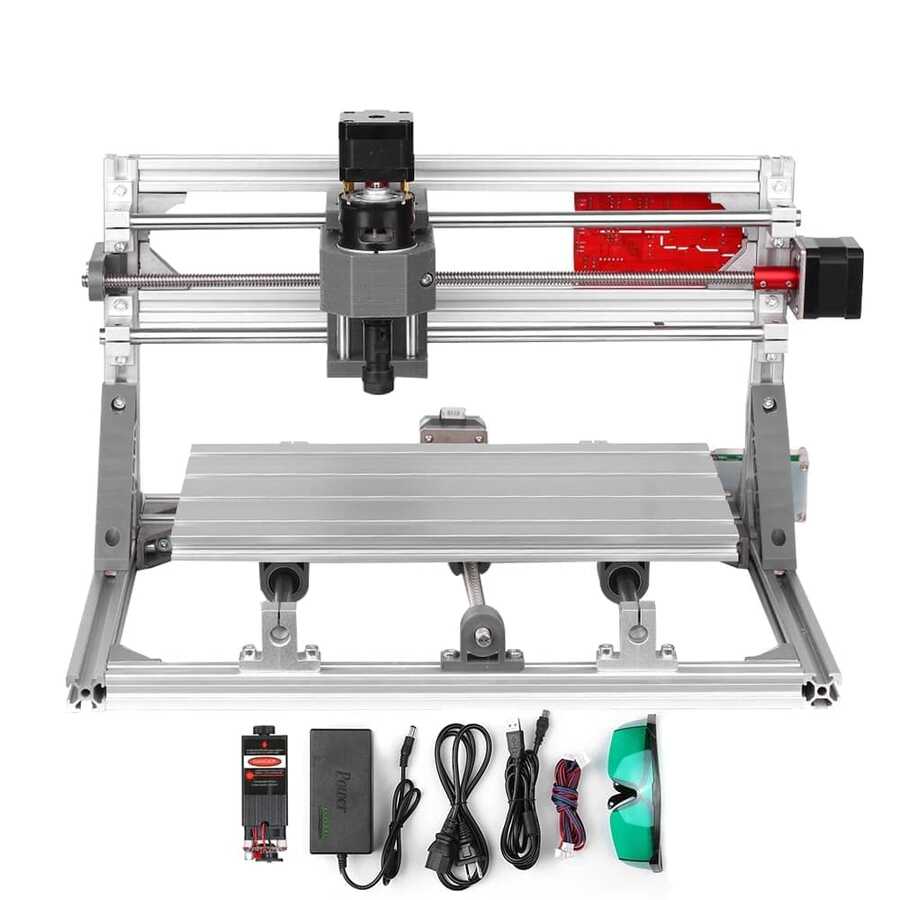

CNC3018 DIY Mini Desktop Engraving Machine Laser CNC Picture Woodworking Engraving Machine GRBL Control EU Plug with 2500mw Laser + Offline Screen

Brand
Robotistan
Product Code
20183
Fiyat
: 9,849.90 TL + VAT
KDV Dahil Fiyat
: 11,819.88 TL

CNC3018 DIY Mini Desktop Engraving Machine Laser CNC Picture Woodworking Engraving Machine GRBL Control EU Plug with 2500mw Laser + Offline Screen

DIY Mini Desktop CNC Machine – It is a laser-free, multi-function CNC machine. This DIY CNC engraving machine is specially designed for DIY fun work and research, with professional GRBL control software, giving you an extraordinary portable experience. This device, which contains an Arduino-like specialized development board, is ideal for your hobby work. With this machine, plastic, wood, acrylic, pvc, pcb, mdf etc. You can carve and shape many products. Suitable for beginners with electronic and mechanical knowledge. With this product, which comes completely disassembled and is very easy to install, you will have your own CNC machine. The laser head is included in the set. If necessary, it is connected to the part where the drill bit is. With laser; You can process wood, leather, cardboard, plastic (except white and glossy), aluminum (only paint-coated and non-glossy). Since the laser focus deteriorates after 3 mm, you can cut wood, paper, cardboard and leather materials up to a maximum thickness of 3 mm. There is an installation guide and a USB stick in the box. Here are digital documents containing information about the open source software needed and installation. It is very easy to use and connect. You can view our other DIY Mini CNC Machining Machines by clicking here.



CNC3018 DIY Mini Desktop CNC Machining Machine Technical Specifications:

  • Model: CNC3018
  • Material: Aluminum + Plastic
  • Main Color: Silver
  • Power Supply: 110-240V/AC
  • Output Voltage: 24V
  • Power Supply: 24V 5A
  • Supported OS: Windows XP / Win 7 / Win 8 / Win 10 (32/64)
  • Supported Formats: jpg / bmp / ​​png
  • Communication Port: Micro USB
  • Drill Bits: 0.1mm, Diameter: 3.175mm, 30°
  • Workspace Size: 18 x 30 x 1.5cm
  • Frame Size: 36 x 40 x 24cm
  • Mile: 775
  • Shaft Chuck: ER11
  • Laser: 2500mw
  • Software: GRBL
  • Control Carving Modes: Image Carving, Text Carving, Scan Carving, Contour Carving, Pixel Carving.
  • Non-engraved Objects: All metals, glass, stone, ceramics, jewelry, silver reflective material, translucent transparent material.
  • Carving Objects: All wood, bamboo, paper, plastics, leather, rubber, sponge, sheet, etc.




CNC3018 DIY Mini Desktop CNC Machining Machine Package Content:

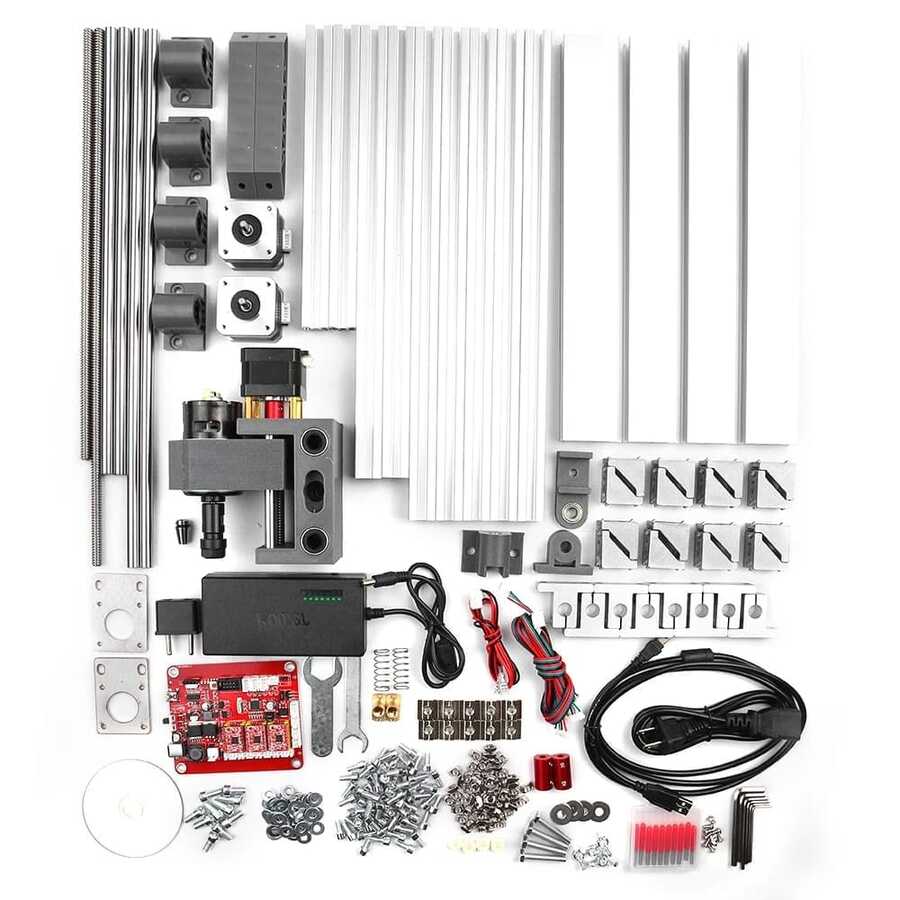

  • 1 x DIY CNC Engraving Machine Set
  • 10 x Drill Bits
  • 1 x Power Supply
  • 1 x Shaft Chuck
  • 1 x Laser Head

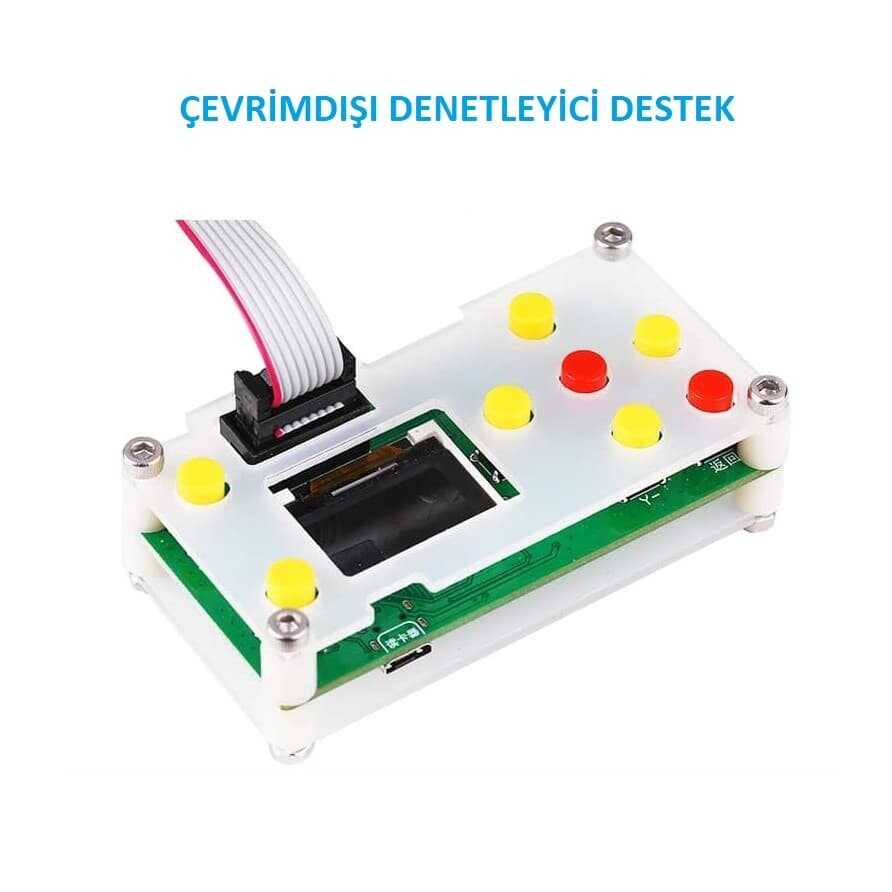

  • 1 x Offline Screen
  • 1 x Goggles
  • 1 x USB Stick
  • 1 x Installation Guide
