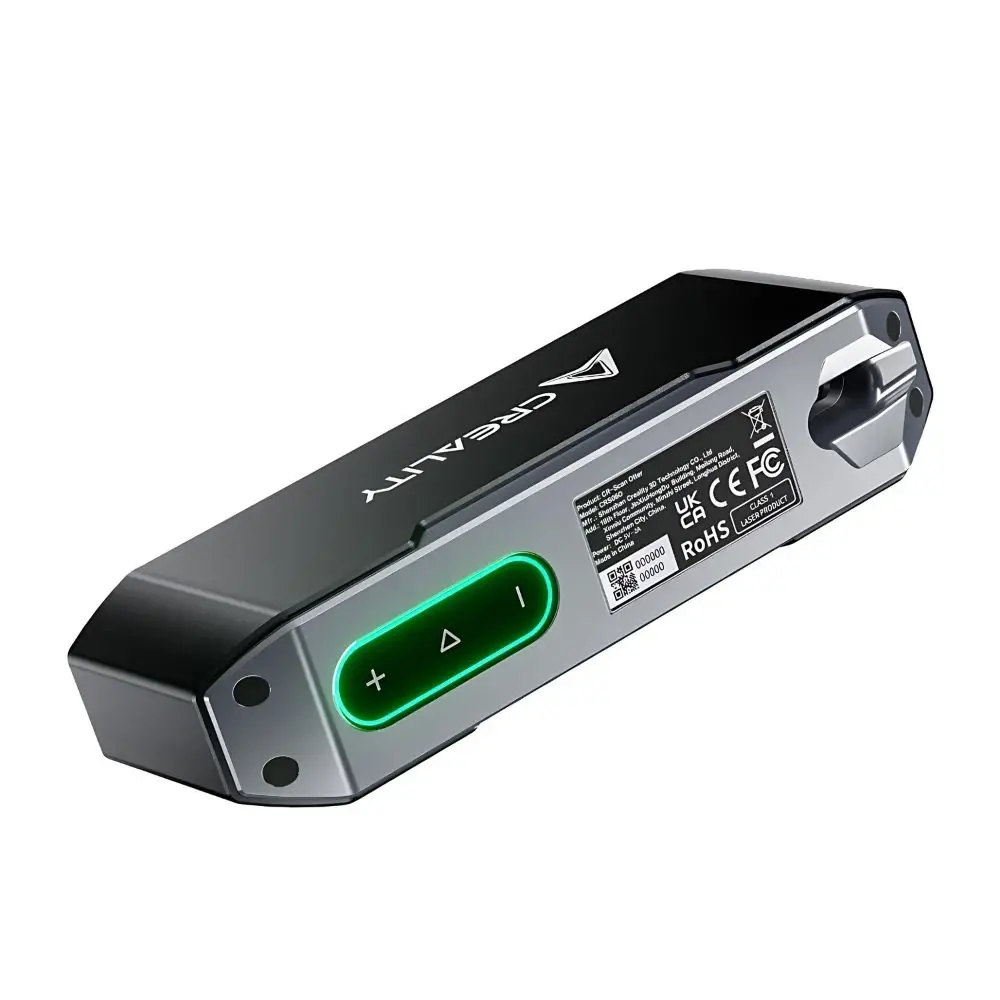

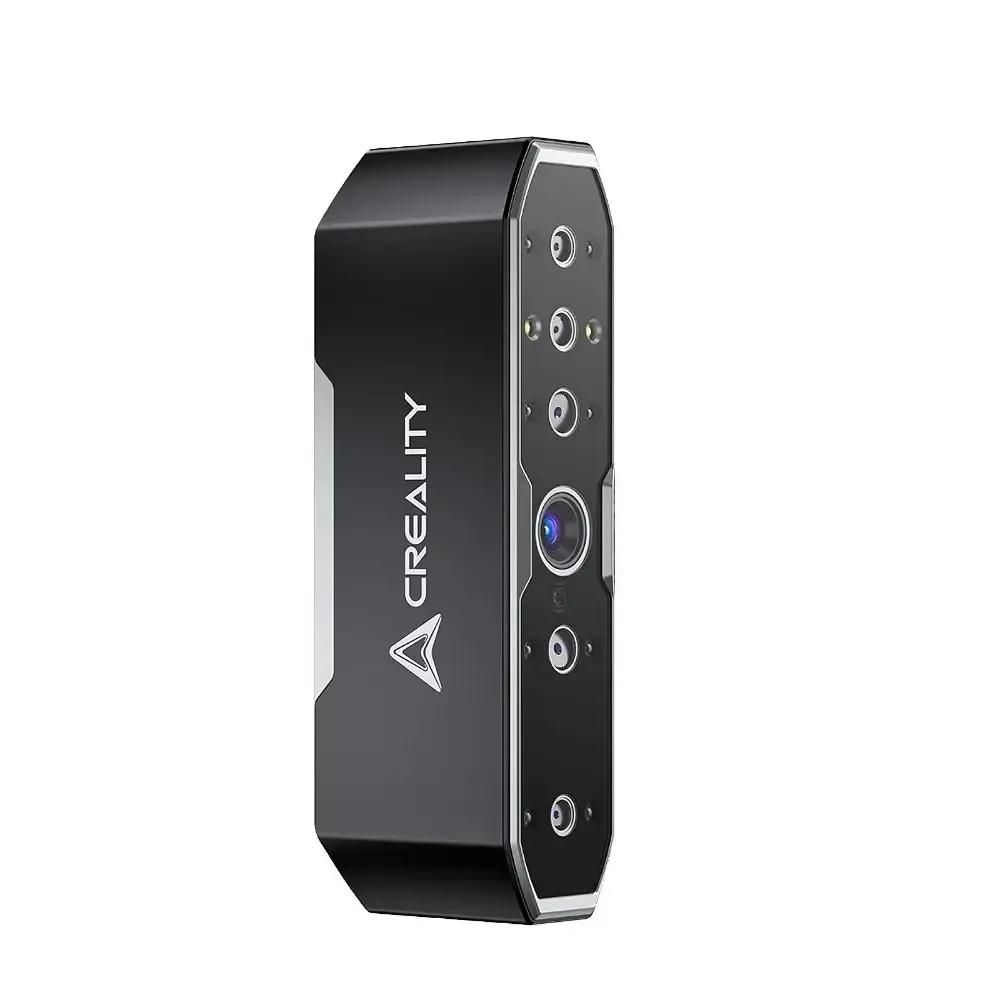

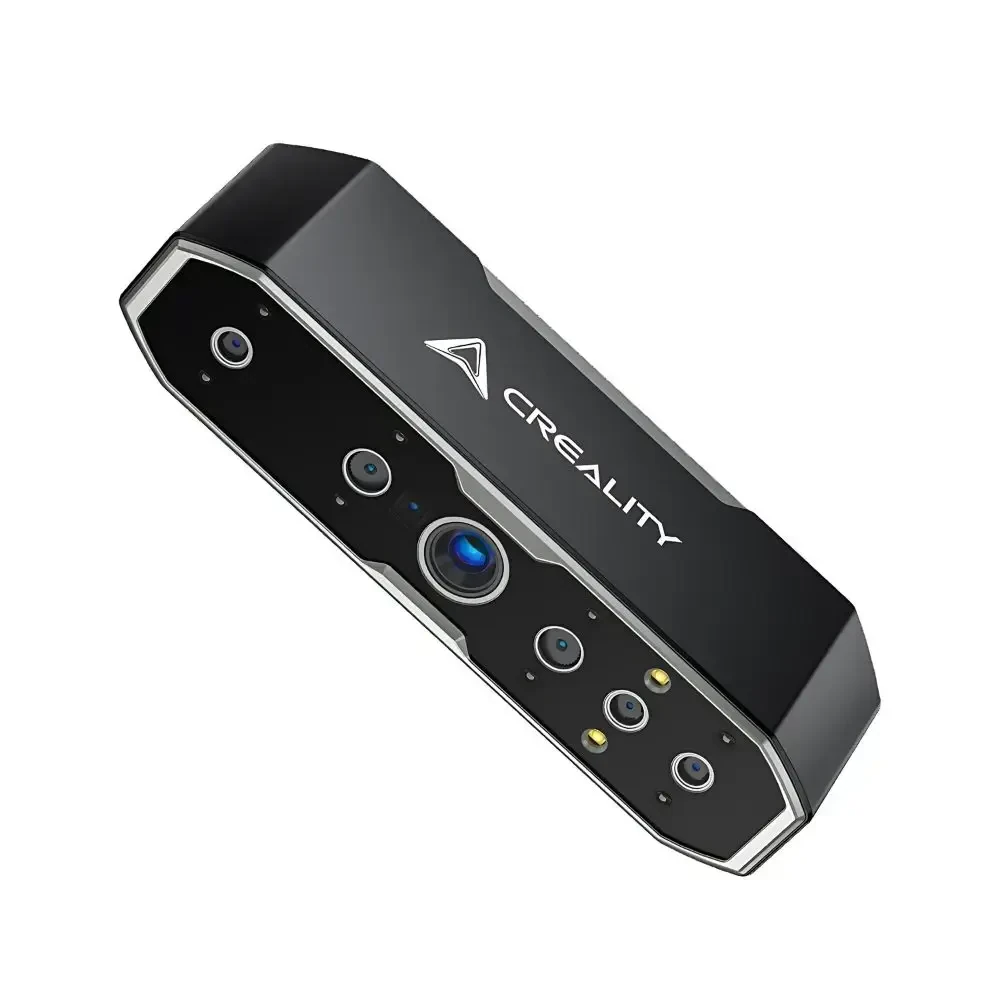

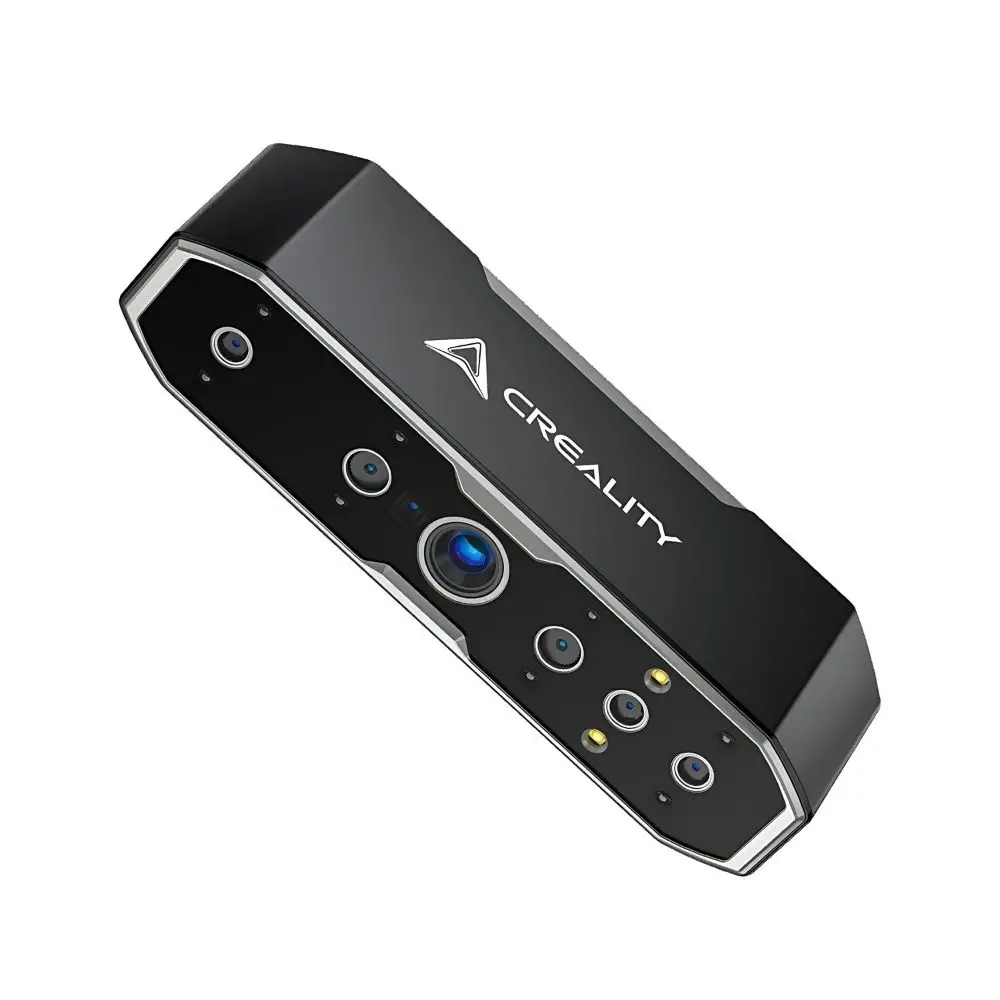

Creality CR-Scan Otter 3D Scanner

Creality CR-Scan Otter 3D Scanner

Creality CR-Scan Otter is a portable and precise 3D scanner designed for a wide range of applications. You can easily scan both large and small objects. Up to 0.02mm scanning accuracy ensures every detail is sharp and clear. This will let you enjoy industrial-level precision scanning. When we look at Creality scanners, it is a more compatible and cost-effective 3D scanner with industrial-level precision.

The CR-Scan Otter is a flexible scanner that can scan a wide range of objects, from small coins to large vehicles. This scanner can scan objects from 10x10x10mm to 2000x2000x2000mm. Since the scanning distance varies from 110mm³ to 1200mm³, it can effectively capture objects of various sizes. These features make it a versatile tool for different applications.

Features:

• Precision: Accurate to 0.02mm

• Advanced Vision: Equipped with innovative four-lens stereo vision

• Stability: Anti-shake technology ensures smooth scanning

• Color Depth: Capable of 24bit full-color scanning

• Versatility: Suitable for objects from 10mm to 2000mm

• Material Flexibility: Can scan black and metal objects without spray.

Specifications:

• Accuracy: Up to 0.02mm @60mm

• 3D Resolution: 0.05-2mm

• Scanning Speed: Up to 20fps

• Min. Scanning Volume: 10x10x10mm

• Single Capture Range: Max. 1350x840mm @1000mm

• Technology: Infrared structured light

• Working Distance: 110-1000mm

• Color Matching: Yes

• Alignment Modes: Geometry/Marker/Texture

• Output Format: OBJ/STL/PLY

• IMU: Yes

• Color Add-on Light: 2 white LEDs

• Marker Recognition Enhancement: 8 infrared LEDs

• Laser Safety: Class I (eye-safe)

• System Support: Windows/macOS(*iPhone iOS/Android requires wireless scanning accessories)

• Buttons: Touch

• Audio Alert: Yes

• Calibration Board: Yes

• Operating Temperature: -10°C to 40°C

• Operating Humidity: 0-90%RH

• Input Power: 5V 3A

• Data Interface: Type C/USB3.0/USB2.0

• Device Dimensions: 165x37x59mm

• Device Weight: 390g
