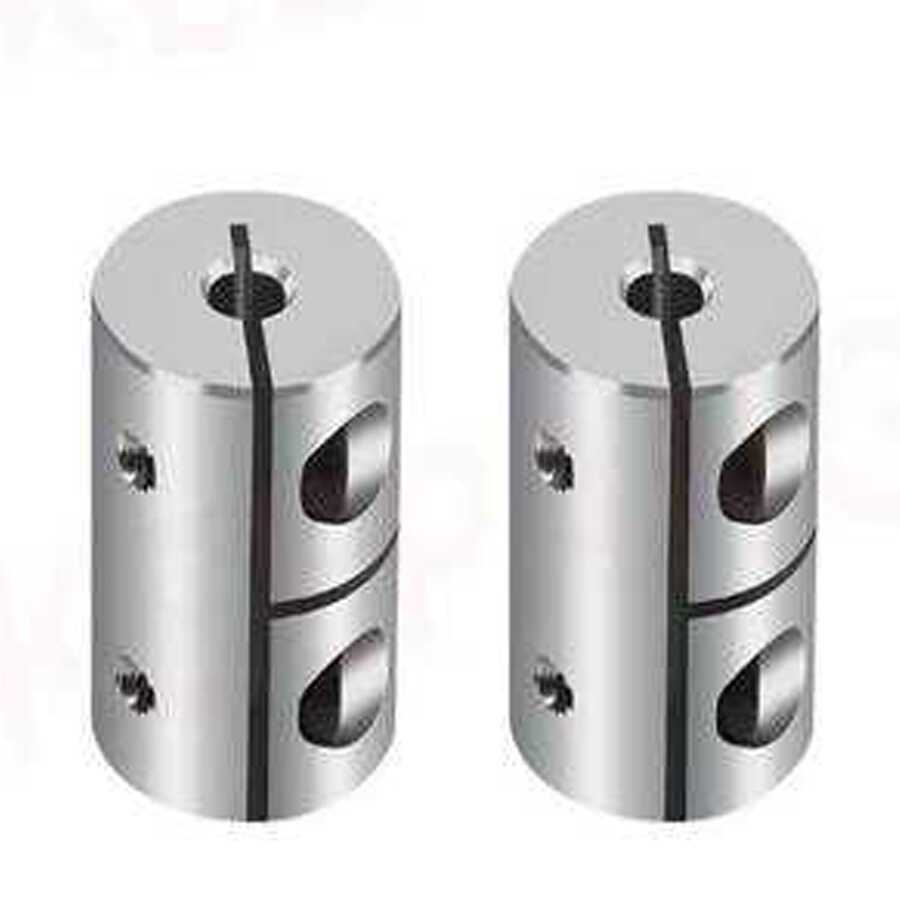

Creality Rigid Coupling

Creality Rigid Coupling

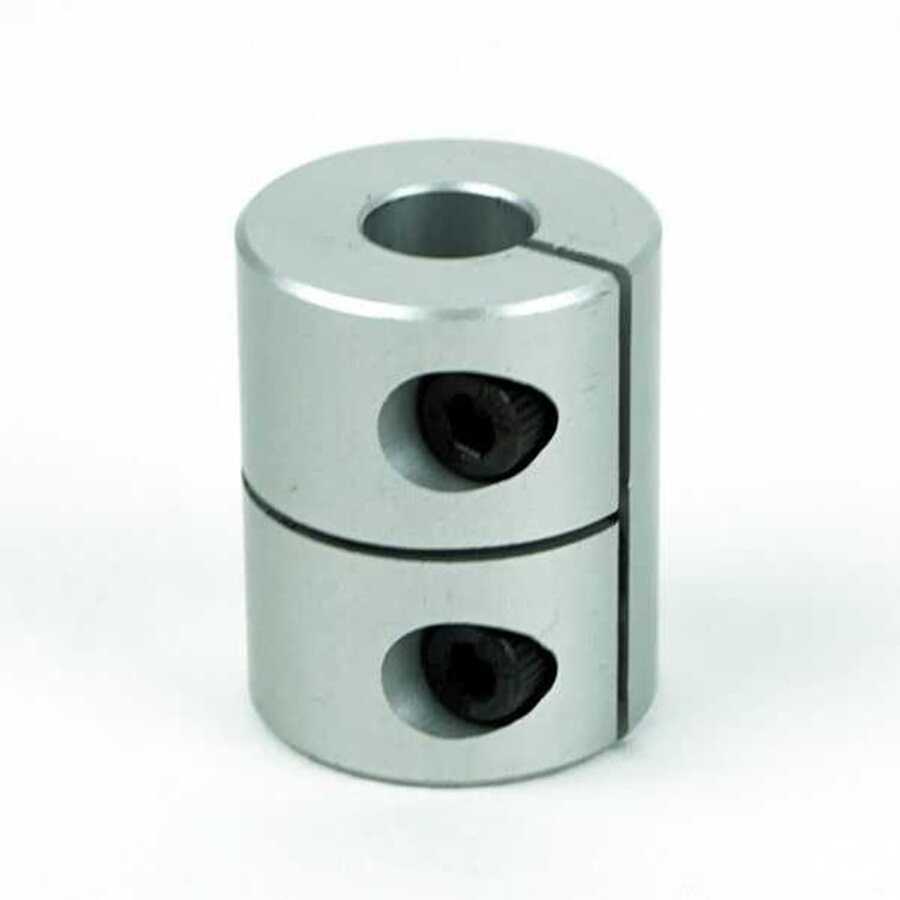

The WCL-10-F is a one-piece double wide shaft clamp with 0.6250 "diameter, 1 5/16" OD and 15/16 "width. Clamp-style design does not damage the shaft, is easy to remove, and can be adjusted indefinitely. Generally, guidance, spacing Used for release, stop, assembly and component alignment Equipment manufacturers utilize tightly controlled front-to-hole perpendicularity (TIR ≤ .002 ").

Verticality is critical for alignment when the shaft collar is used as a load-bearing surface, mechanical stop, or to mount components such as gears or bearings. Special processes were developed by Ruland to maintain superior fit, finish and holding power.

The double wide shaft collar has 25% higher axial holding force than an equivalent size round bore. It can also be used as a short rigid coupling for applications where a conventional rigid coupling is too long. Forged screws are tested beyond DIN 912 12.9 standards to ensure maximum holding strength. It uses 1215 lead-free steel with a proprietary black oxide coating that can resist corrosion, creating a fine shiny surface.

Product Specs:

• Hole (B): 0.6250 inch
• Hole Tolerance: +0.002 inch / +0.0005 inch
• Outer Diameter (OD): 15/16 inch
• Aperture Diameter (C) MAX: 1.500 inches
• Width (W): 15/16 inches
• Width Tolerance: +0.003 inch / -0.010 inch
