DENEYAP Board G (Type-C)

DENEYAP Board G (Type-C)

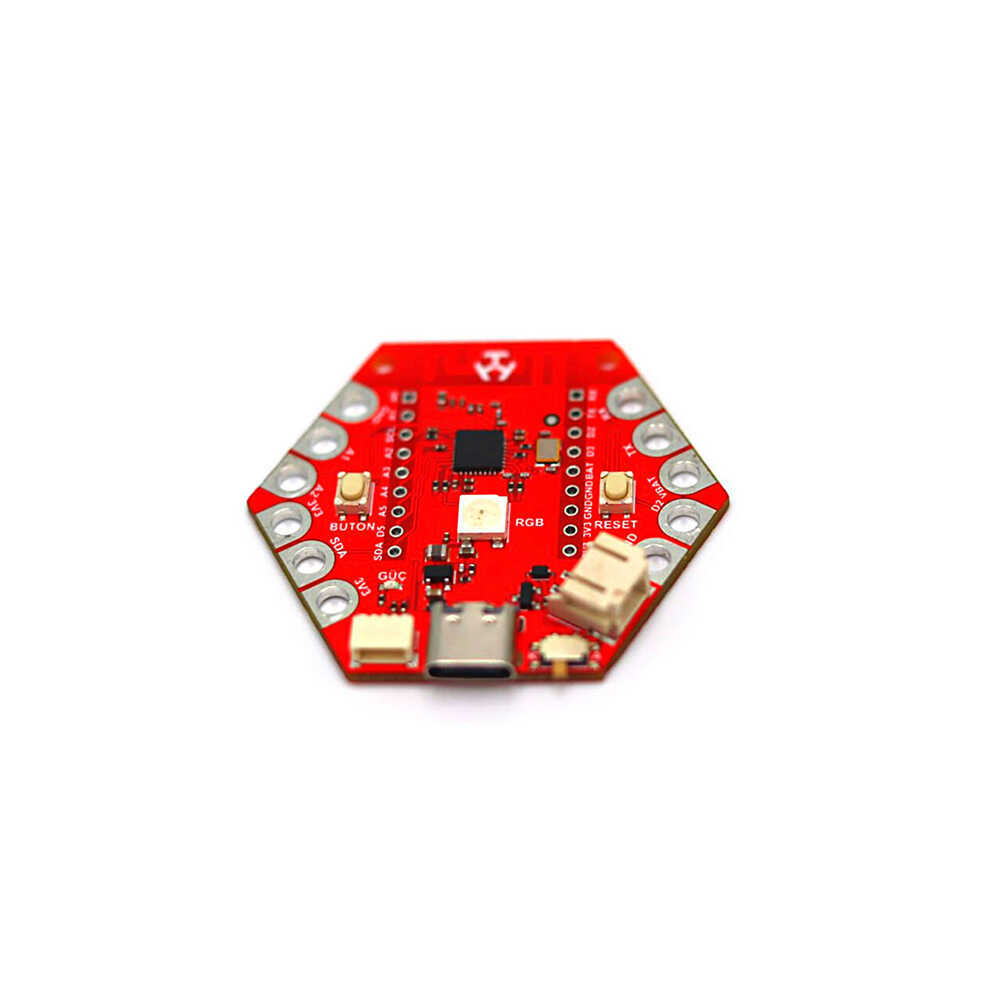

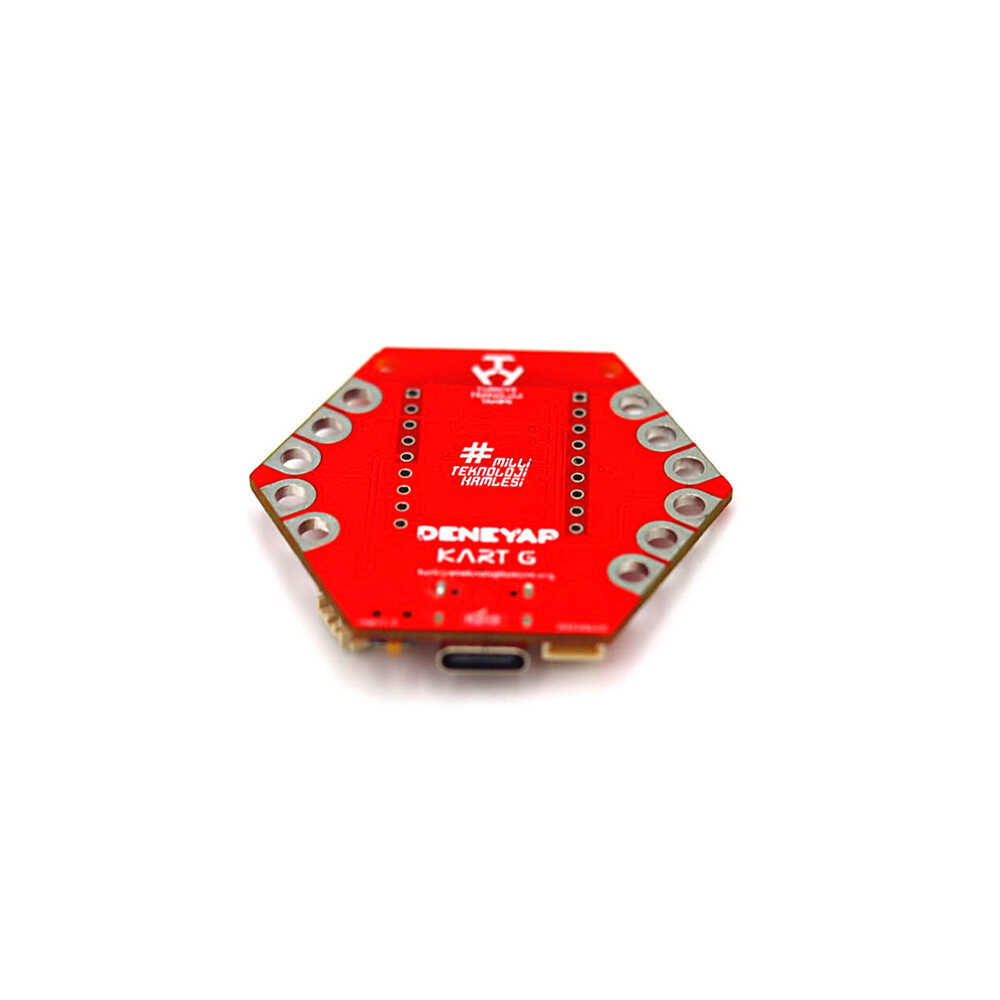

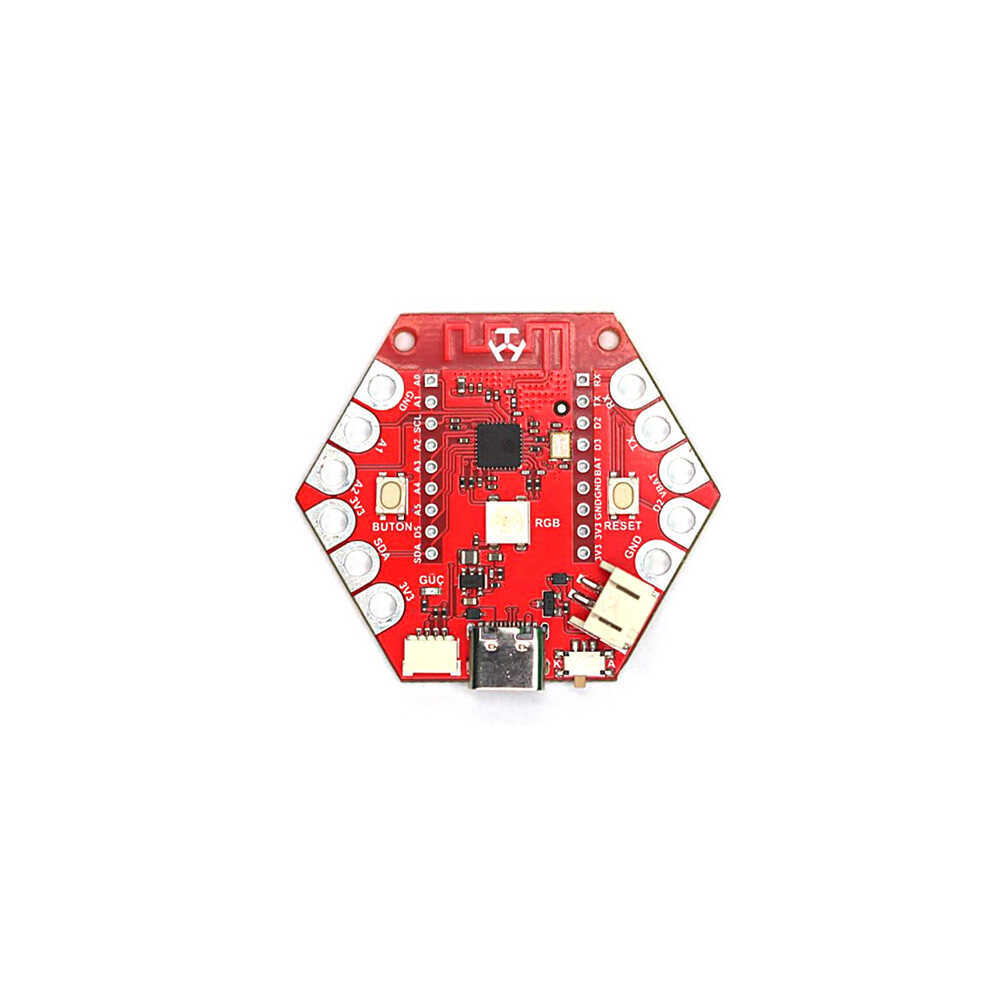

DENEYAP Kart G is an electronic development board for wearable technologies with sewable pads. It was developed using the original ESP32-C3 integrated microprocessor.

Thanks to its built-in Wi-Fi and Bluetooth communication features, it will enable you to prepare Internet of Things and cloud-based projects.

You can set up a closed loop wireless communication network using DENEYAP Kart G as a server.

It has a wide range of peripheral connections such as ADC, USB OTG, PWM, SPI, UART, I2S, I2C, TWAI, GDMA, JTAG and IR. In addition, to give you flexibility, some of these connection interfaces can be used on any pin of your choice according to your needs.

With the built-in temperature sensor integrated into the microprocessor, you can monitor the device temperature in the range of -40 °C to +125 °C.

Using the I2C communication connector, you can quickly implement your system of sensors and actuators without wiring and soldering.

A dedicated Li-Po connector is available to help you reliably power your system. Moreover, it has a switch to turn the voltage from the battery on and off.

There are also 2 pushbuttons and 1 addressable RGB LED built-in.

It has 13 pins that can be used for general purposes.

DENEYAP Board G has a total of 11 sewable pins, 6 for signal and 5 for voltage.

It has a design compatible with the breadboard.

Compatible with Arduino IDE. You can start coding using the instructions.

Technical Specifications:
160 MHz Single Core 32-bit RISC-V Microprocessor
4 MB SPI Flash
400 KB SRAM
384 KB ROM
2.4 GHz Wi-Fi - 802.11b/g/n
Bluetooth 5 (LE) and Bluetooth mesh
Built-in PCB Antenna
Built-in Temperature Sensor
Addressable RGB LED (Pin: D3)
General Purpose Button (Pin: D2)
Type-C USB Connector
I2C Communication Connector
Li-Po Battery Connector
On Off Switch
13 x Digital Input/Output Pins
6 x Analog Input Pins (12-bit ADC)
All Digital Input/Output Pins Support PWM, I2C, SPI, UART, I2S, TWAI and IR
11 x Sewable Signal and Power Pad
3.3V Operating Voltage
3.3V Output Voltage
3.3V - 5.5V Input Voltage
50.00mm x 43.30mm x 7.25mm
