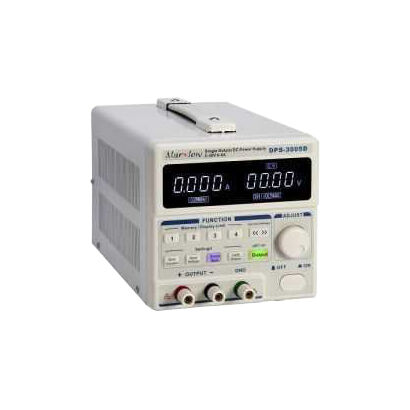

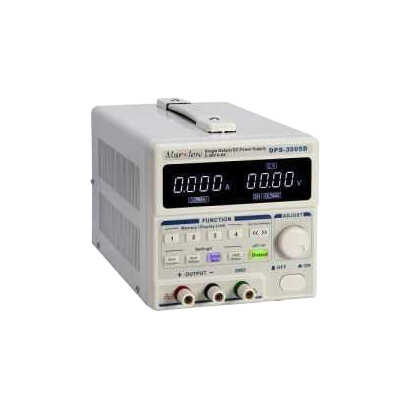

DPS-3005D has 4 modes. You can set these modes as you wish. This is an elegant power supply with it's white light on black display. It's output voltage is adjustable between 0-30V and it's output current can be 5A max. This product is commonly used in laboratories and workshops.
It is designed to be user-friendly with it's 4 different memory modes, high voltage and high current protection, warning beeper, a button that closes the output and lock-unlock features.
It has a 'FINE' pot on it for changing the voltage in small values and precision adjustment. Current value can be set as amperes or milliamperes. It has a feature of current limiting. In precision adjustment the steps are 10mV and 1mA.
Features:
- Over Current: Closing the output when the current is higher than the limit set.
- Over Voltage: Closing the output when the voltage is higher than the limit set.
- Lock-Unlock: Locking the all control buttons, leaving only the output on.
- White light on black display
- 0-30V adjustable output voltage
- 0-5A adjustable and fixable output current
- High voltage protection
- High current protection
- High temperature protection
- Exchangeable safety fuse (1.5A)
Dimensions:
- Product Dimensions: 300x160x170mm
- Weight: 5 kg
