Dobot Magician Robotic Arm (Training)

Dobot Magician Robotic Arm (Education)

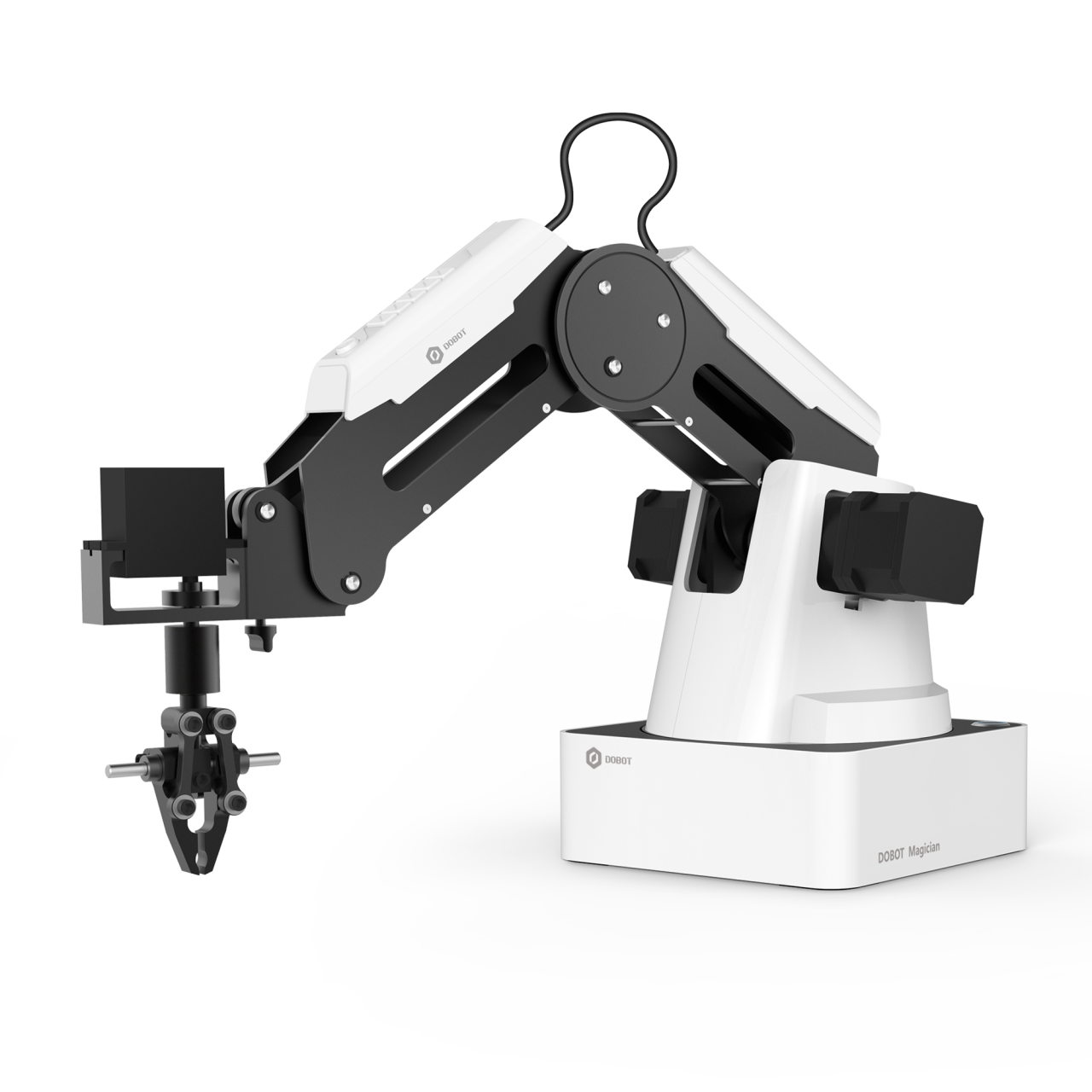

Dobot Magician is a multifunctional smart robotic arm platform designed for STEAM training. It also includes many different features such as 3D printing, laser engraving, writing, painting. At the same time, it works fully compatible with the Arduino platform thanks to its graphic programming and changeable titles. You can use it to develop your creativity and passion for development, as well as provide you with knowledge about hardware development, coding and automation systems with sample applications and rich curriculum, course content. Thanks to its replaceable heads, it allows you to perform many tasks on a single platform. Get all-in-one solutions with Dobot Magician, specially designed for educational institutions..




Dobot Magician Robotic Arm (Education) Kit Content:

• Robot Body
• Vacuum Holder

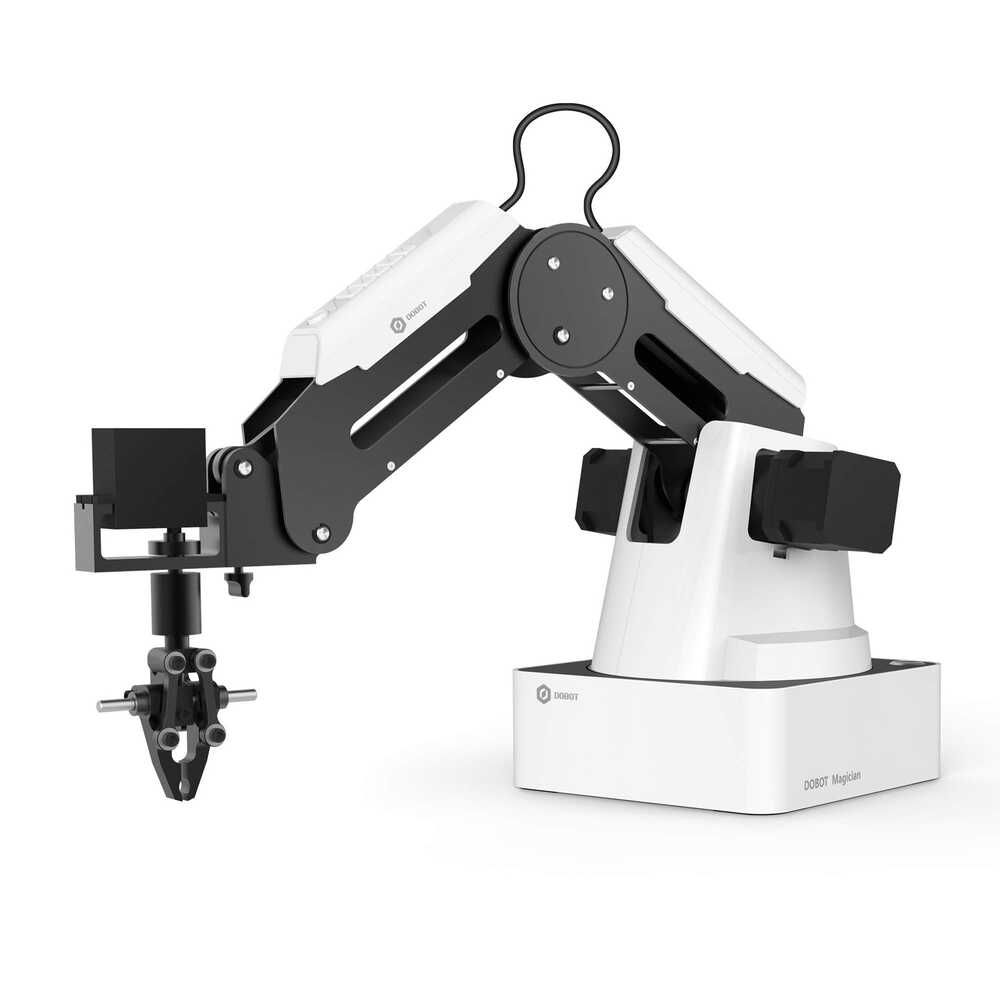

• Gripper Holder
• Bluetooth Module

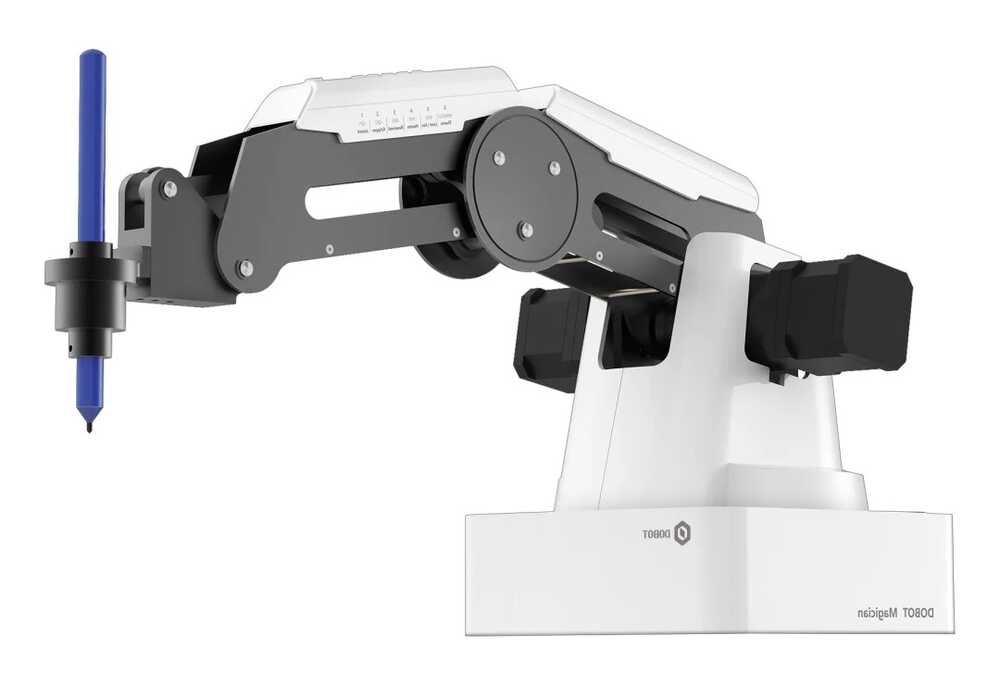

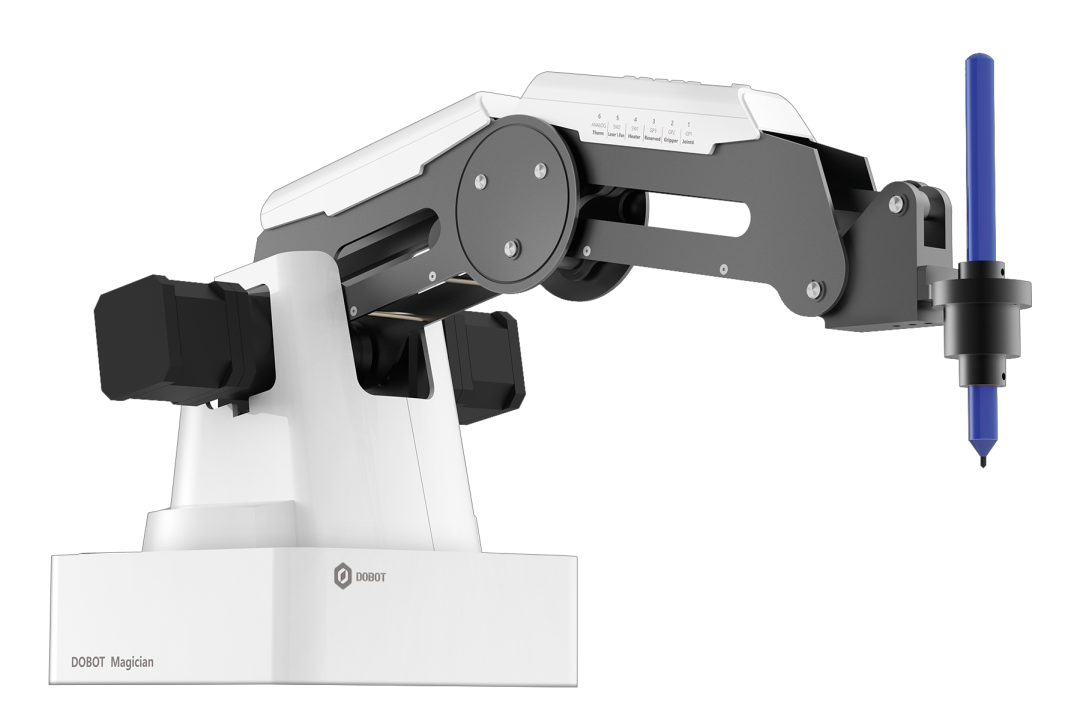

• Pen Drawing Module
• 3D Printer Module
• Lase Module
• Wi-Fi Module
• Joystick Control Kit




  Dobot Magician Robotic Arm (Education) Technical Specifications:


• Number of Axes: 4
• Maximum Loading Capacity (payload): 500gr
• Positioning Accuracy: 0.2mm
• Communication: USB/Bluetooth/WiFi (optional)
• Power Supply: 100V - 240V, 50/60Hz

• Power Input: 12 V / 7 A DC

• Maximum Power Consumption: 60W

• Operating Temperature: -10°C to 60°C

• Net Weight: 3.4kg

• Gross Weight: 7.2kg

• Body Dimensions (base): 158mm × 158mm

• Material: 6061 aluminum, ABS plastic

• Controller: Dobot Integrated Controller

• Package Size: 340mm × 300mm × 400mm

• Package Size: 340mm × 300mm × 400mm
