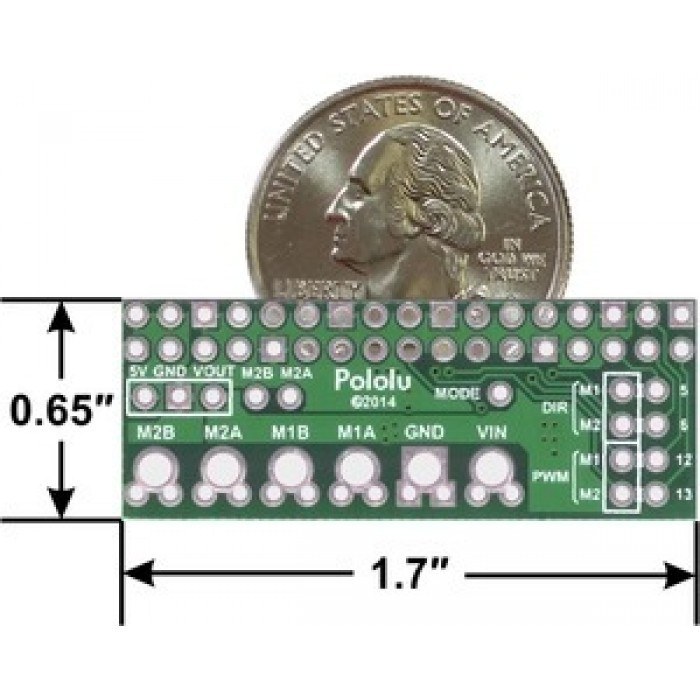

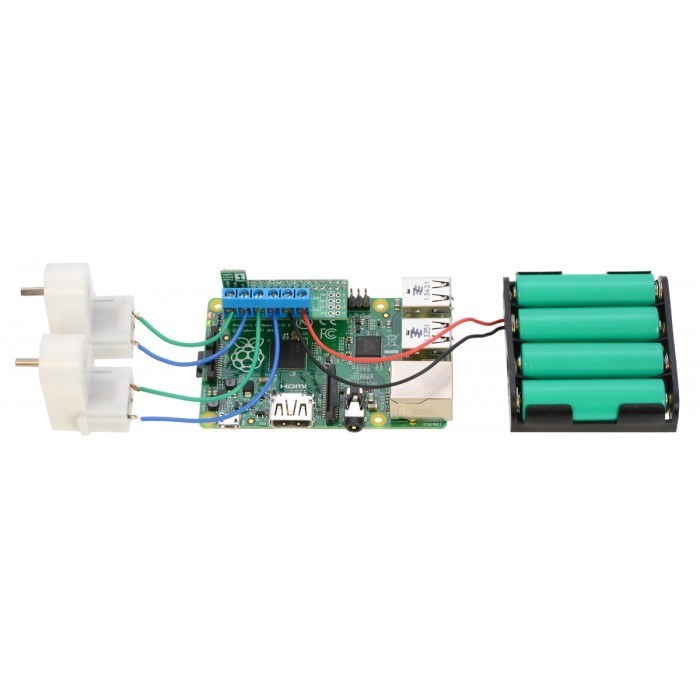

DRV8835 Pair Motor Driver Board is a small sized DC motor driver board which is designed for Raspberry Pi B+. You can drive 2 DC motor seperately via board. Board supports a very large voltage range (1,5V - 11V), so you can use this board easily at your projects. Board can deliver continuously 1.2A, peak 2.4A per channel.

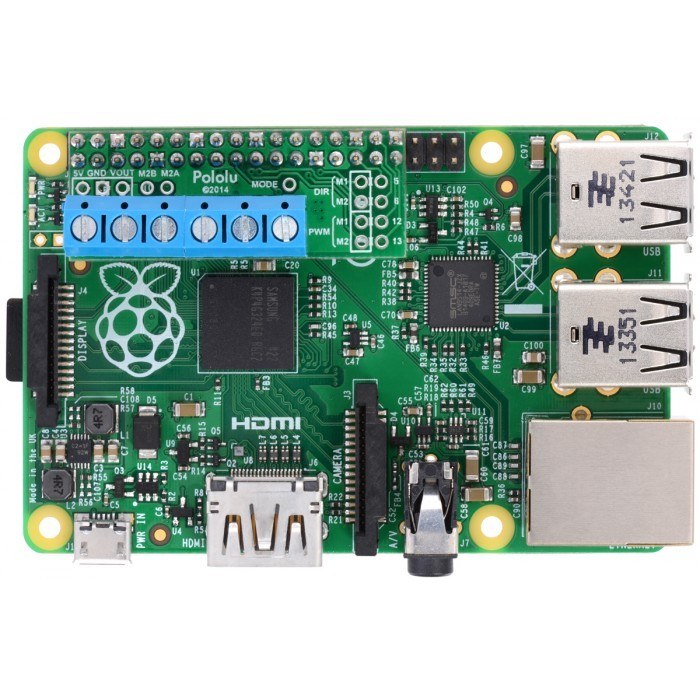

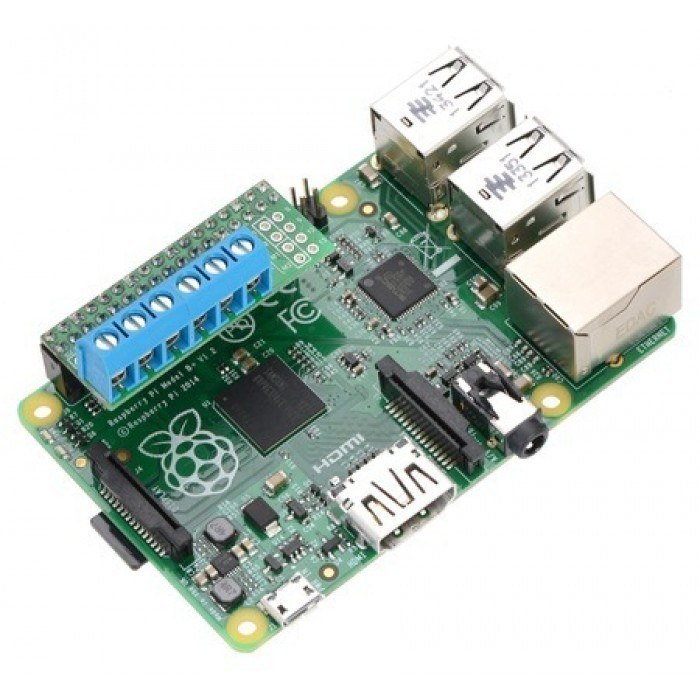

Board is compatible only with Raspberry Pi B+. (not compatible with Raspberry Pi model A or B). Because pin mapping of these models are different.

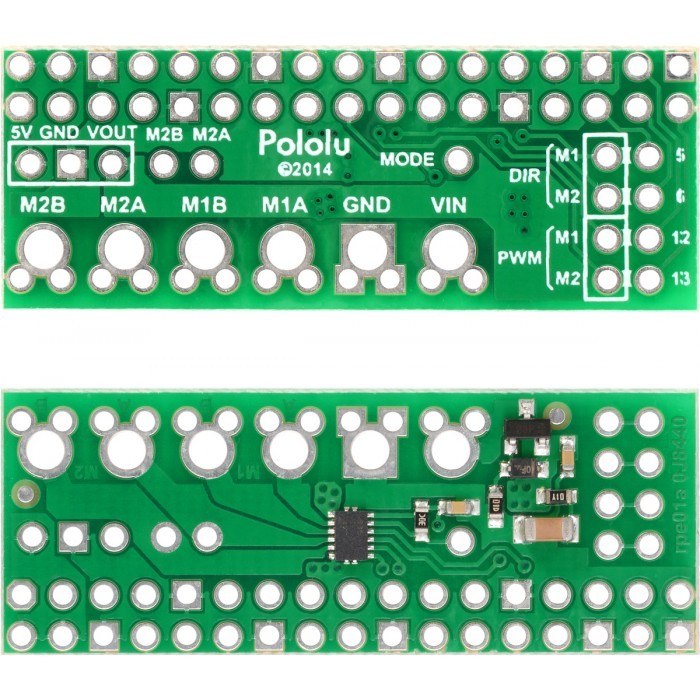

DRV8835 motor driver board uses 5, 6, 12 and 13. Rasbperry Pi B+ pins.

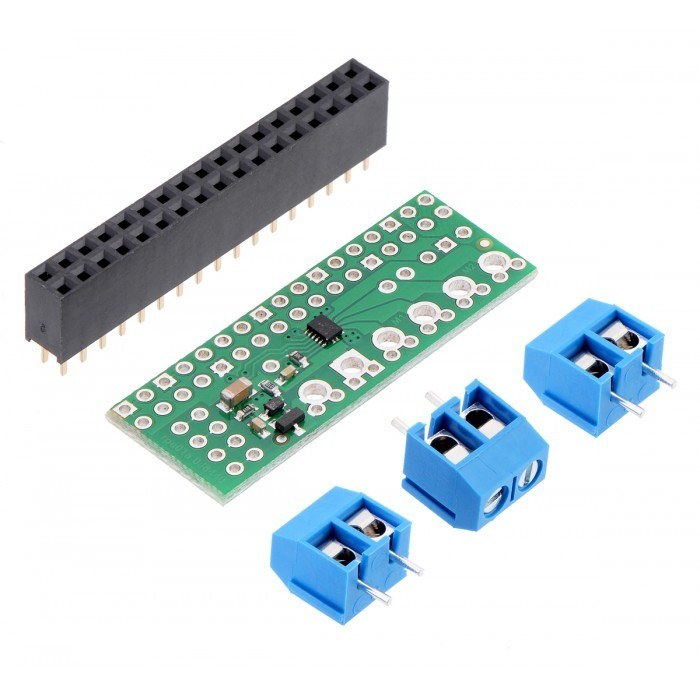

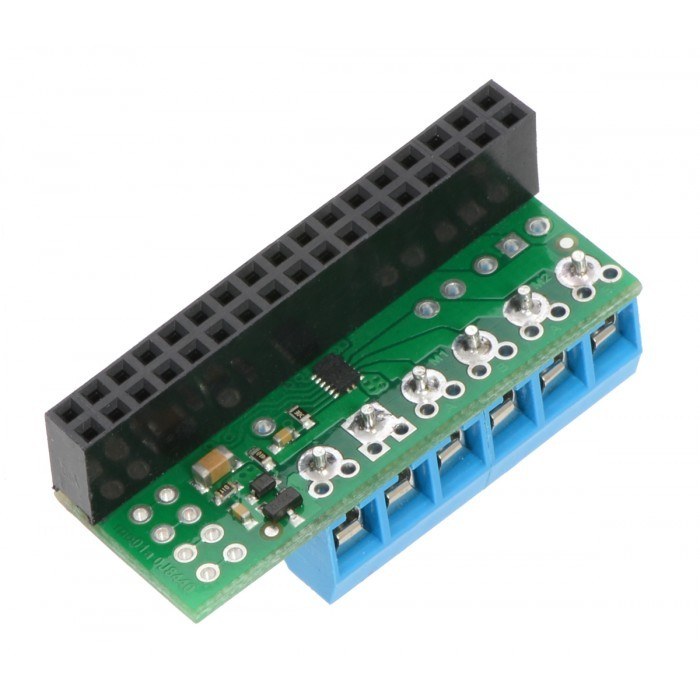

Note: Kit includes headers and terminals. Header and terminals are solderless.
Features:
- Motor Voltage: 1.5-11 V
- Logic High Signal: 2-7 V
- Peak Output Current: 1.2A (per channel)
- Continously Output Current: 2.4A (per channel)
- Maximum PWM frequency: 250 kHz
- Reverse voltage protection
- GPIO pin mappings can be customized if the default mappings are not convenient
