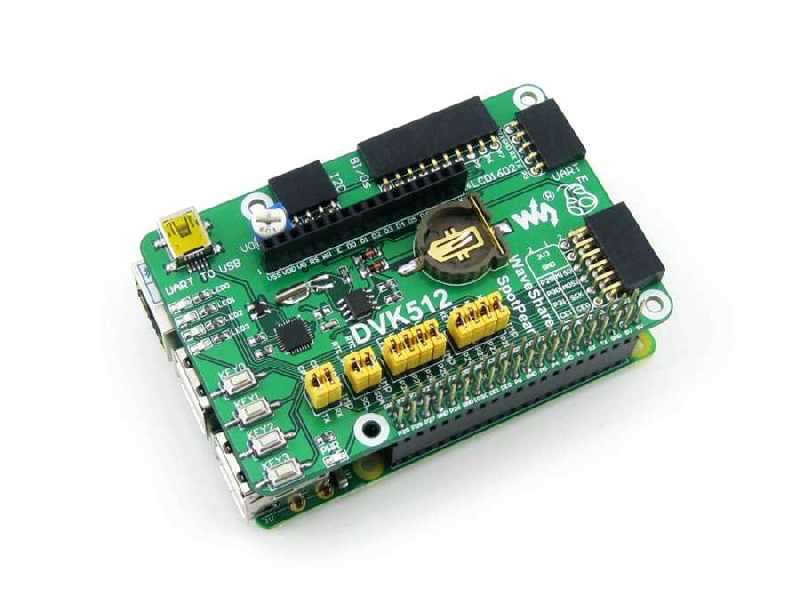

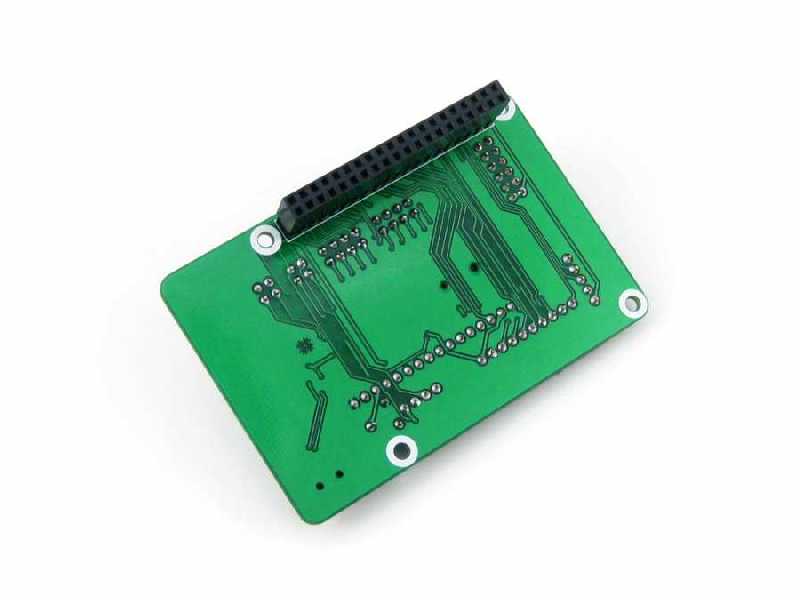

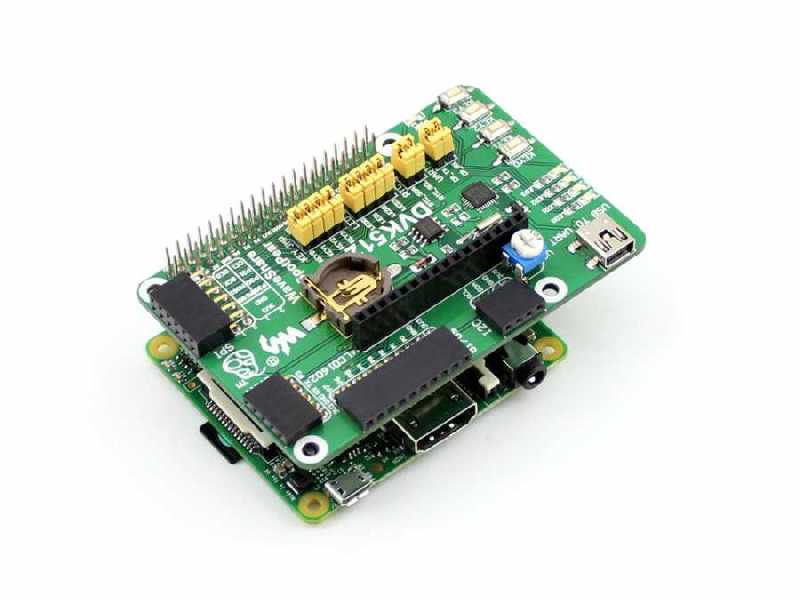

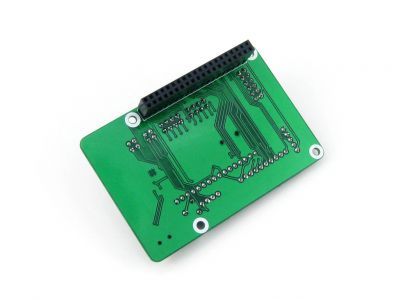

DVK512 Development Board can be plugged to the Raspberry Pi A+/B+/2/3 board. For develop Raspberry Pi implementations, various interface pins and components are available on it.
Through internal led and buttons, you can make prototyping easily. Also, UART, SPI, I2C and GPIO pins of Raspberry Pi is seperated from each other. These provides you to make connections easily. Pins for 16x2 LCD connection, CP2102 USB-UART Converter and USB port for debug,crystal or timing processes and battery housing are available on the board.

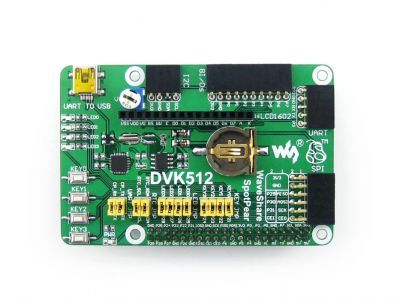

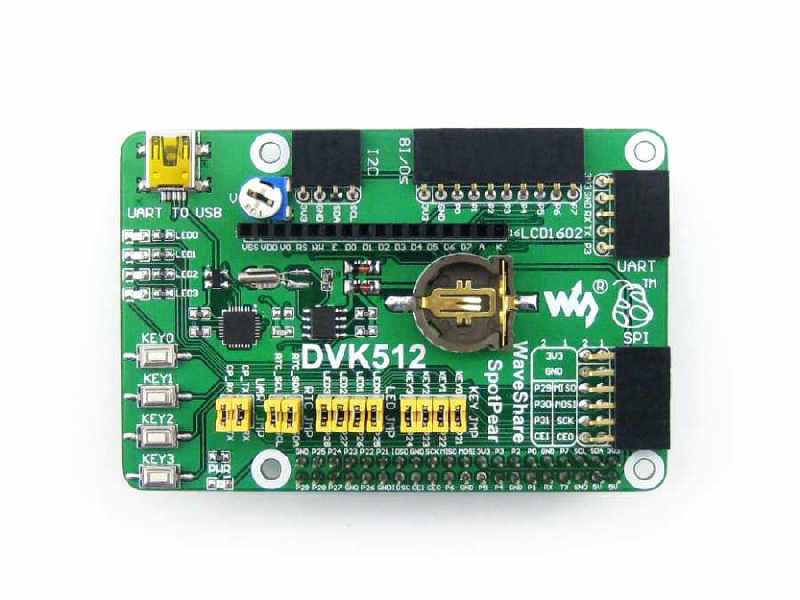

1-RPi connection pins
2-UART interface
3-8-pin I/O interface
4-SPI interface
5-I2C interface

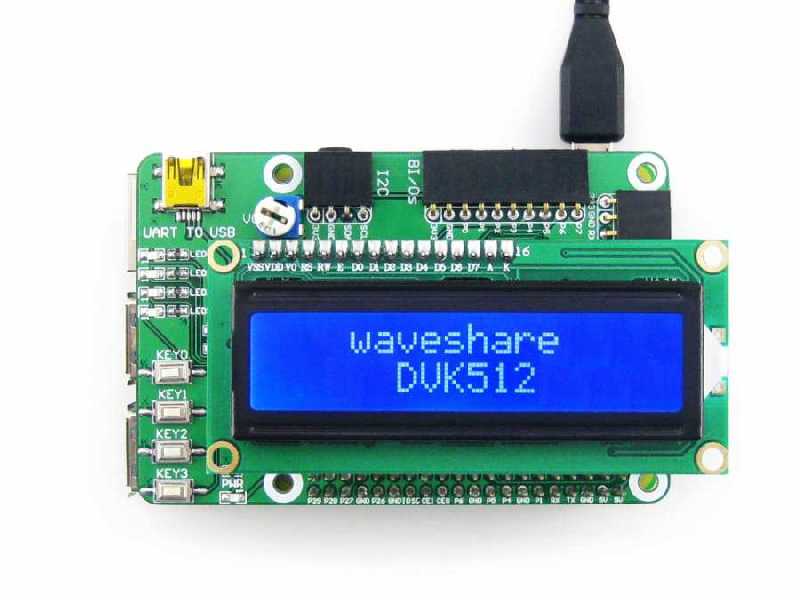

6-16x2 Character LCD interface
7-USB connector
8-Power indicator
9-User LEDs
10-User Buttons
11-Potentiometer
12-RTC Battery Housing
13-PCF8563: RTC chip
14-32.768K crysral: RTC crystal
15-CP2102: USB-UART converter for Debug
16-CP2102 jumper
17-RTC jumper
18-User LED jumpers
19-User button jumpers
Pacakge Includes:
- DVK512 x 1

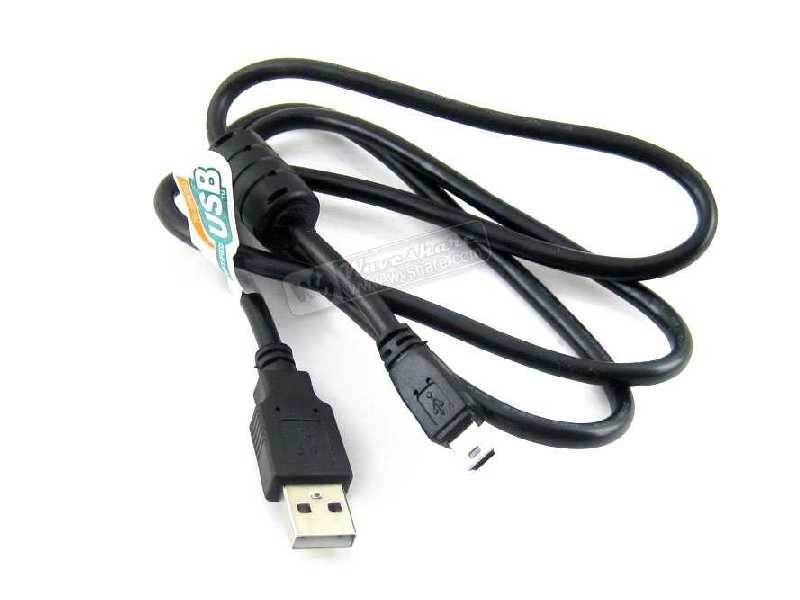

- Mini-USB Cable

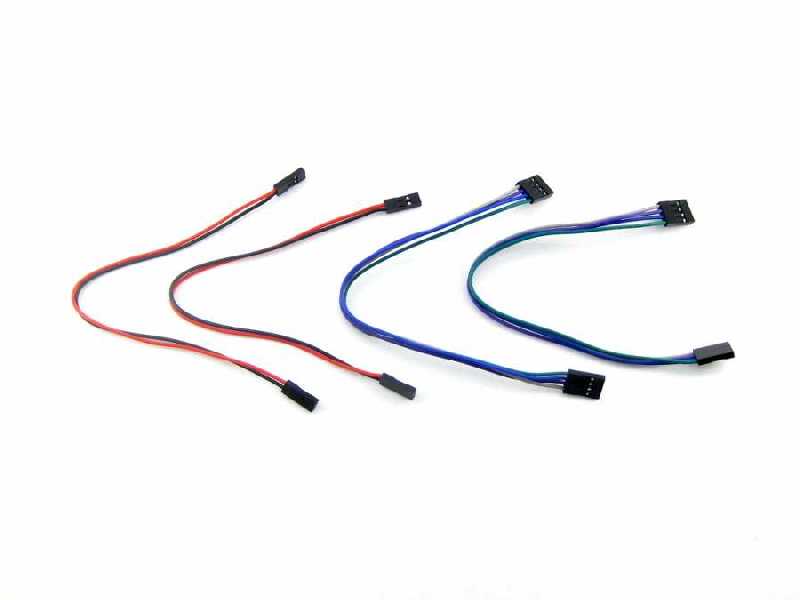

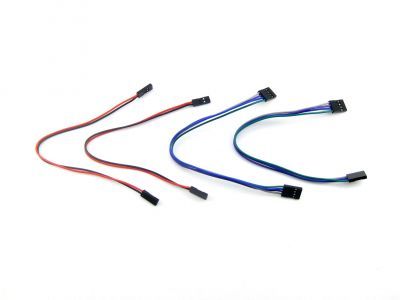

- 4-pin, 2-pin cable package x 1

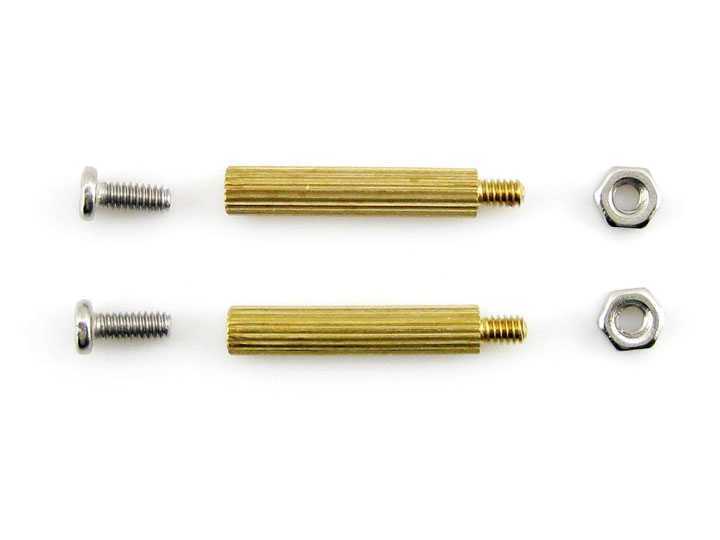

- RPi screw package x 1
- User Manual CD
Documents:
CD of the package have all of the documents which are shown in below. Also you an download these documents from here.
- User Manual
- Schematic (PDF)
- C examples (Linux API Source code)
- Development documents(Raspbian configuration, C libraries)
- Raspbian
C Examples:
- LED (I/Os)
- Logic Level Converter (I/Os)
- JOYSTICK (I/Os)
- Key (I/Os)
- BUZZER (PWM)
- DS18B20 (1-WIRE)
- IRM (I/Os)
- LCD1602 (I/Os)
- PCF8563 (RTC)
- PCF8591 (AD/DA)
- LSM303DLHC (I2C)
- L3G4200D (SPI)
- CP2102 (UART)
- GPS (UART)
