Brand
:
Elegoo
Product Code
:
22731
Baskı/Kesim Teknolojisi
:
FDM Makine Tipi
:
Kartezyen Çıktı Alanı
:
225x225x515mm Otomatik Kalibrasyon
:
Var Kablosuz Bağlantı
:
Var Dokunmatik Ekran
:
Var
SIGN IN
Cart
Out Of Stock
Notify me when its in stock

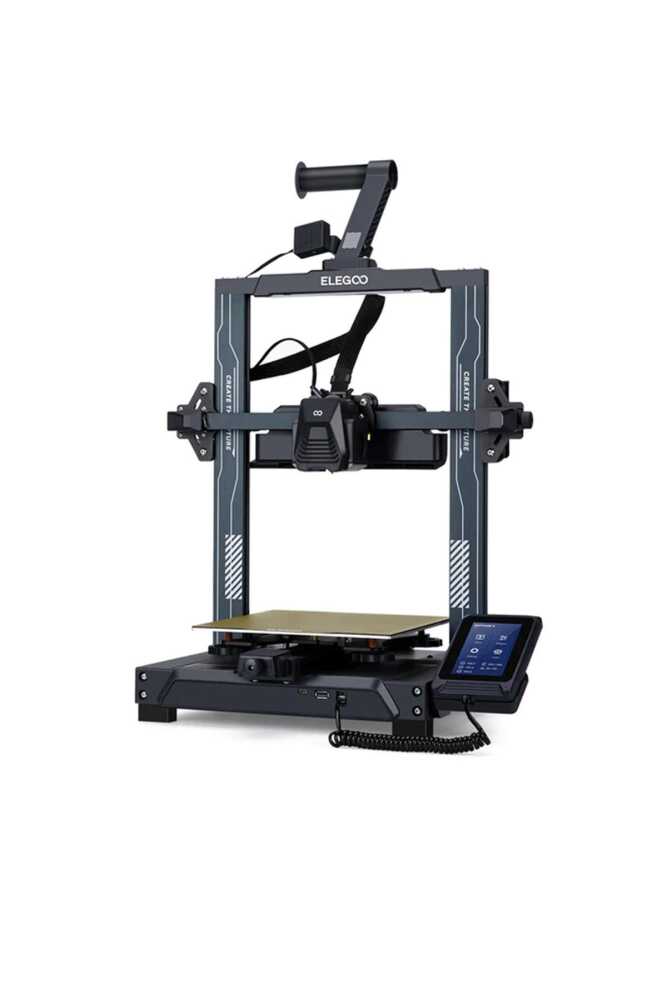

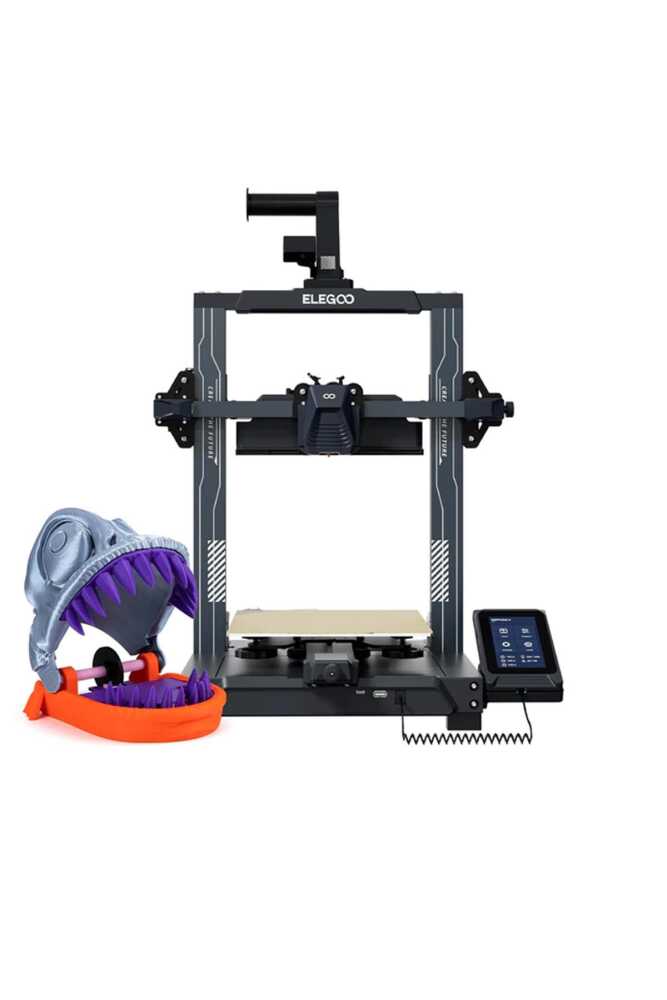

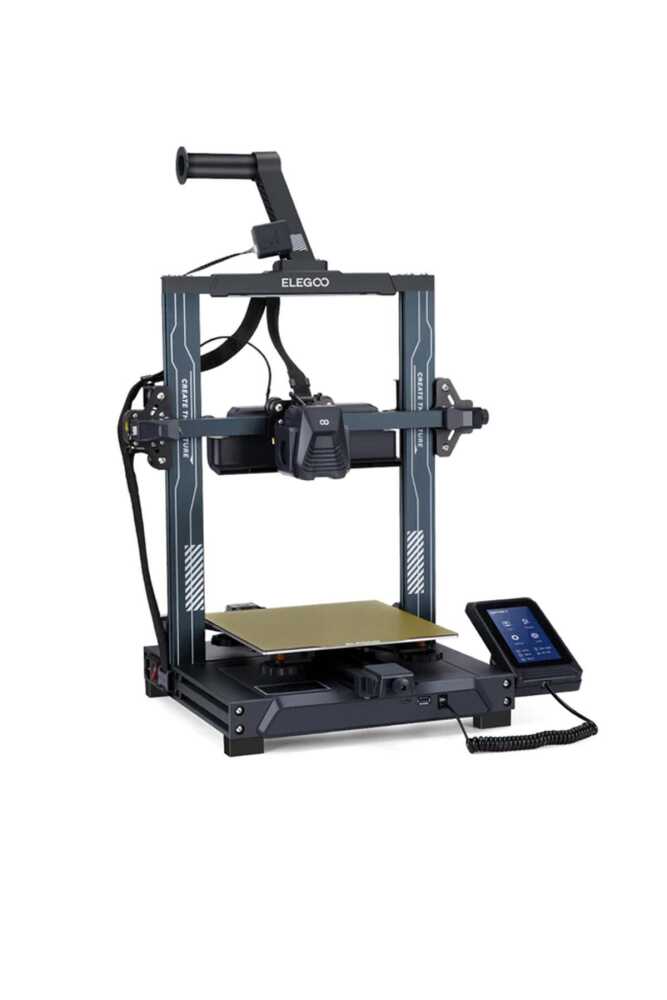

Elegoo Neptune 4 3D Printer
♦ Pre-installed Klipper Firmware: With a quiet Klipper motherboard and a high-performance ARM 64-bit 1.5G main frequency quad-core processor, the ELEGOO Neptune 4 can reach speeds of up to 500 mm/s (recommended 250 mm/s) for printing models; it supports input shaping and pressure advance functions to produce your models faster than ever and improve print quality; 8G RAM can store more than 400 models for fast printing.
♦ Dual Gear Direct Extruder: Featuring a new self-developed dual gear direct-driven extruder with a 5.2:1 gear ratio, it provides powerful extrusion and smooth filament feeding; coupled with a copper-titanium all-metal throat tube and a unique air channel design to effectively improve heat dissipation of the throat tube and reduce the risk of nozzle clogging.
♦ 300°C High-Temperature Nozzle: With a 300°C high-temperature nozzle and an extended hot end, filament can fully melt and flow evenly even at high printing speeds, making this printer capable of handling a wide range of materials including PLA, PETG, ABS, TPU, and high-temperature filaments like nylon.
♦Automatic Bed Leveling: With 121 (11x11) points of automatic bed leveling, it ensures quick and accurate leveling of the build platform; for perfect first layer printing, you can also use the manual leveling knobs under the build platform for auxiliary leveling; additionally, the PEI magnetic platform allows printed models to be easily removed with just a slight bend.
♦Efficient and Instant Cooling: Featuring two thickened double-sided 4015 model cooling fans with strong wind for more comprehensive and efficient heat dissipation, and four 4020 ball-bearing fans placed behind the print head to quickly cool the printed model, ensuring high print quality even at very high print speeds.
♦ Removable Capacitive Touch Screen: The 4.3-inch removable capacitive touch screen can be operated by hand or fixed to the base for operation and features a model preview function and print pause function for added convenience; it is paired with an LED light in the nozzle and a 30-bead and headlamp portal's LED light strip for observing model printing in a dark environment.
Klipper Ready
The ELEGOO Neptune 4 comes pre-installed with Klipper firmware for faster command processing and execution with an ARM 64-bit 1.5G main frequency quad-core processor, enabling impressive print speeds of up to 500 mm/s for higher efficiency. 8G RAM provides ample storage for fast printing.
Additionally, the printer supports advanced features such as input shaping, which reduces mechanical vibrations in the printer's motion system and defects such as ringing, rippling, shadowing, or echoing on the printed model surface; the pressure advance function ensures consistent pressure at the nozzle by adjusting material flow according to print speed, reducing filament oozing or dripping.
| TECHNICAL SPECIFICATIONS | |||
| Technology: | FDM | Mainboard: | ARM 64-bit dual-core high-speed silent mainboard |

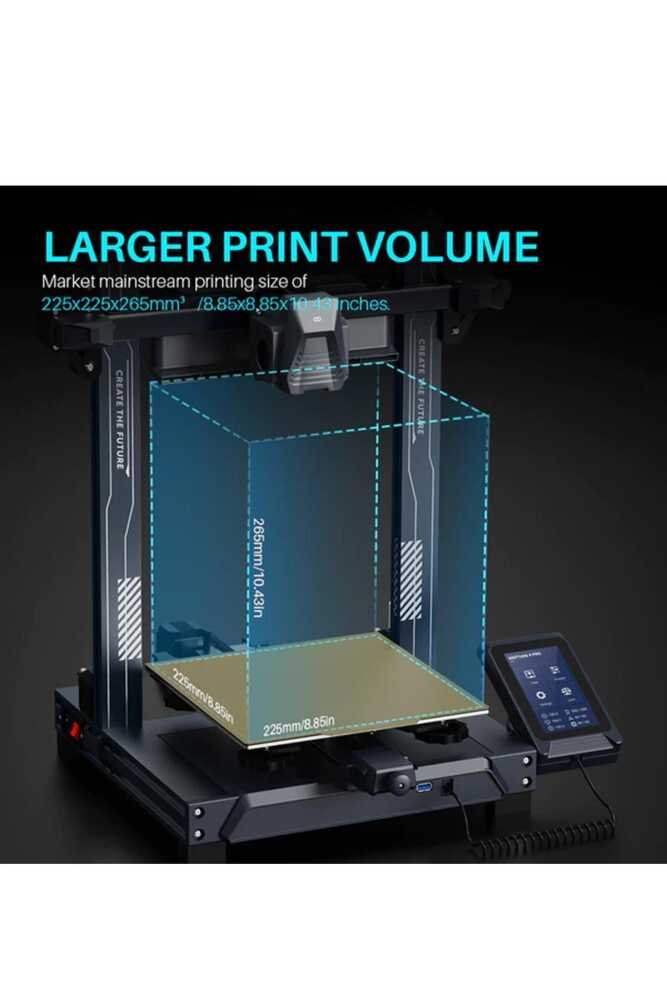

| Screen: | 4.3-inch Color Capacitive Touch Screen | Print Volume: | 225 x 225 x 265 mm³ |
| Platform: | 235 x 235 mm | Printer Size: | 475 x 445 x 515 mm |
| Package Size: | 625 x 490 x 235 mm | Net Weight: | 8.3 KG |
| Shipping Weight: | 11 KG | Print Accuracy: | ± 0.1 mm |
| Nozzle Diameter: | 0.4 mm | Nozzle Quantity: | 1 |
| Extrusion Reduction Ratio: | 5.2 | Extruder: | Dual Gear Direct Drive Extruder |
| Filament Diameter: | 1.75 mm | Layer Thickness: | 0.1 ~ 0.4 mm (Recommended 0.2 mm) |
| Calibration: | Manual+Automatic Calibration | Automatic Calibration Detection Points: | 121 |
| Print Speed: | 30-500 mm/s (Recommended Speed: 250 mm/s) | Ambient Temperature: | 5°C - 40°C |
| Nozzle Max. Temperature: | 300°C | Bed Max. Temperature: | 110°C |
| Connectivity: | LAN, USB | Filaments: | PLA/ABS/TPU/Nylon |
| Slicer: | Cura | File Format: | .STL/.OBJ/.AMF |
| Operating System: | Windows, Mac OS, Linux | Language: | Multiple Languages Supported |
| Input Voltage: | 100V - 240V | Power Supply: | Meanwell 24V / 270W |
| Operating Noise: | <50dB(A) | Chassis Material: | Aluminum Alloy |
| Frame Material: | Metal + Injection Molding | Platform Material: | Glass + PEI Magnetic |
