Notify me when its in stockELEGOO Neptune 4 Max FDM 3D Printer
Automatic Bed Leveling, Dual Gear Direct Extruder, Ultra Quiet Printing, Dual Lead Screw Drive, Large Print Size 420x420x480mm³ / 16.53x16.53x19.68 Inches
♦ Print Volume: 420*420*480 mm
♦ Maximum Print Speed: 500 mm/s
♦ 11x11(121) Point Automatic Recommendation
♦ Nozzle Temperature Up to 300°C
♦ Compatible with PLA / PETG / ABS / TPU / NYLON Filaments
♦ WiFi / WLAN / USB Transfer
Klipper Firmware
Neptune 4 Max comes with powerful Klipper firmware that supports advanced features like input shaping and pressure advance, providing impressive print speeds up to 8000 mm/s (default 250 mm/s). With our preloaded Klipper firmware, you can start printing right away without the hassle of loading firmware.
Equipped with acceleration sensors on the X and Y axes for automatic calibration and improved print quality.
Klipper High-Speed Motherboard
With a 64-bit 1.5G main frequency quad-core processor, it offers print speeds of up to 500 mm/s.

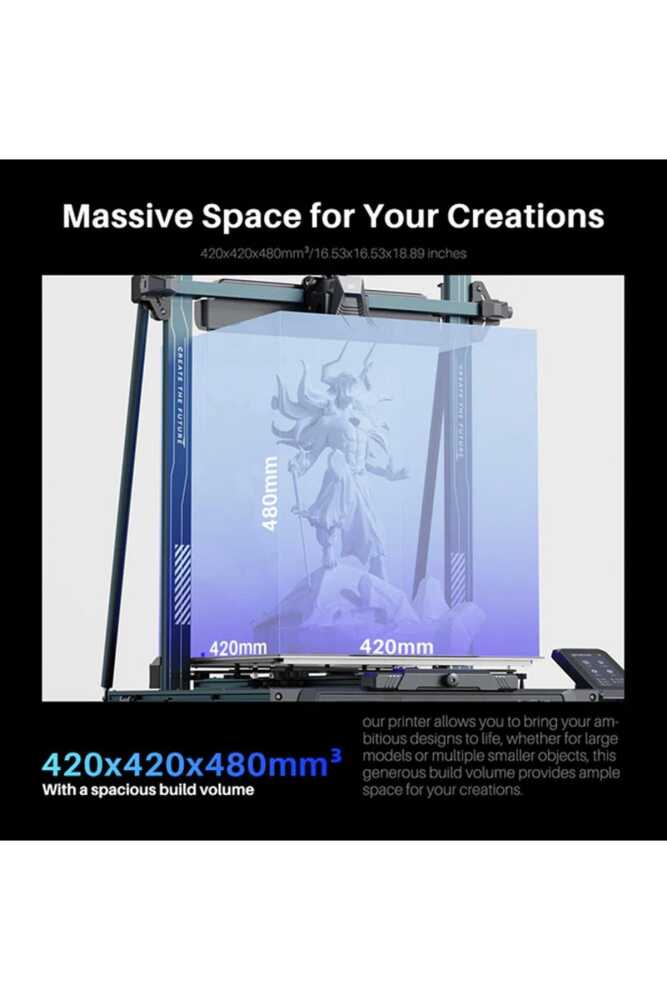

Large Build Volume
With a print volume of 420x420x480 mm, it allows you to realize ambitious designs for large models or multiple small objects, providing ample space for your generous creations.
Fast and Precise Extrusion
Equipped with a dual-gear direct extruder hardware with a 5.2:1 reduction (gear) ratio.
300°C High-Temperature Nozzle Kit
Capable of reaching up to 300°C with a ceramic 60W heater and a block made of brass material.
Effective Cooling Performance
Quickly solidifies and maintains its shape throughout the printing process, providing excellent prints.
TECHNICAL SPECIFICATIONS | |
Build Volume | 420 X 420 X 480 MM |
Maximum Print Speed | 500 mm/s |
Nozzle | 300 C High-Temp Nozzle |
Software | Klipper |
Cooling Fan |
2x4015 Ball Bearing Cooling Fans 3010 Ball Bearing Cooling Fan 2x6025 Ball Bearing Cooling Fans |
Bed Calibration | 121-Point |
LED | 30 Led Light Bars |
Extruder Type | Dual-gear Direct Extruder |
Nozzle LED | Yes |
Power | 320W |
Bed Temperature | 85°C |
Magnetic PEI Platform | Yes |
Additional Features |
POM V-guide wheels
Dual Y-axis profile with two rows of 3+3V wheels |
