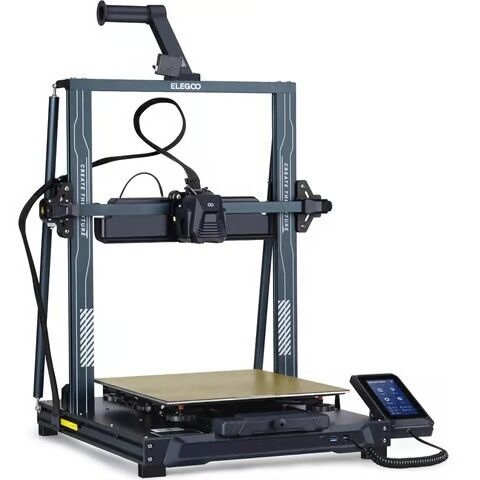

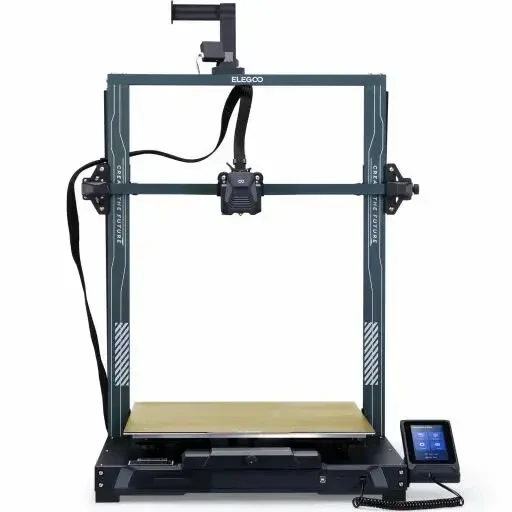

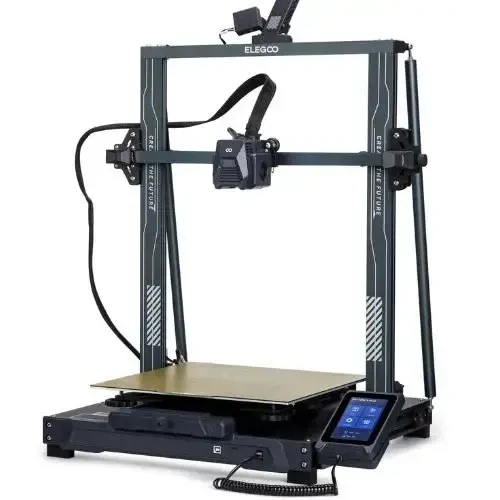

Elegoo Neptun 4 Plus 3D Printer

Elegoo Neptune 4 Plus 3D Printer

Print Volume: 320*320*385mm
Maximum Print Speed: 500 mm/s
11 x 11 (121) Point Automatic Bed Leveling
Up to 300°C Nozzle Temperature
Compatible with PLA/PETG/ABS/TPU/Nylon Filaments
WiFi / WLAN / USB Transfer



121 Point Automatic Bed Leveling, Dual Gear Direct Extruder, Ultra Quiet Printing, Removable Capacitive Screen, 320x320x385 mm³ / 12.59x12.59x15.74 Inch Large Print Size



Klipper Manufacturer Software

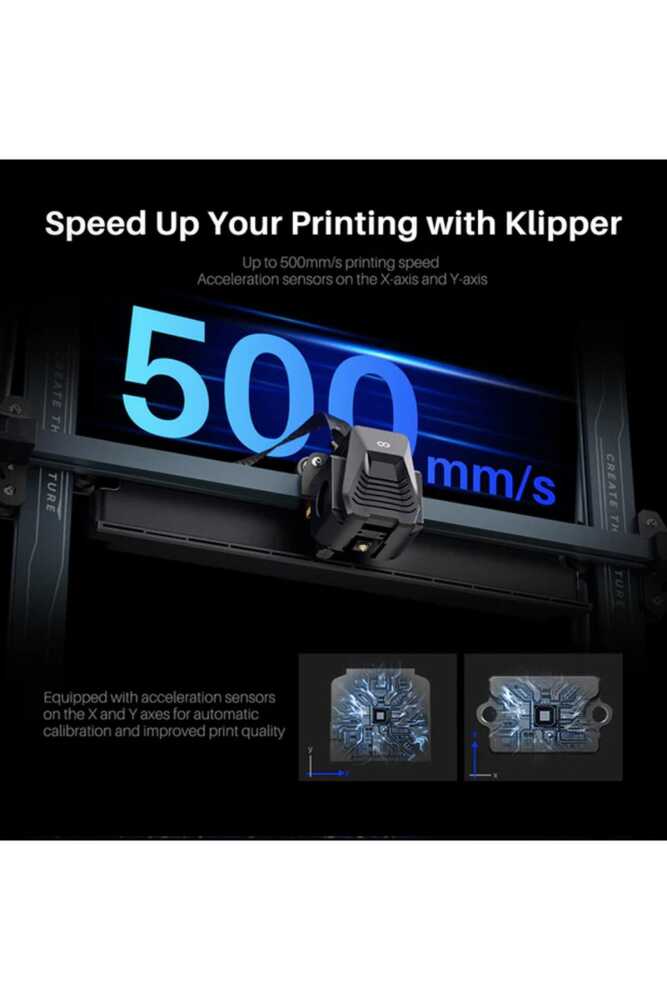

The Neptune 4 Plus comes with powerful Klipper product software that supports impressive print speeds of up to 500 mm/s (default 250 mm/s) and accelerations of up to 12000 mm/s, along with advanced features like input shaping and pressure advance.

Equipped with acceleration sensors on the X and Y axes for automatic calibration and enhanced print quality



Klipper High-Speed Motherboard

With a 64-bit 1.5GHz quad-core processor, it provides print speeds of up to 500 mm/s.



320 x 320 x 385 mm³ Print Volume

Allows you to realize ambitious designs for large models or multiple small objects, providing ample space for your creative creations.



Fast and Precise Extrusion

Equipped with a dual-gear direct extruder hardware with a 5.2:1 reduction (gear) ratio.



300 C High-Temperature Nozzle Kit

Capable of reaching up to 300 C with its 60W ceramic heater and brass block.



Effective Cooling Performance

Quickly solidifies and maintains its shape throughout the printing process, providing excellent prints.







TECHNICAL SPECIFICATIONS
Print Volume	320 X 320 X 385 MM
Maximum Print Speed	500 mm/s
Nozzle	300 C High-Temp Nozzle
Software	Klipper
Cooling Fan	2x4015 Ball Bearing Cooling Fans  3010 Ball Bearing Cooling Fan    2x6025 Ball Bearing Cooling Fans
Bed Calibration	121-Point
LED	30 Led Light Bar
Extruder Type	Dual-gear Direct Extruder
Nozzle LED	Yes
Power	320W
Bed Temperature	85 C
Magnetic PEI Platform	Yes
Additional Features	POM V-guide wheels    Dual Y-axis profile with two rows of 3 + 3V wheels
