EMAX Simon Series 30A for Muti-Copter

EMAX Simon Series 30A for Muti-Copter

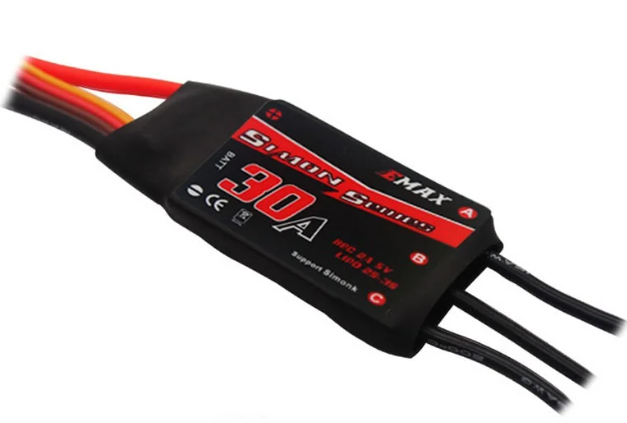

The EMAX Simon Series 30A For Muti-Copter is a brushless DC motor speed controller. Based on optimized SimonK firmware for excellent drive performance. Thanks to its low output resistance feature, it greatly improves the power balance, which in turn extends the battery life. It also has features such as low voltage protection, overheat protection, throttle and signal loss protection. It increases the ability of the ESC to eliminate magnetic interference as it has separate power supply for MCU and BEC.

EMAX Simon Series 30A For Muti-Copter Technical Specifications:

• Size: 55 x 28 x 7mm
• Weight: 28g
• Continuous current: 30A
• Anti-explosion current (10s): 40A
• Li-Po battery: 2-3S
• BEC mode: Linear
• BEC Output: 5V/2A
