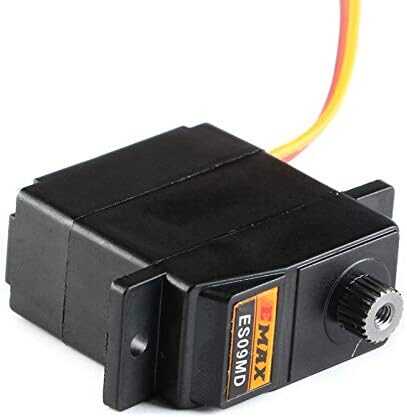

ES09MD Mini Servo Motor

ES09MD Mini Servo Motor

The ES09MD Mini Servo Motor is an excellent choice that offers high performance and precision despite its small size. This compact servo motor is ideal for drones, robots, RC vehicles, and similar applications. Its special design allows for quick response and precise control.

The ES09MD Mini Servo Motor operates within a wide range of 4.8V to 6.0V, making it versatile for various uses. It delivers strong performance with a speed of 0.10 s/60° (6.0V) and a torque of 1.8 kg·cm (6.0V). Additionally, its compact dimensions of 32 x 11.5 x 24 mm and a weight of only 8.5 grams make it lightweight and easy to integrate.

This servo motor is suitable for both professional engineers and hobbyist users. It's an ideal choice to optimize your projects and enhance control. With the ES09MD Mini Servo Motor, make your devices more efficient and powerful.

ES09MD Mini Servo Motor Technical Specifications:

• Model: ES09MD
• Type: Mini Servo Motor
• Operating Voltage: 4.8V - 6.0V
• Speed: 0.10 s/60° (6.0V), 0.12 s/60° (4.8V)
• Torque: 1.8 kg·cm (6.0V), 1.5 kg·cm (4.8V)
• Dimensions: 32 x 11.5 x 24 mm
• Weight: 8.5 grams
