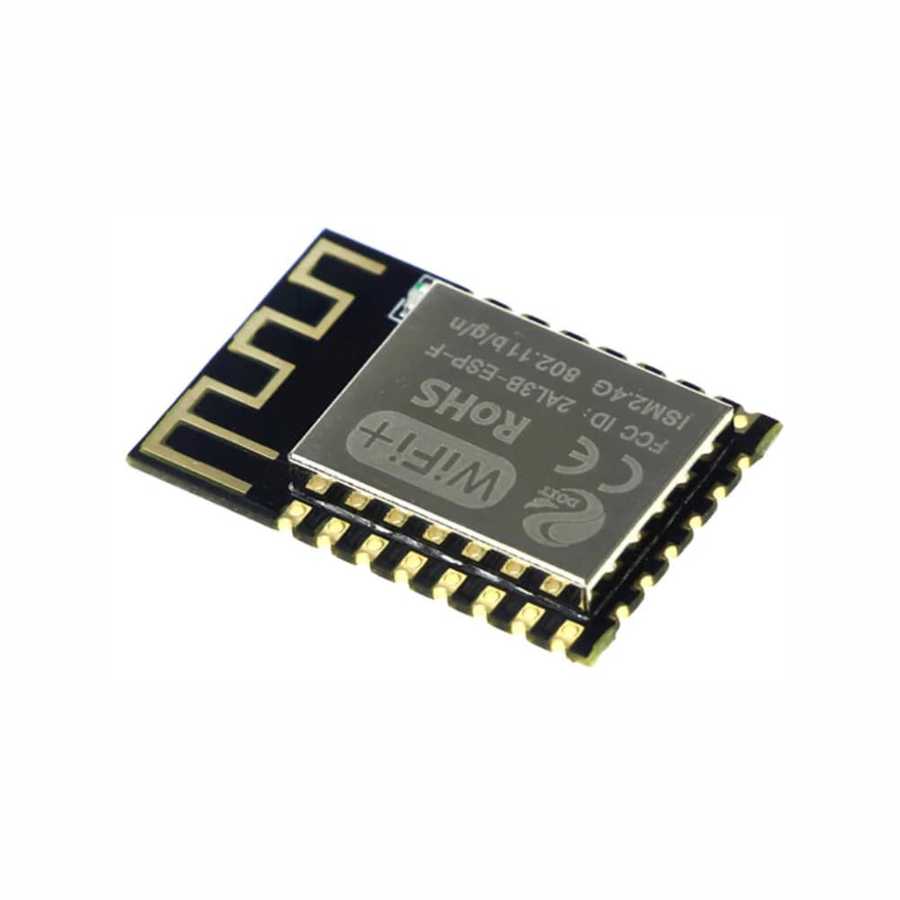

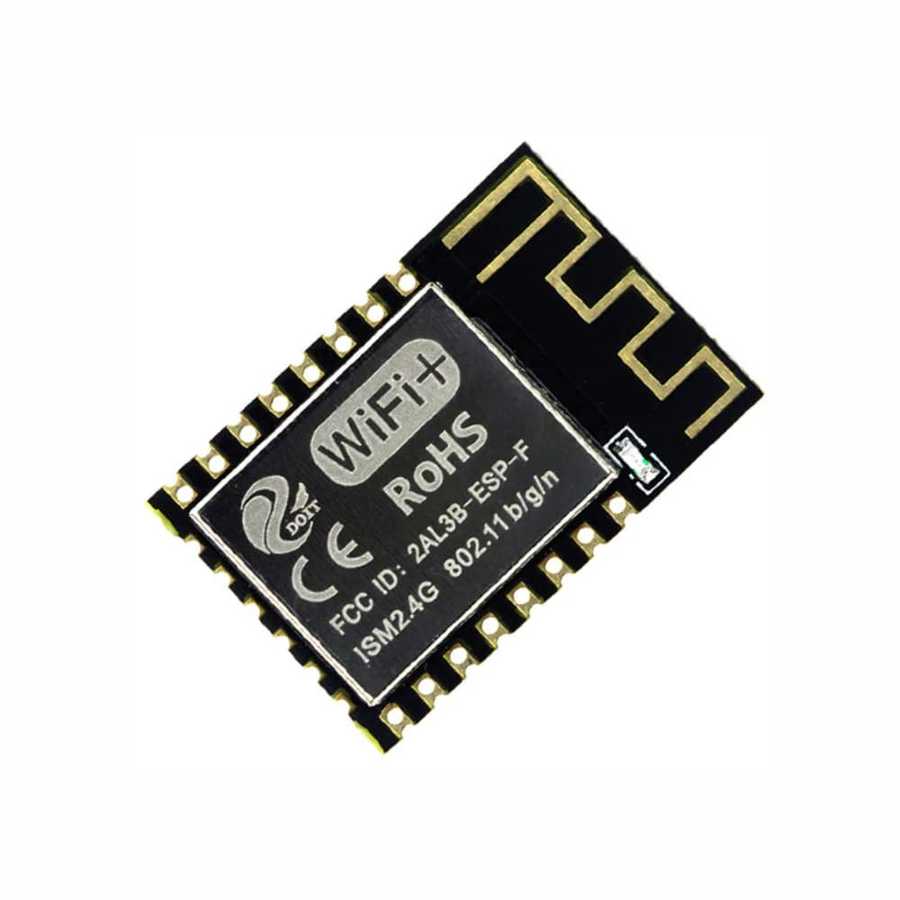

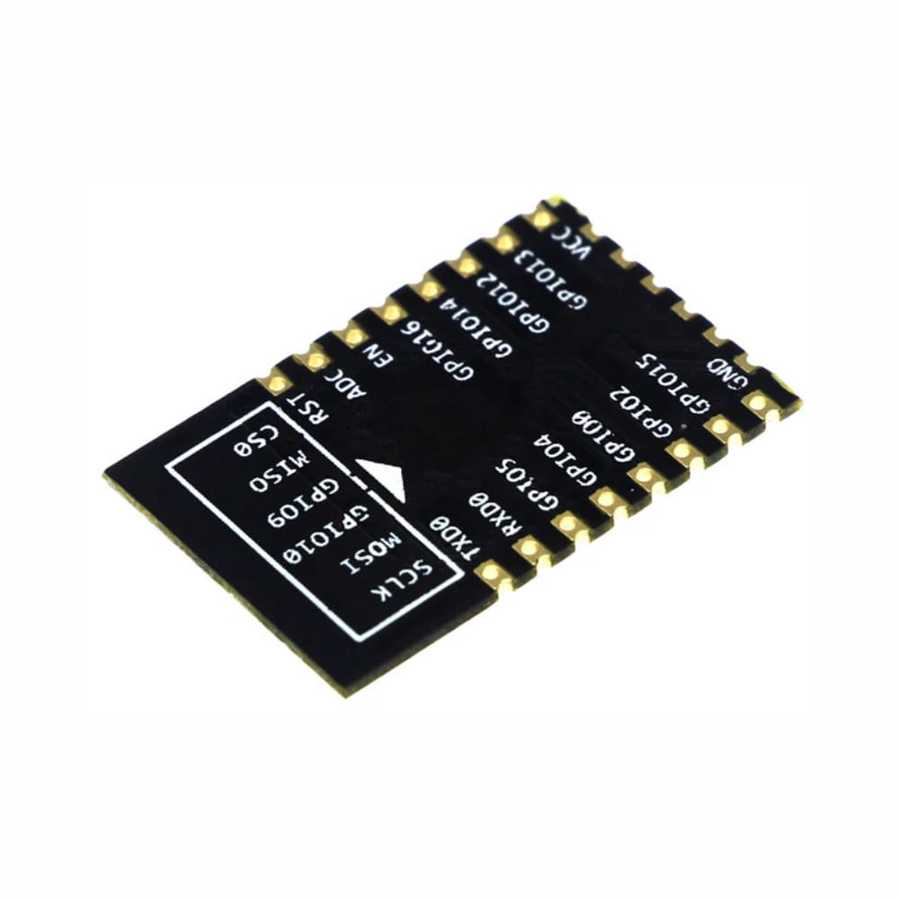

ESP-12F is the updated SMD version of the popular ESP8266 WiFi module. It is perfect for your IoT applications and projects.
Specifications:
- 802.11 b/g/n wireless network support
- 32-bit low power CPU
- 10-bit DAC (digital-to-analog converter)
- Support for TCP/IP stack
- 4MB SPI flash (program memory)
- Integrated PLL, regulator and power management
- Supports antenna diversity
- WPA/WPA2 supported WiFi (2.4 GHz)
- STA/AP/STA+AP WiFi modes
- SmartLink support for Android and iOS devices
- SDIO 2.0, (H)SPI, UART, I2C, I2S, IRDA, PWM and GPIO comminucations
- Current consumption: Deep sleep <10µA, power-off 5<µA
- Data transmission delay after wake-up <2ms
- Power consumption on stand-by mode: <1.0mW (DTIM3)
- +20dBm RF output power on 802.11b mode
- Operating temperature: -40ºC ~ 125ºC
