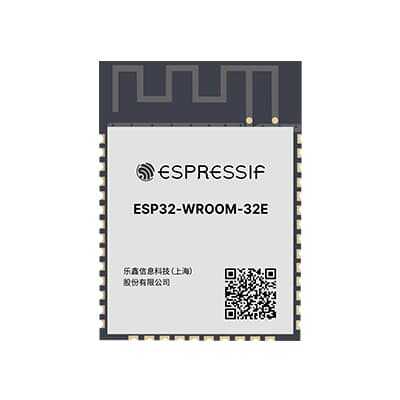

Espressif ESP32-WROOM- 32E 16M 128Mbit Flash WiFi Bluetooth Module

Espressif ESP32-WROOM- 32E 16M 128Mbit Flash WiFi Bluetooth Module

It is a microcontroller with built-in WiFi and Bluetooth. You can opt for both using the IoT (Internet Things) technology you make for maximum comfort to the user. This small card, which is in the structure of NodeMCU, contains internal high and low power consuming WI-FI and Bluetooth style chips.

ESP32-WROOM-32E is a Wi-Fi+BT+BLE MCU module targeting a wide range of applications, from low-power sensor networks to the most demanding tasks such as audio encoding, music streaming and MP3 decoding. The ESP32-WROOM-32E comes with a PCB antenna for Bluetooth and Wifi connectivity. These modules are equipped with 4 to 16 MB of external SPI flash.

Espressif ESP32-WROOM-32E 16M 128Mbit Flash Wi-Fi Bluetooth Module Technical Specifications:

• Model: ESP32-WROOM-32E
• Wi-Fi Protocols: 802.11 b / g / n (150 Mbps'ye kadar 802.11n)
• Frequency Range: 2.4 GHz ~ 2.5 GHz
• Bluetooth Protcols: Bluetooth v4.2 BR / EDR ve BLE properties. Class-1, Class-2 ve Class-3 transmitter
• Sound: CVSD and SBC
• Hardware Module Interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC
• On-Chip Sensor: Hall sensor
• Integrated Crystal: 40MHz crystal
• Integrated SPI Flash: 16 MB
• Operating Voltage / Power Supply: 3.0 V ~ 3.6 V
• Average Working Current: 80 mA
• Minimum Current Powered by Power Supply: 500 mA
• Recommended Operating Temperature Range: –40 °C ~ +85 °C

Package Included:

• Espressif ESP32-WROOM-32E 16M 128Mbit Flash Wi-Fi Bluetooth Module
