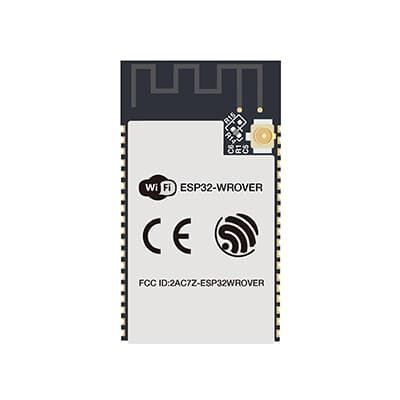

Espressif ESP32-WROVER 8M 64Mbit Flash WI-FI Bluetooth Module

Espressif ESP32-WROVER 8M 64Mbit Flash WI-FI Bluetooth Module

It is a microcontroller with built-in WiFi and Bluetooth module. You can choose to use IoT (Internet Of Things) technology in your projects to provide maximum comfort to both the constructor and the user. This small card, which is in the structure of NodeMCU, contains chips that provide high-speed and low-power Wi-Fi and Bluetooth connections internally.

Unlike other models of the same series, "PCB Antenna" type is used in ESP32-WROVER. This "PCB" antenna technology offers less coverage than models with "Ipex" antennas. You can use this type of antenna in your projects where you need shorter distance communication.

Espressif ESP32-WROVER 8M 64Mbit Flash Wi-Fi Bluetooth Module Technical Specifications:

• Model: ESP32-WROVER
• Wi-Fi Protocols: 802.11 b / g / n ( 802.11n up to 150 Mbps)
• Frequency Range: 2.4GHz ~ 2.5GHz
• Bluetooth Protocols: Bluetooth v4.2 BR / EDR and BLE features. Class-1, Class-2 and
• Class-3 transmitter
• Audio: CVSD and SBC
• Hardware Module Interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM,
• I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC
• On-Chip Sensor: Hall sensor
• Integrated Crystal: 40MHz crystal
• Integrated SPI Flash: 8 MB
• Operating Voltage / Power Supply: 3.0V ~ 3.6V
• Average Working Current: 80 mA
• Minimum Current Powered by Power Supply: 500 mA
• Recommended Operating Temperature Range: –40 °C ~ +85 °C

Package Included:

• Espressif ESP32-WROVER 8M 64Mbit Flash WI-FI Bluetooth Module
