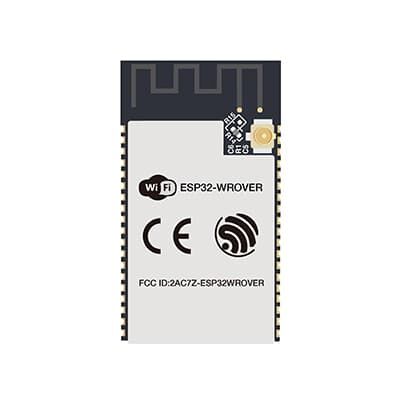

Espressif ESP32-WROVER-Ipex 4M 32Mbit Flash Wi-Fi Bluetooth Modülü
It is a microcontroller with built-in WiFi and Bluetooth module. You can choose to use IoT (Internet Of Things) technology in your projects to provide maximum comfort to both the constructor and the user. This small card, which is in the structure of NodeMCU, contains chips that provide high-speed and low-power Wi-Fi and Bluetooth connections internally.
Unlike other models of the same series, ESP32-WROVER-Ipex has an antenna with an "Ipex" connector. Thanks to this "Ipex" antenna technology, it offers more coverage than the "PCB Antenna" models.
Espressif ESP32-WROVER-Ipex 4M 32Mbit Flash Wi-Fi Bluetooth Module Technical Specifications:
- Model: ESP32-WROVER-Ipex
- Wi-Fi Protocols: 802.11 b / g / n ( 802.11n up to 150 Mbps)
- Frequency Range: 2.4GHz ~ 2.5GHz
- Bluetooth Protocols: Bluetooth v4.2 BR / EDR and BLE features. Class-1, Class-2 and
- Class-3 transmitter
- Audio: CVSD and SBC
- Hardware Module Interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM,
- I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC
- On-Chip Sensor: Hall sensor
- Integrated Crystal: 40MHz crystal
- Integrated SPI Flash: 4 MB
- Operating Voltage / Power Supply: 3.0V ~ 3.6V
- Average Working Current: 80 mA
- Minimum Current Powered by Power Supply: 500 mA
- Recommended Operating Temperature Range: –40 °C ~ +85 °C
Package Included:
- Espressif ESP32-WROVER-Ipex 4M 32Mbit Flash WI-FI Bluetooth Module
